EVT290S-BCS

Original price was: $85.00.Current price is: $56.00.

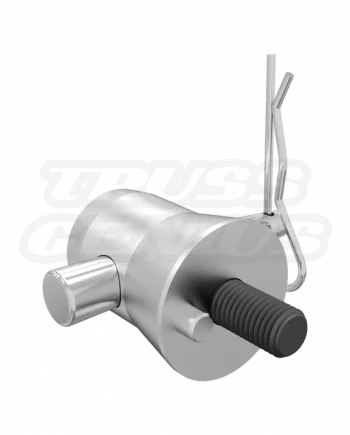

EVT290S-BCS — Universal Junction Connector Kit for Corner Blocks (Pack of 4)

Product Overview
Use Case: Attaches to Universal Junction Blocks to create additional connection points (sides)
Material Type: S45C Steel
Packaging: Sold in packs of 4 (four) connectors

Finish & Features
Surface: Zinc Plated Finish
Connection Type: Includes Couplers, Tapered Pins, and Cotter Pins
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss
Weight: 1.89 lb (0.85 kg) Total Pack Weight

In stock

SKU: EVT290S-BCS Category:

EVT290S Truss Systems Knowledge Center

F34 Truss Connector Kit, 4-Pack.
For EVT290S Universal Junction Blocks and 290 mm Square Truss Systems.

The EVT290S-BCS is a 4-pack connector kit for adding compatible connection points to an EVT290S universal junction block or corner block. Use this F34 truss connector kit when a planned 290 mm square truss layout requires additional compatible block-side connections for a 2-way corner, 3-way tee, 4-way cross, or multi-way truss junction configuration.

Identity and Core Facts

Model / SKUEVT290S-BCS
Product Type4-Pack Block-Side Connector Kit
Use WithEVT290S Universal Junction Blocks
System Profile11.41 in / 290 mm Square
ConnectionConical Connector Assembly
CompatibilityEVT290S, F34, and Matching 290 mm Square Truss
4-PackConnector Assemblies
4Half Couplers
4M12 Bolts
4Coupler Pins
4Cotter Pins / R-Clips

F34 Truss Connector Kit Overview

Connector Hardware for EVT290S Universal Junction Blocks.

The EVT290S-BCS is a four-pack of compatible block-side connector assemblies for EVT290S universal junction blocks and corner blocks. Use the kit to add compatible connection points where the complete truss layout calls for another side, branch, intersection, or multi-way configuration.

Add Block-Side Connections
Use the connector kit to equip compatible sides of an EVT290S universal block according to the required project configuration.
4 Connector Assemblies
The kit contains four matching assemblies for planned compatible connection points on a universal junction block or corner block.
F34 and 290 mm Compatibility
The kit is intended for compatible EVT290S, F34, and matching 290 mm square truss interfaces using the specified connection arrangement.

Universal Block Configurations

Configure Compatible Blocks for 2-Way Through 6-Way Truss Connections.

The EVT290S-BCS kit supports compatible block-side connection points as part of a larger configured truss system. Use the required quantity of compatible connector assemblies with an EVT290S universal junction block to create the connection arrangement specified by the project drawing.

2-Way Corner
Use appropriate compatible block-side hardware where the project calls for two connected truss directions.
3-Way Tee
Add a compatible branch connection where a project layout calls for a tee configuration from a universal block.
4-Way Cross
Equip the required compatible block sides for an intersecting truss layout specified by the completed system design.
5- or 6-Way Junction
Use additional compatible connector kits where the project calls for a multi-direction universal block configuration.
Configuration Clarification
This connector kit supplies hardware for compatible universal-block connection points. It does not independently establish a truss layout, approved junction configuration, capacity, support condition, or intended use for a completed system.

Applications

F34 Truss Connector Kits for Grids, Stages, Displays, and Technical Frameworks.

Use EVT290S-BCS connector kits as specified within compatible universal-block systems for lighting grids, AV truss frameworks, stage systems, exhibition structures, trade show displays, product demonstrations, and modular technical layouts.

Lighting and AV Grids
Add specified compatible connections to universal blocks used in planned lighting-grid, video, AV, projection, and technical-production frameworks.
Stage Systems
Use within approved stage, scenic, lighting, and production structures where a compatible multi-way block configuration is specified.
Exhibits and Displays
Support compatible universal-block configurations in exhibition structures, trade show displays, graphics frames, branded environments, and presentation layouts.
Reconfiguration Planning
Keep compatible connector hardware available when a completed truss system needs to be reconfigured between approved layouts.

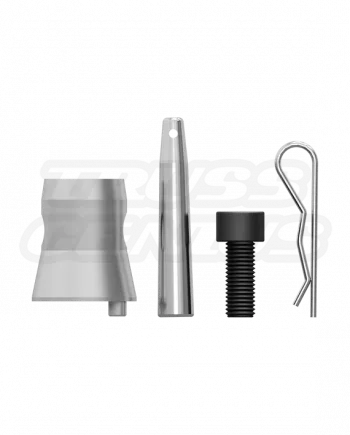

Included Hardware

What Ships in the EVT290S-BCS 4-Pack.

Each EVT290S-BCS pack contains four compatible block-side connector assemblies for use with an EVT290S universal junction block or corner block. Confirm the project hardware schedule and current manufacturer documentation before assembly.

4 Half Couplers
Four half couplers are included for the specified compatible block-side connection points.
4 M12 Bolts
Four M12 bolts are included for use with the supplied half-coupler connection assemblies.
4 Coupler Pins
Four coupler pins are included to secure compatible truss connections after mating components have been aligned and fully seated.
4 Cotter Pins / R-Clips
Four cotter pins or r-clips are included to retain the fully seated coupler pins. Install all required retention hardware before the system is moved, lifted, rigged, or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-BCS
BrandEvolve Truss
Product Type4-Pack Universal Block-Side Connector Kit
Use WithEVT290S Universal Junction Blocks / Corner Blocks

System Interface

Compatibility

System Profile11.41 in / 290 mm Square
Compatible SystemsEVT290S, F34, and Matching 290 mm Square Truss
Connection UseUniversal Block-Side Connection
Configuration Support2-Way Through 6-Way, by Completed System Design

Included Set

4 Connector Assemblies

Half Couplers4 Included
M12 Bolts4 Included
Coupler Pins4 Included
Cotter Pins / R-Clips4 Included

Planning Note

System Use

Standalone Load RatingNot Applicable
Straight-Run Load TableNot Applicable to This Hardware Kit
InstallationVerify Current Manufacturer Documentation
Completed-System ReviewRequired as Applicable

System Compatibility

Match the F34 Block Interface and Hardware Before Installation.

The EVT290S-BCS is intended for compatible EVT290S universal junction blocks or corner blocks and compatible F34 or matching 290 mm square truss systems using the specified connection arrangement. Similar appearance alone does not establish compatibility. Confirm block interface, coupler fit, bolt specification, pin seating, receiver spacing, component condition, and current product documentation before installation.

Use With Compatible Blocks
Use this kit only with compatible EVT290S universal junction block or corner block connection points identified for the specified hardware arrangement.
Verify Hardware Fit
Confirm half-coupler fit, M12 bolt specification, coupler-pin seating, and cotter-pin or r-clip retention before the completed system is moved or loaded.
Confirm Truss Interface
Verify the mating F34 or matching 290 mm square truss component has the correct receiver spacing and connection interface.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Installation and Inspection

Install the Correct Hardware. Then Verify Every Connection.

Use the current project drawing, compatible universal junction block, mating truss sections, supplied connector kit, and approved support or rigging plan. Work on a stable surface with access to inspect the block-side connection and every required pin-retention point.

01 — Inspect Components
Inspect the universal block, mating truss sections, half couplers, M12 bolts, coupler pins, and cotter pins or r-clips. Do not use damaged, worn, bent, or improperly fitting components.
02 — Install the Half Coupler
Position the supplied half coupler at the compatible universal-block connection point and install the M12 bolt as specified by current manufacturer documentation.
03 — Align the Mating Truss
Bring the compatible mating truss section into position evenly. Connection surfaces should close without excessive force or forced alignment.
04 — Pin and Retain
Install the coupler pin fully and fit the cotter pin or r-clip before the completed system is moved, lifted, rigged, or loaded.
If a Connection Does Not Close
Stop installation. Check the block interface, half-coupler fit, M12 bolt installation, pin fit, component condition, debris, receiver spacing, and alignment. Do not force components, modify hardware, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

System Responsibility

Connection Hardware Is Part of the Completed Truss System.

This 4-pack connector kit does not establish independent compatibility, capacity, span, load, wind, suspended-system, or freestanding-structure ratings. Determine suitability from the completed arrangement, including the universal junction block, compatible truss sections, supports, base plates, ballast or anchorage, connection hardware, applied loads, rigging, lighting, AV equipment, displays, signage, environmental conditions, and venue requirements.

Do not treat this hardware kit as proof of capacity or approval for a lighting grid, AV system, stage structure, exhibit framework, or other completed truss system.
Do not apply a straight-section load-span table to this connector kit. Load data for a completed truss run does not independently rate connection hardware, a junction block, or the larger assembled system.
Use only the specified compatible hardware arrangement and confirm every half coupler, M12 bolt, coupler pin, and cotter pin or r-clip is installed and retained as required.
Confirm the support, base plate, ballast, anchorage, and any required bracing for the complete configuration before the structure is erected or loaded.
For suspended, outdoor, load-bearing, public-facing, or otherwise regulated installations, confirm facility, venue, engineering, and required approvals before use.
Project Review Required
Licensed structural-engineer review is required for every truss system. This connector kit does not approve or rate any assembled F34 truss grid, universal-block configuration, lighting system, AV framework, stage structure, exhibit system, freestanding structure, suspended configuration, or public-facing installation. Verify current product drawings, manufacturer instructions, compatible hardware, and applicable engineering information before ordering, assembling, or using this product.
