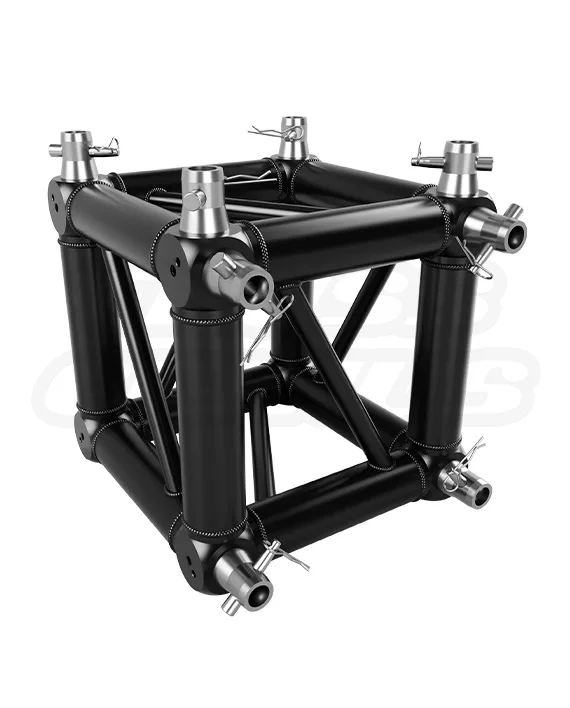

EVT290S-Block Black — 6-Way Universal Junction Box for 290mm Square Aluminum Truss (Matte Black)

Dimensions
Overall Length: 11.41 in (290 mm)
Overall Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.078 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System
Included: 2 Sets of Connecting Hardware (8 Couplers, 16 Pins, 16 R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 17 lb (7.71 kg)

In stock

SKU: EVT290S-Block-Black Category:

EVT290S Truss Systems Knowledge Center

6-Way Universal Junction Box.
For F34 Square Truss Grids, Lighting, AV, and Event Structures.

The EVT290S-Block Black is a matte-black 6-way universal junction box for compatible EVT290S, F34, and matching 290 mm square truss systems. Use this multi-way truss connector where a planned F34 square truss grid, lighting grid, AV truss grid, stage structure, exhibition framework, trade show display, brand activation, or other compatible layout requires a central connection point for multiple directions.

Identity and Core Facts

Model / SKUEVT290S-Block Black
Product Type6-Way Universal Junction Box
Truss Profile11.41 in / 290 mm Square
ConnectionConical Coupler System
MaterialAluminum Construction
FinishMatte Black Powder Coat
6-WayJunction Configuration
290 mmSquare Profile
8Half Couplers Included
8M12 Bolts Included
ConicalConnection System

6-Way Truss Junction Box Overview

A Multi-Way Truss Connector for F34 Square Truss Systems.

The EVT290S-Block Black is a 6-way universal junction box that supports multi-directional connection within compatible F34 and matching 290 mm square truss systems. Use it where a project requires a central point for planned grid layouts, intersecting truss runs, lighting and AV frameworks, stage structures, exhibition systems, and other compatible modular builds.

6-Way Connection Point
The universal junction box provides multiple connection directions for compatible square truss sections in a completed project-specific layout.
Multi-Directional Layouts
Use the block to develop planned truss grids, intersections, crossings, overhead frameworks, and multi-direction production or display structures.
Matte Black Finish
The matte-black powder coat supports installations where the connection component should remain visually subdued around lighting, video, LED content, graphics, displays, cameras, and branded event elements.

F34 Lighting and AV Truss Grids

F34 Truss Junction Blocks for Lighting, AV, and Technical Production Grids.

Use the EVT290S-Block Black as one component within a compatible, project-specific F34 lighting or AV truss grid. Its multi-way format can support planned intersections in stage lighting frameworks, AV truss grids, video structures, ceiling grids, camera and projection layouts, and other reviewed technical-production environments.

Lighting Grid Intersections
Create compatible connection points where planned lighting-grid runs meet within an approved stage, theater, studio, or event-production layout.
AV Frameworks
Use within reviewed AV grid systems for approved video, projection, lighting, audio, cable-management, and technical-presentation infrastructure.
Ceiling and Overhead Grids
Build compatible multi-direction connections for planned ceiling-grid and overhead technical layouts where the complete support condition has been reviewed.
Production Integration
Add a central junction point to compatible stage, scenic, lighting, video, and technical-production structures where the completed configuration has been reviewed.
Lighting and AV Use Clarification
Lighting, AV, ceiling-grid, stage, video, and technical-production references describe potential end-use environments for a completed compatible truss system. This individual junction box is not lighting-grid-rated, AV-rated, ceiling-rated, equipment-rated, or approved for any particular suspended system, venue, installation, or public-facing structure.

Exhibits, Displays and Brand Activations

6-Way F34 Truss Junction Blocks for Exhibits, Displays, and Brand Activations.

The EVT290S-Block Black can be incorporated into compatible, project-specific exhibition truss grids, trade show displays, brand activations, product launches, sponsor environments, retail pop-ups, media structures, and experiential marketing installations where a multi-way F34 truss junction is required.

Trade Show Displays
Build compatible grid and intersection points for planned booth structures, overhead identity, graphics, lighting, video, and product-presentation environments.
Brand Activations
Use within planned activation structures for sponsor experiences, product reveals, interactive displays, signage, photo moments, and promotional environments.
Exhibition Structures
Create compatible multi-direction connection points around exhibition architecture, display portals, media environments, and technical presentation frameworks.
Retail Pop-Ups
Build planned frameworks for temporary retail, sponsorship events, product demonstrations, branded customer experiences, and display systems.

Applications

A 6-Way Junction for F34 Grid Layouts and Modular Truss Structures.

Use the EVT290S-Block Black wherever a compatible F34 or 290 mm square truss layout requires a multi-way central connection point. The completed structure determines required straight sections, supports, base plates, rigging, loads, anchorage, accessories, venue requirements, and project approvals.

Stage and Live Production
Build compatible junctions for reviewed lighting grids, AV systems, video structures, scenic frames, and technical-presentation infrastructure.
Exhibits and Displays
Use within planned trade show displays, exhibit structures, lighting grids, graphics frames, video, and branded presentation environments.
Modular Truss Grids
Add a 6-way connection point to a compatible F34 square truss grid where the complete configuration has been reviewed.
Technical Environments
Create planned structures for studios, theaters, event venues, product demonstrations, media environments, and compatible technical installations.

Universal Block Construction

A 6-Way Junction Block with Compatible Conical Connections.

The EVT290S-Block Black is designed as a central multi-way component in the EVT290S family. Its compatible 290 mm square truss interface, matte-black finish, and connection hardware support repeatable assembly with compatible F34 square truss sections where the project design calls for a 6-way junction.

Universal Multi-Way Format
The six connection directions support planned truss intersections and multi-direction framework layouts using compatible straight sections.
290 mm Square Interface
The block is intended for compatible 290 mm square truss components with matching receiver spacing and conical connection interfaces.
Matte Black Powder Coat
The matte-black finish supports visually discreet technical structures around displays, screens, lighting, video, signage, and sponsor content.
Connection Hardware Included
The supplied half couplers, M12 bolts, coupler pins, and r-clips provide the specified hardware set for compatible truss connections.

Included Connection Hardware

What Ships with the EVT290S-Block Black.

This 6-way universal junction box ships with the connection hardware specified for compatible truss assembly. Confirm the project component schedule before assembly; a finished F34 lighting grid, AV structure, exhibit system, or event framework may also require straight sections, corners, base plates, clamps, rigging hardware, ballast or anchorage, and other project-specific items.

8 Half Couplers
Eight half couplers are included for the specified compatible truss connection points on the universal junction box.
8 M12 Bolts
Eight M12 bolts are included for use with the supplied half-coupler connection set.
8 Coupler Pins
Eight coupler pins are included to secure compatible connections after the truss components have been aligned and fully seated.
8 R-Clips
Eight r-clips are included to retain each fully seated coupler pin. Install all pins and r-clips before the completed structure is moved, lifted, rigged, or loaded.

Technical Reference

Product Specifications.

Identification

Product Details

Model / SKUEVT290S-Block Black
BrandEvolve Truss
Product TypeMatte Black 6-Way Universal Junction Box
CertificationTUV Certified

System Interface

Truss Compatibility

Junction Configuration6-Way Universal
Truss Profile11.41 in / 290 mm Square
Compatible SystemsEVT290S, F34, and Matching 290 mm Square Truss
Connection TypeConical Coupler System

Construction

Material and Finish

MaterialAluminum Construction
FinishMatte Black Powder Coat
Connection Directions6
Straight-Run Load TableNot Applicable to This Junction Component

Connection Set

Included Hardware

Included Half Couplers8 Half Couplers
Included M12 Bolts8 M12 Bolts
Included Coupler Pins8 Coupler Pins
Included R-Clips8 R-Clips

System Compatibility

Match the F34 Truss Profile and Connection Before You Build.

The EVT290S-Block Black is intended for compatible EVT290S, F34, and matching 290 mm square truss systems using conical connections. Similar appearance alone does not establish compatibility. Confirm receiver spacing, coupler fit, chord spacing, connection alignment, hardware use, and applicable system documentation before assembly.

Receiver Spacing
Each connection position should align without pulling, spreading, or forcing the junction box and mating truss faces together.
Coupler and Hardware Fit
Use the supplied hardware only as specified and confirm that all compatible connection parts seat correctly before the structure is moved or loaded.
50 mm Clamp Fit
Compatible 1.96 in / 50 mm main chords accept compatible clamps for approved lighting, AV, signage, graphics, video, display, and accessory attachment.
Mixed Components
When components come from different sources, confirm physical fit and applicable engineering information before using them together.

Connection and Inspection

Confirm Fit First. Then Assemble, Pin, and Retain.

Once compatible receiver spacing and specified hardware are confirmed, assemble each connection using the current project drawing, compatible mating components, supplied hardware, and approved support or rigging plan. Work on a stable surface with access to inspect every connection position.

01 — Inspect Components
Inspect the junction box, mating truss sections, half couplers, M12 bolts, coupler pins, and r-clips. Do not use bent, cracked, worn, or damaged components.
02 — Position Hardware
Install the supplied half couplers and M12 bolts as specified for the compatible connection points. Confirm that components are seated correctly.
03 — Align Mating Sections
Bring compatible truss sections into position evenly. Connection surfaces should close without excessive force or forced alignment.
04 — Pin and Retain
After alignment is confirmed, install each coupler pin fully and fit an r-clip to every pin before moving, lifting, rigging, or loading the structure.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, half-coupler fit, bolt installation, hardware condition, damage, debris, and alignment. Do not force the truss, modify components, or drive a pin against resistance. Resolve the cause before the structure is moved or loaded.

System Responsibility

Capacity Comes from the Completed Configuration.

This 6-way junction box does not establish an independent span, load, wind, suspended-system, or freestanding-structure rating. Determine capacity from the complete configuration, including compatible straight sections, corners, supports, base plates, ballast or anchorage, span, orientation, connection hardware, applied loads, lighting, AV equipment, displays, signage, environmental conditions, and venue requirements.

Do not treat this junction box as proof of capacity for a lighting grid, AV grid, stage structure, exhibit framework, brand activation, or other completed truss system.
Do not apply a straight-section load-span table to this junction box. Load data for a completed truss run does not independently rate a multi-way junction or the larger assembled system.
Confirm the support, base plate, ballast, anchorage, and any required bracing for the complete configuration before the structure is erected or loaded.
Assess outdoor exposure, wind, banners, display panels, suspended equipment, and other environmental forces as part of the complete project review.
Inspect every half coupler, M12 bolt, coupler pin, r-clip, clamp, base connection, ballast point, sling, shackle, safety cable, and attachment point before use. Replace damaged, worn, or improperly fitting parts.
For lighting grids, AV systems, stages, exhibition structures, brand activations, suspended configurations, public-facing installations, or other regulated uses, confirm facility, venue, rigging, engineering, and required approvals before use.
Project Review Required
Licensed structural-engineer review is required for every truss system. This component does not approve or rate any assembled lighting grid, AV truss grid, stage structure, exhibit system, brand activation, freestanding structure, suspended configuration, or public-facing installation. Verify current product drawings, manufacturer instructions, compatible connection hardware, and applicable engineering information before ordering, assembling, or using this product.
