EVT290S-BP30RS 30-Inch Round Steel Base Plate for Square Truss
Round Steel Base Plate for Square Truss with Handle
EVT290S-BP30RS with Optional Flange Attachment

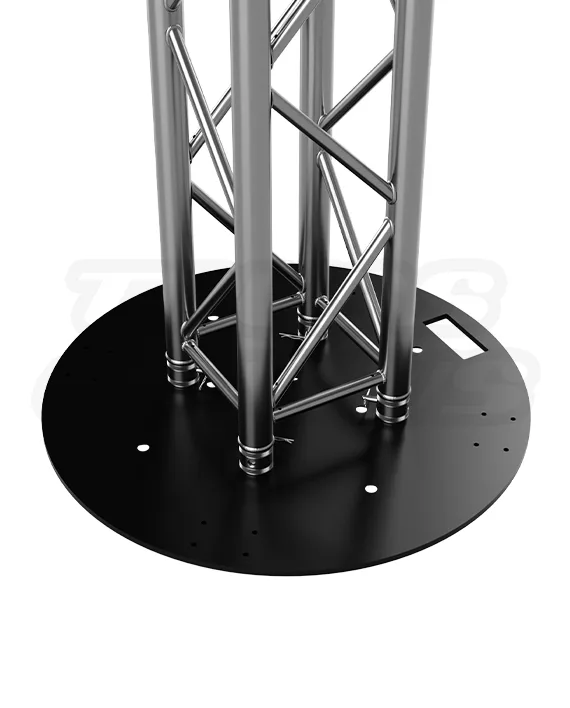

30-Inch Round Steel Truss Base Plate for Bolt Truss
EVT290S-BP30RS 30-Inch Round Steel Base Plate for Square Truss
Round Steel Base Plate for Square Truss with Handle
EVT290S-BP30RS with Optional Flange Attachment
30-Inch Round Steel Truss Base Plate for Bolt Truss

EVT290S-BP30RS

Original price was: $789.00.Current price is: $599.00.

Dimensions

Plate Diameter: 30 in (762 mm)
Compatibility: Fits EVT290S, EVT12S, and EVT20S Square Aluminum Truss series

Construction

Material: Q235-grade steel
Thickness: 9mm
Finish: Matte black powder coat
Optional Flange: For 1.5″ Schedule 40 pipe
Integrated Handle: Laser-cut carry handle built into the plate

Included Hardware

Connector System: Includes conical coupler, pin, and r-clip
Weight: 71.5 lb (32.43 kg)

In stock

SKU: EVT290S-BP30RS Category:

Steel Base Plate Knowledge Center

A 30-Inch Round Steel Base.
Built for Stable, Professional Truss Support.

The EVT290S-BP30RS is a 30-inch round stabilizing base plate manufactured from Q235-grade steel. Designed for compatible square aluminum truss systems, it helps distribute loads at floor level while providing a cleaner pedestrian footprint than a traditional square plate.

Product Facts

ModelEVT290S-BP30RS
Plate ShapeRound
Diameter30 in / 762 mm
Thickness9 mm
MaterialQ235 Steel
Weight71.5 lb / 32.43 kg
30 inRound Diameter
9 mmPlate Thickness
71.5 lbBase Weight
Q235Steel Grade
3 SeriesTruss Compatibility

Product Overview

Stable Ground Support with a Pedestrian-Friendly Round Profile.

The EVT290S-BP30RS is designed for vertical truss structures used in exhibits, staging, studios, corporate events, and permanent installations.

Round 30-Inch Footprint
Eliminates protruding square corners and improves walkability around the support.
Heavy Steel Construction
Uses 9 mm Q235-grade steel and weighs 71.5 lb for substantial floor-level mass.
Integrated Carry Handle
A laser-cut handle is built directly into the plate for lifting and placement.
Matte Black Finish
Provides a durable, professional appearance for event and installation environments.

Common Applications

Designed for Vertical Truss and Floor-Supported Structures.

01
Trade Show Displays
Supports vertical truss towers and branded exhibit structures.
02
Lighting Totems
Provides a weighted floor base for compatible vertical lighting truss.
03
Corporate Events
Useful for signage, displays, scenic elements, and temporary support structures.
04
Studios and Venues
Suitable for controlled indoor production and permanent-installation environments.
05
Live Event Staging
Supports compatible floor-mounted truss elements in engineered event layouts.

Who It’s For

Built for Professional Event, Exhibit, and Installation Teams.

Event Production Companies
For floor-supported truss structures and lighting totems.
Exhibit Builders
For trade-show towers, signage supports, and modular displays.
Rental Companies
For reusable heavy steel base-plate inventory.
AV Integrators
For studio, venue, and permanent display installations.
Lighting Designers
For compatible vertical truss and floor-mounted fixture structures.
Engineers and Designers
For reviewed systems requiring known plate dimensions and material specifications.

Product Features

Heavy-Duty Construction. Clean Round Geometry.

30-Inch Round Profile
Reduces sharp corners at pedestrian level compared with a square base.
9 mm Steel Plate
Provides a solid structural foundation for compatible floor-supported truss.
Laser-Cut Handle
Integrated directly into the plate for easier transport and placement.
Conical Hardware Included
Includes a conical coupler, tapered pin, and R-clip.
Optional Pipe Flange
Available for 1.5-inch Schedule 40 pipe applications.
Matte Black Powder Coat
Provides a durable, scratch-resistant professional finish.

Included Components

Base Plate and Conical Connecting Hardware.

1 Round Steel Base Plate
30-inch-diameter, 9 mm Q235 steel plate with integrated handle.
1 Conical Coupler
Connector for compatible conical truss systems.
1 Tapered Pin
Secures the coupler within the matching truss connection.
1 R-Clip
Retains the tapered pin after installation.

Technical Reference

Complete Product Specifications

Identification

Product Details

ModelEVT290S-BP30RS
SKUEVT290S-BP30RS
BrandEvolve Truss
Product TypeRound Steel Stabilizing Base Plate

Dimensions and Weight

Overall Size

Diameter30 in / 762 mm
Thickness9 mm / 0.35 in
Weight71.5 lb / 32.43 kg
Plate ShapeRound

Construction

Material and Finish

MaterialQ235-Grade Steel
FinishMatte Black Powder Coat
Carry HandleIntegrated Laser-Cut Handle
Optional AttachmentFlange for 1.5-Inch Schedule 40 Pipe

Connection and Compatibility

System Fit

Connection TypeConical Coupler, Tapered Pin and R-Clip
Included Hardware1 Complete Conical Connection Set
Truss CompatibilityEVT290S, EVT12S, EVT20S, F34 and Standard 290 mm Square Truss Systems
CAD ResourcesSTEP and DWG Files Available Upon Request

Truss Compatibility

Designed for EVT290S, EVT12S, EVT20S, F34, and Standard 290 mm Square Truss Systems.

Use the included conical connector with the matching truss connection. Confirm system geometry, loading, ballast, and engineering before installation.

EVT290S
Compatible with the EVT290S 290 mm square conical truss series.
EVT12S
Listed for use with compatible EVT12S square aluminum truss configurations.
EVT20S
Listed for use with compatible EVT20S square aluminum truss configurations.
F34 and Standard 290 mm Systems
Compatible with matching F34 and standard 290 mm square truss connection geometry.

Assembly Overview

Position the Base. Connect, Secure, and Verify Stability.

01 — Inspect the Plate
Check the steel plate, handle, finish, connector, pin, and R-clip for damage.
02 — Position on a Level Surface
Place the plate on a clean, stable, load-bearing floor or platform.
03 — Install the Coupler
Confirm the conical coupler is correctly seated in the plate connection.
04 — Connect the Truss
Lower the compatible truss section onto the connector without forcing alignment.
05 — Install Pin and R-Clip
Fully seat the tapered pin and secure it with the R-clip.
06 — Verify the Complete Structure
Check plumb, stability, ballast, attached loads, and clearances before use.

Safety and Engineering

Base Weight Alone Does Not Define the Structure’s Allowable Capacity.

Final stability depends on truss height, attached loads, load direction, ballast, floor conditions, structure geometry, and project-specific engineering.

Do not exceed the allowable capacity of the complete base, truss, connection, and support system.
Do not suspend loads from the truss connection point on the base plate.
Inspect the plate and all connection hardware before every use.
Remove damaged or defective components from service and clearly label them DO NOT USE.
Do not drop, drag, or stack base plates without suitable protection.
Ensure every coupler, tapered pin, and R-clip is correctly installed before use.
All structures require review by a qualified professional engineer.

Product Questions

Frequently Asked Questions

Why choose a round base plate?

The round profile eliminates protruding square corners, helping improve pedestrian flow and reduce sharp-corner trip hazards around the structure.

What truss series are compatible?

The product is listed for EVT290S, EVT12S, and EVT20S square aluminum truss systems.

What hardware is included?

One conical coupler, tapered pin, and R-clip are included.

Does it have a carry handle?

Yes. A laser-cut carry handle is integrated directly into the steel plate.

Is a pipe flange available?

Yes. An optional flange attachment is available for 1.5-inch Schedule 40 pipe.

Are CAD files available?

STEP and DWG files are available upon request.

Need the correct base plate for your truss structure?

Contact us for compatibility checks, ballast planning, optional flange details, CAD files, engineering coordination, and quantity pricing.
