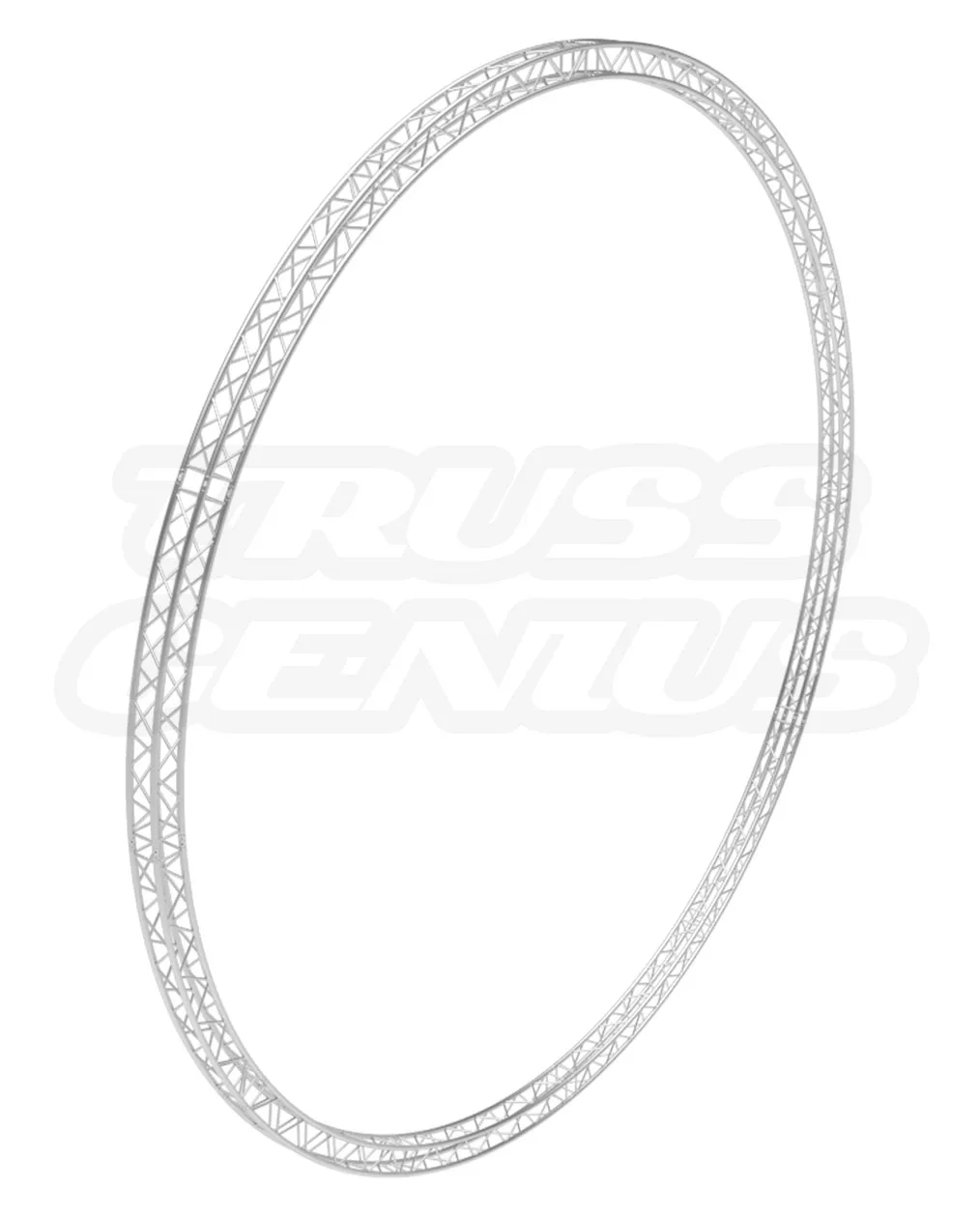

EVT290S C1000 curved truss segment for building a ten meter circular F34 (290 mm) truss system

EVT290S-C1000 | 32.80ft Truss Circle

Original price was: $13,439.00.Current price is: $8,959.00.

EVT290S-C1000 — 10m (32.80 ft) Diameter Square Aluminum Truss Circle (30 Degree Arc)

Dimensions
Circle Diameter: 32.80 ft (10 m) Outer Diameter
Inside Diameter: 30.90 ft (9.42 m)
Truss Profile: 11.41 in (290 mm) Square
System Configuration: Composed of 12x 30 Degree Arc Segments

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 420 lb (190.5 kg)

In stock

SKU: EVT290S-C1000 Category:

EVT290S System Knowledge Center

A 32.80-Foot Circular Truss.
A 10-Meter Structural Circle for Large Technical and Display Environments.

The EVT290S-C1000 is a 32.80 ft / 10.0 m square aluminum truss circle built from twelve 30-degree arc segments. Its 10.0 m outer diameter and 30.90 ft / 9.42 m inner opening provide a large circular structural perimeter for technical production, motion capture, vehicle imaging, drone systems, immersive environments, lighting, display, and architectural installations. It uses the EVT290S 290 mm square-truss profile, EN AW-6082 T6 aluminum alloy construction, and a brushed aluminum finish.

Product Facts

ModelEVT290S-C1000
Outer Diameter32.80 ft / 10.0 m
Inside Diameter30.90 ft / 9.42 m
Configuration12 × 30° Arc Segments
MaterialEN AW-6082 T6 Aluminum
Weight420 lb / 190.5 kg
32.80 ftOuter Diameter
30.90 ftInside Diameter
290 mmSquare Profile
12 Pieces30-Degree Segments
420 lbSystem Weight

Product Overview

Twelve Matching Arcs Form One Complete 10-Meter Circle.

The EVT290S-C1000 creates a complete 10.0 m diameter circle using twelve identical 30-degree arc segments and a conical truss connection system.

Twelve-Segment Circle
Twelve matching 30-degree arc sections form one complete 360-degree circle.
10.0 m Outer Diameter
At 32.80 ft / 10.0 m, the circle creates a broad structural perimeter around a large central working or display area.
9.42 m Inner Opening
The 30.90 ft / 9.42 m inner diameter provides substantial central clearance for planned layouts.
EVT290S Construction
Built from a 290 mm square-truss profile with 50 mm main chords and 20 mm diagonal bracing.

Common Applications

A 10-Meter Perimeter for Wide-Area Capture, Display, and Technical Systems.

The EVT290S-C1000 provides a repeatable 10.0 m circular structural perimeter with distributed mounting positions around a 9.42 m inner opening. This format can support equipment, cameras, sensors, lighting, displays, or scenic elements positioned around a large central subject, vehicle, working zone, or interactive environment.

01
Large-Volume Motion Capture
Create a larger circular perimeter for multi-person performance capture, tracking-camera placement, lighting, and calibration infrastructure.
02
Vehicle and Product Imaging
Frame vehicles, industrial equipment, prototypes, and large products with planned lighting, camera, sensor, or display positions.
03
XR and Simulation Environments
Provide a wide equipment perimeter for tracking, cameras, lighting, displays, and technical infrastructure around an immersive working area.
04
Drone and Autonomous Systems
Define a larger technical perimeter for aerial-system demonstrations, flight-camera setups, sensor layouts, and controlled operational environments.
05
Large-Scale Lighting and Video
Support distributed lighting and video equipment around a broad circular frame when permitted by the approved rigging plan.
06
Architectural and Exhibit Structures
Create a large overhead ring for exhibits, architectural environments, installations, and branded display spaces.

Who It’s For

For Teams Building Large-Diameter Technical Working Environments.

The EVT290S-C1000 is intended for trained teams that need a 32.80 ft / 10.0 m circular truss system around a large central operational, capture, display, or simulation zone. Its 30.90 ft / 9.42 m inner opening supports broader camera standoff, wider sensor geometry, larger subject clearance, and multi-position infrastructure layouts that need more room inside the ring.

Volumetric Capture and Performance Teams
For multi-person movement, full-body tracking, performance capture, and camera layouts arranged around a wider active area.
Vehicle, Robotics, and Industrial Imaging Teams
For vehicle-scale shoots, robotics demonstrations, industrial-product imaging, prototype evaluation, and equipment-centered layouts.
Simulation, Training, and XR Integration Teams
For immersive technical spaces requiring additional clearance between people, props, simulation equipment, and a perimeter of tracking or lighting hardware.
Aerial and Autonomous Systems Teams
For planned drone and autonomous-system demonstrations requiring a broad, defined perimeter for cameras, sensors, displays, or operational support equipment.
Exhibit and Large-Object Display Teams
For large products, equipment, vehicles, installations, and display subjects that require an overhead perimeter with substantial central clearance.
Engineering and Technical-Rigging Teams
For teams coordinating multi-point support, distributed loads, installation sequencing, and project-specific engineering review.

Included Components

A Complete Twelve-Piece Circle with a Conical Connection System.

The EVT290S-C1000 is configured as twelve 30-degree arc segments. The product source confirms a conical connection system using couplers, tapered pins, and R-clips. Confirm exact shipped hardware quantities against the sales order and packing documentation before installation.

12 × 30-Degree Arc Segments
Twelve matching curved EVT290S truss sections create the complete 360-degree circle.
Conical Connection System
The product uses conical couplers, tapered pins, and R-clips to connect adjoining arc segments.
48 Couplers — If Four Per Arc
A four-coupler-per-arc configuration would require 48 couplers for the 12-arc circle; verify the delivered quantity against packing documentation.
96 Pins and 96 R-Clips — If Eight Per Arc
An eight-pin and eight-R-clip-per-arc configuration would require 96 of each; verify the delivered quantity against packing documentation.
All twelve arc joints are structural connection points.

Inspect and secure every active chord connection at every joint before lifting or loading the completed circle. Do not treat the ring as assembled until all required couplers, pins, and R-clips are installed and retained.

Technical Reference

EVT290S-C1000 Specifications

Circle dimensions, segment configuration, tubing sizes, connection system, finish, certification, compatibility, and documented weight.

Identification

Product Details

Model / SKUEVT290S-C1000
BrandEvolve Truss
Product TypeSquare Aluminum Truss Circle

Circle Geometry

Dimensions

Outer Diameter32.80 ft / 10.0 m
Inside Diameter30.90 ft / 9.42 m
Truss Profile11.41 in / 290 mm Square
Configuration12 × 30-Degree Arc Segments
Weight420 lb / 190.5 kg

Tubing and Material

Construction

MaterialEN AW-6082 T6 Aluminum
Main Chord Tubing50 mm OD / 2 mm Wall
Diagonal Brace Tubing20 mm OD / 2 mm Wall
FinishBrushed Aluminum
CertificationTUV Certified

Connection and Compatibility

System Fit

Connection TypeConical Connection System
Connection HardwareCouplers, Tapered Pins, and R-Clips
CompatibilityF34, EVT290S, and Standard 290 mm Square Truss
Clamp Compatibility50 mm / 2 in Clamps

System Compatibility

Fits F34, EVT290S, and Standard 290 mm Square Truss Systems.

The product source identifies compatibility with F34, EVT290S, and standard 290 mm square truss systems using compatible conical connector geometry.

EVT290S Compatibility
Compatible with the EVT290S square aluminum truss series.
F34 Compatibility
The source identifies an F34-compatible design for standard 290 mm square-truss straights and corners.
50 mm Clamp Compatibility
The source identifies compatibility with standard 50 mm / 2 in clamps for moving heads and fixtures.
Verify Before Mixing Brands
Test-fit mixed-brand connections on the ground before lifting and verify compatibility for the specific components in use.

Assembly Overview

Build the Circle on a Flat Surface. Then Lift Using an Engineered Plan.

Lay out all twelve segments in their final circular orientation before installing the conical hardware. Confirm the 32.80 ft / 10.0 m outer diameter matches the approved design before assembly.

01 — Inspect Every Segment
Check chords, braces, welds, receivers, couplers, pins, and clips for damage or deformation.
02 — Lay Out the Circle
Place all twelve 30-degree sections on a clean, level surface in their final orientation.
03 — Install Couplers
Insert compatible conical couplers into the mating chord ends according to the approved assembly plan.
04 — Join Adjacent Segments
Bring each segment together without forcing chord receivers out of alignment.
05 — Install Pins and R-Clips
Drive tapered pins fully and secure each one with its retaining clip.
06 — Final Inspection
Confirm the circle is round, every joint is seated, and all connection hardware is retained before rigging.

Safety and Rigging

A 10-Meter Circle Requires a Carefully Calculated Rigging Plan.

Circular truss loads must be calculated differently than straight spans. Consult the load tables for this specific diameter. A 10-meter circle requires a carefully calculated plan with multiple, evenly spaced pick points to help prevent frame warping.

Never exceed the rated load capacity of the completed circle.
Inspect all welds and conical receivers for stress cracks before assembly.
Ensure all couplers, tapered pins, and R-clips are fully engaged and secured.
Distribute hanging points evenly around the ring to help prevent frame warping.
Do not place concentrated loads at a truss connection unless the approved engineering permits it.
Use rated clamps, slings, shackles, hoists, and support hardware selected for the actual load case.
All overhead structures must be reviewed by a qualified rigger or engineer.
Assembly and lifting must be performed by trained personnel using an approved plan.

Product Questions

Frequently Asked Questions

How large is the EVT290S-C1000 circle?

Its outer diameter is 32.80 ft / 10.0 m, and its inside diameter is 30.90 ft / 9.42 m.

How many sections make the complete circle?

Twelve 30-degree arc segments form the complete 360-degree circle.

How much does the complete circle weigh?

The product source documents a weight of 420 lb / 190.5 kg.

What connection hardware does it use?

It uses a conical connection system with couplers, tapered pins, and R-clips. Verify exact shipped hardware quantities against the sales order or packing documentation.

What truss systems are compatible?

The source identifies F34, EVT290S, and standard 290 mm square truss compatibility, plus 50 mm / 2 in clamp compatibility for moving heads and fixtures.

Can the circle be suspended?

A suspended configuration requires a diameter-specific load review and a carefully calculated plan with multiple, evenly spaced pick points. A qualified rigger or engineer must review the complete overhead structure.

Planning a 10-meter circular truss system for a technical or display environment?

Contact us for compatibility checks, capture and tracking layout support, lighting and camera placement, clamp selection, rigging guidance, load-table review, engineering coordination, CAD resources, custom finishes, and freight planning.

Contact UsRequest a Quote
