EVT290S-C150 4.92-Foot Circular Square Truss - Durable and Versatile Truss Component

EVT290S-C150 | 4.92ft Truss Circle

Original price was: $2,841.00.Current price is: $1,894.00.

EVT290S-C150 — 1.5m (4.92 ft) Diameter Square Aluminum Truss Circle (180 Degree Arc)

Dimensions
Circle Diameter: 4.92 ft (1.5 m) Outer Diameter
Inside Diameter: 3.02 ft (0.92 m)
Truss Profile: 11.41 in (290 mm) Square
System Configuration: Composed of 2x 180 Degree Arc Segments

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 58 lb (26.3 kg)

In stock

SKU: EVT290S-C150 Category:

EVT290S Circular Truss Knowledge Center

EVT290S-C150 4.92-Foot Truss Circle.
A Two-Piece Circular Truss Assembly for F34 and 290 mm Square Truss Systems.

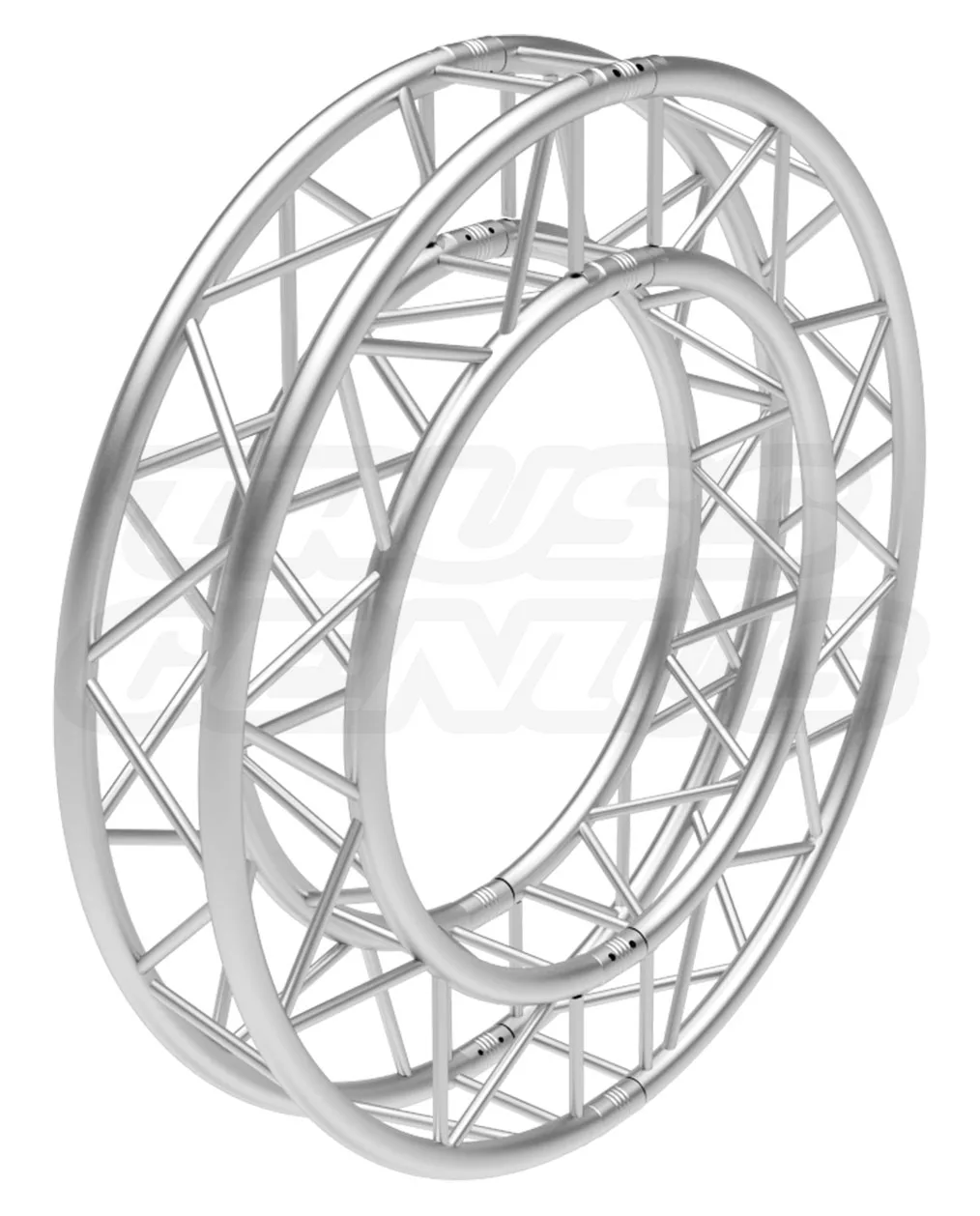

The EVT290S-C150 is a complete circular aluminum truss assembly with a 1.5 m / 4.92 ft outside diameter. Two matching 180-degree arc sections join to form one continuous 360-degree truss circle. The C150 provides a defined circular truss assembly for lighting, display, scenic, branded, studio, and technical installations where the approved truss system calls for a circular form.

Product Facts

Model / SKUEVT290S-C150
Product TypeComplete Truss Circle
Outer Diameter1.5 m / 4.92 ft
Inside Diameter0.92 m / 3.02 ft
Configuration2 × 180° Arc Sections
Component Weight58 lb / 26.3 kg
4.92 ftOuter Diameter
360°Completed Circle
2 PiecesArc Sections
58 lbComplete Weight
2 SetsHardware Included

Product Overview

A Complete Circular Truss Assembly Built from Two Matching Arc Sections.

Unlike a straight truss section or a fixed-angle corner, the EVT290S-C150 is supplied as a complete truss circle. Two matching 180-degree sections join at two arc joints to form a 1.5 m / 4.92 ft outside-diameter ring. Select this assembly where the approved truss system requires a circular truss form rather than a straight or angular connection.

Complete 360-Degree Circle
Two matching semicircular sections join to form one continuous circular truss assembly.
Compact 1.5 m Diameter
The completed circle has a 1.5 m / 4.92 ft outside diameter and a 0.92 m / 3.02 ft inside diameter.
Two-Piece Construction
Two 180-degree arc sections support transportation, storage, handling, and on-site connection before the circle is used.
290 mm Square Truss Profile
The circular assembly uses the four-chord 290 mm square-truss profile found in the EVT290S and F34 product families.

Common Applications

Add a Circular Truss Form to Lighting, Display, Scenic, and Technical Installations.

The EVT290S-C150 provides a continuous circular perimeter around a central area. Select it when the approved truss system calls for equipment, scenic elements, branding, lighting, displays, cameras, sensors, or other technical components to be arranged around a circular form. The complete approved truss system determines support locations, hardware, load placement, attachment methods, and required engineering review.

01
Circular Lighting Features
Arrange lighting fixtures around the completed circle where the approved truss system specifies fixture positions, clamps, support points, and load distribution.
02
Trade Show Displays
Create a distinct circular overhead, display, or branded feature within an exhibit system.
03
Scenic Installations
Use as part of a specified ring-shaped scenic form, portal, halo, or other circular visual feature.
04
Studio and Production Environments
Provide a circular truss assembly for approved camera, sensor, practical-lighting, display, or technical-equipment installations.
05
Retail and Branded Environments
Define a product zone, activation area, display location, or branded focal point with a circular truss feature.
06
Custom Technical Structures
Use where a specified truss system requires equipment to be positioned around a common central area.

Circle Configuration

Two 180-Degree Arc Sections Form the Complete Truss Circle.

The EVT290S-C150 is supplied as two matching semicircular arc sections. The arc ends connect at two separate joints to close the circle. Both joints are required connection points in the completed truss assembly and must be fully aligned, secured, and inspected before the circle is lifted, supported, or loaded.

2 × 180-Degree Arc Sections
The matching semicircular sections create the full 360-degree truss circle when both arc joints are connected.
Two Arc Joints
The completed circle has two connection interfaces, each requiring the specified conical connection hardware.
Conical Couplers
Conical couplers align and mechanically join the corresponding chord receivers at each arc joint.
Tapered Pins and R-Clips
Tapered pins secure the couplers and R-clips retain the installed pins at every required chord connection.
Both Arc Joints Are Structural Connection Points
Inspect and secure every chord connection at both arc joints before lifting or loading the completed circle. The truss circle should not be treated as fully assembled until all required conical couplers, tapered pins, and R-clips are installed and retained.

Included Connection Hardware

Two Hardware Sets Included with the Complete Truss Circle.

The EVT290S-C150 includes two connecting-hardware sets for assembly of the complete truss circle. Together, the included hardware consists of eight conical couplers, sixteen tapered pins, and sixteen R-clips. Confirm the current product package, approved truss system, and connection schedule before assembly.

Two Hardware Sets
The complete truss circle includes two connecting-hardware sets for assembly of its two arc sections.
8 Conical Couplers
The two included hardware sets contain a total of eight conical couplers.
16 Tapered Pins
The two included hardware sets contain a total of sixteen tapered pins.
16 R-Clips
The two included hardware sets contain a total of sixteen R-clips. Confirm that every installed tapered pin has its required R-clip before the truss circle is lifted, moved, or loaded.

Technical Reference

EVT290S-C150 Specifications.

The following values identify the C150 truss circle dimensions, section configuration, material, tubing, finish, connection system, certification, system fit, and nominal weight. Confirm current manufacturer drawings, instructions, connection hardware, component condition, and technical documentation before ordering or assembling a truss system.

Circle Dimensions

Product Details

Model / SKUEVT290S-C150
Product TypeComplete Circular Truss Assembly
Outer Diameter1.5 m / 4.92 ft
Inside Diameter0.92 m / 3.02 ft
Truss Profile290 mm / 11.41 in Square
Configuration2 × 180-Degree Arc Sections

Construction

Tubing and Material

MaterialEN AW-6082 T6 Aluminum
Main Tubing50 mm OD / 2 mm Wall
Brace Tubing20 mm OD / 2 mm Wall
FinishBrushed Aluminum
Complete Weight58 lb / 26.3 kg

Connection System

Hardware and Certification

Connection TypeConical Connection System
Included Hardware8 Conical Couplers, 16 Tapered Pins, 16 R-Clips
CertificationTUV Certified

System Fit

F34 and 290 mm Square Truss

Primary SystemEVT290S
Listed System FitF34 and Standard 290 mm Square Systems
Main Chord Diameter50 mm
Completed Form360-Degree Truss Circle

System Compatibility

EVT290S, F34, and 290 mm Square Truss Systems.

The EVT290S-C150 follows the 290 mm square-truss profile and conical connection format associated with the EVT290S and F34 product families. System fit requires more than matching nominal outside dimensions. Confirm chord spacing, receiver dimensions, conical connector details, component orientation, connection hardware, support arrangement, and applicable structural data before combining separately sourced components.

EVT290S System
The C150 is designed around the EVT290S square-truss profile and conical connection format.
F34 System
The product is intended for F34-style 290 mm square-truss systems with matching connection details.
Other 290 mm Systems
Other 290 mm square conical systems should be dimensionally verified before components are combined.
Circle-Specific Review
Review the completed truss circle according to its actual support arrangement, attachment points, and load locations rather than using straight-section assumptions.
Physical Fit Does Not Establish Structural Equivalence
A component may physically connect to another 290 mm truss component without the complete assembly having equivalent structural properties. Verify connector dimensions, tubing configuration, material, connection condition, system load data, and engineering requirements before combining components from different systems.

Assembly Overview

Join the Two Semicircular Sections Before the Completed Circle Is Rigged or Loaded.

The two-piece design supports transportation and handling, but both arc sections must be correctly aligned before the circle functions as the intended completed assembly. Maintain alignment across all four chords at each arc joint and verify every required connection before lifting, supporting, rigging, or loading the truss circle.

01 — Inspect Both Arc Sections
Check chords, bracing, welds, receivers, conical couplers, tapered pins, and R-clips for damage or abnormal wear before joining the sections.
02 — Position the Semicircles
Place the two 180-degree arc sections in their intended orientation and align the corresponding ends.
03 — Install Conical Couplers
Insert the required conical couplers at the mating chord receivers for both arc joints.
04 — Close Both Arc Joints
Bring both interfaces together gradually while keeping all four chord connections aligned at each joint.
05 — Secure Hardware
Fully install the tapered pins and R-clips at every required chord connection across both arc joints.
06 — Verify Before Use
Confirm circular alignment, connection security, support arrangement, and the complete assembled truss circle before lifting, supporting, rigging, or loading.

Safety and Engineering

A Circular Truss Assembly Is Not a Standalone Load, Span, or Suspension Rating.

The structural performance of the EVT290S-C150 depends on how the completed circle is supported and loaded. Support from multiple points differs from support at one or two locations, and equipment placed around the circle can produce uneven load conditions. Determine suitability from the complete approved truss system, including support locations, connection hardware, rigging method, attachment points, applied loads, fixture distribution, bracing, environmental conditions, venue requirements, and applicable approvals.

Inspect both arc sections, welds, braces, chords, receivers, conical couplers, tapered pins, and R-clips before each installation.
Confirm every chord connection at both arc joints is fully seated and retained before the truss circle is lifted, supported, rigged, or loaded.
Determine support locations and equipment loads using the actual completed truss circle and the approved truss system.
Do not use straight-truss span tables to independently rate the C150 or the completed circular assembly.
Account for concentrated loads, uneven fixture distribution, dynamic forces, and the number and position of suspension or support points.
Include wind and other applicable environmental loads for outdoor or exposed installations.
Obtain the project-specific engineering, facility, venue, and regulatory review required for the intended truss system and application.
Use trained personnel for truss assembly, rigging, lifting, and load placement.

Product Questions

EVT290S-C150 Frequently Asked Questions.

Is the EVT290S-C150 a complete circle or a single arc?

The C150 is a complete truss circle supplied as two matching 180-degree arc sections. When both arc joints are connected, the sections form a continuous 360-degree truss circle.

Why select a truss circle instead of multiple angled corners?

A purpose-built truss circle provides a continuous circular form rather than approximating a circle with multiple straight sections and corner components. Select it when the approved truss system calls for a 1.5 m circular assembly.

Can lighting fixtures and equipment be mounted around the circle?

Equipment may be mounted only when matching mounting hardware is used and the fixture positions, attachment points, support arrangement, and total loading have been evaluated for the complete approved truss system.

Can straight-truss load tables be used for this circle?

Do not automatically treat straight-truss data as a rating for the C150. The completed circle must be evaluated for its actual support arrangement, attachment points, and load locations.

Need a 4.92-Foot EVT290S Truss Circle?

The EVT290S-C150 provides a complete two-piece 1.5 m circular truss assembly for F34 and 290 mm square-truss systems. Contact us for circle selection, matching truss components, connection verification, rigging coordination, engineering review, custom truss-system design, and freight assistance.
