Professional 6.5-Foot Circular Square Aluminum Truss – EVT290S-C200 Series - High-Strength and Versatile Truss Component

EVT290S-C200 | 6.56ft Truss Circle

Original price was: $3,511.00.Current price is: $2,340.00.

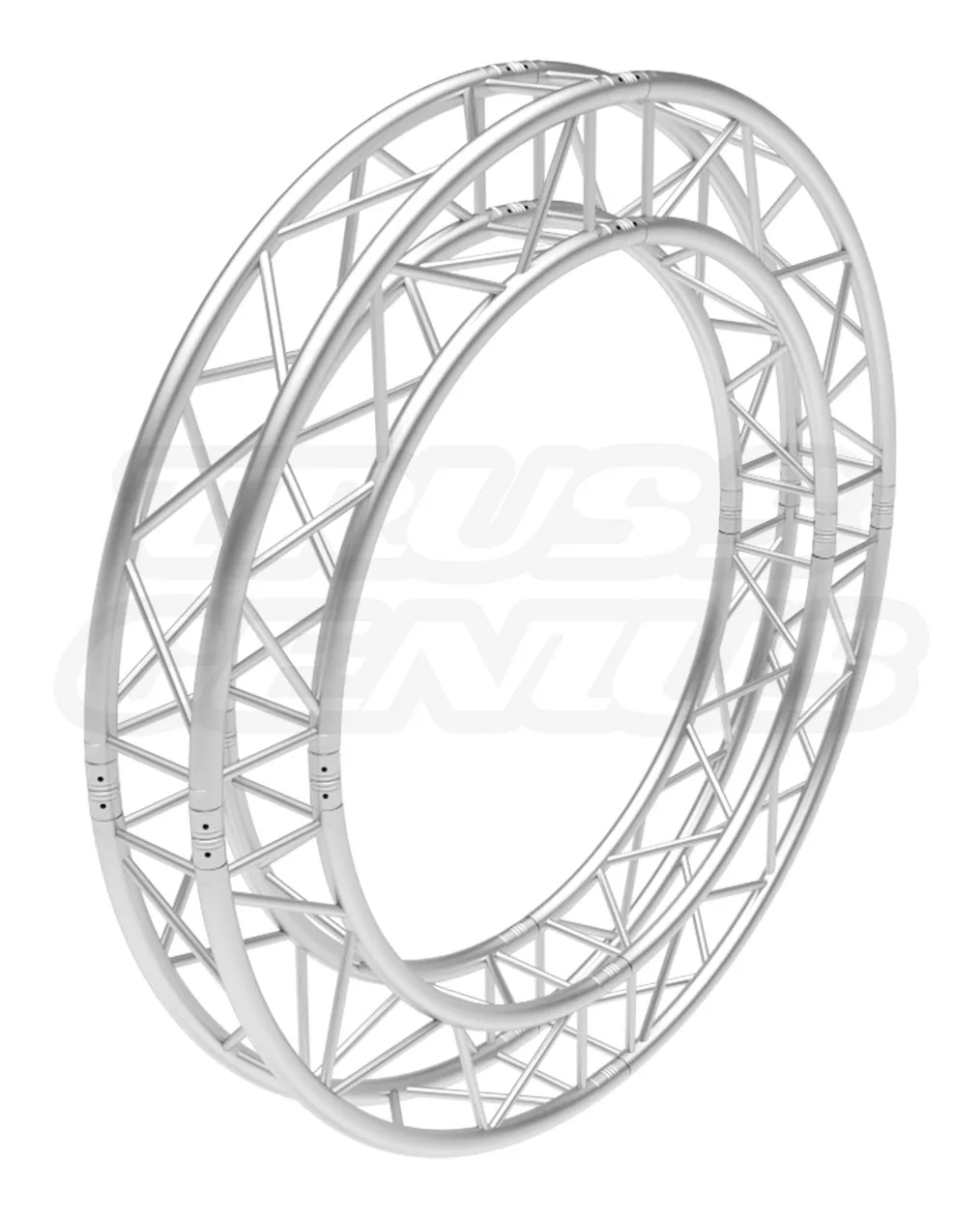

EVT290S-C200 — 2m (6.56 ft) Diameter Square Aluminum Truss Circle (90 Degree Arc)

Dimensions
Circle Diameter: 6.56 ft (2 m) Outer Diameter
Inside Diameter: 4.66 ft (1.42 m)
Truss Profile: 11.41 in (290 mm) Square
System Configuration: Composed of 4x 90 Degree Arc Segments

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 84 lb (38.1 kg)

In stock

SKU: EVT290S-C200 Category:

EVT290S Circular Truss Knowledge Center

EVT290S-C200 6.56-Foot Truss Circle.
For Lighting, Exhibits, Stage Environments, and Technical Installations.

The EVT290S-C200 is a complete circular aluminum truss assembly with a 2.0 m / 6.56 ft outside diameter. Four matching 90-degree arc sections join to form one continuous 360-degree truss circle. The C200 is used in specified truss systems for lighting, trade show exhibits, branded displays, corporate events, stage environments, scenic elements, studio equipment, motion-capture systems, and technical installations.

Product Facts

Model / SKUEVT290S-C200
Product TypeComplete Truss Circle
Outer Diameter2.0 m / 6.56 ft
Inside Diameter1.42 m / 4.66 ft
Configuration4 × 90° Arc Sections
Component Weight84 lb / 38.1 kg
6.56 ftOuter Diameter
360°Completed Circle
4 PiecesArc Sections
84 lbComplete Weight
4 SetsHardware Included

Product Overview

Four Arc Sections Form a Complete 2-Meter Circular Truss Assembly.

The EVT290S-C200 forms a complete 2.0 m / 6.56 ft circular truss assembly from four matching 90-degree arc sections. Its 1.42 m / 4.66 ft inside diameter provides central space for specified equipment, displays, scenic elements, and installation requirements. Assemble all four sections and secure every required connection before the completed circle is lifted, supported, rigged, or loaded.

Complete 360-Degree Circle
Four matching quarter-circle sections join to form one continuous circular truss assembly.
2.0 m Outer Diameter
The completed circle has a 2.0 m / 6.56 ft outside diameter and a 1.42 m / 4.66 ft inside diameter.
Four-Piece Construction
Four 90-degree arc sections support transportation, storage, handling, and on-site connection before the circle is used.
290 mm Square Truss Profile
The circular assembly uses the four-chord 290 mm square-truss profile found in the EVT290S and F34 product families.

Common Applications

For Lighting, Exhibits, Stage Environments, and Technical Installations.

The EVT290S-C200 is used in specified truss systems for lighting, video, trade show exhibits, branded displays, corporate events, stage environments, scenic elements, studio equipment, motion-capture systems, and other technical installations. Its 1.42 m / 4.66 ft inside diameter provides central space for equipment, display elements, scenic components, or a working area within the completed circle. Determine support locations, equipment positions, load distribution, connection hardware, and engineering requirements from the complete approved truss system before the circle is lifted, supported, rigged, or loaded.

01
Lighting and Video
Arrange specified lighting fixtures, video elements, practicals, or technical equipment around a central installation area.
02
Trade Show Exhibits
Frame a product display, demonstration area, exhibit element, or branded overhead installation within a specified circular truss assembly.
03
Corporate Events and Brand Activations
Create a circular overhead structure for signage, lighting, displays, product launches, and branded environments.
04
Stage and Scenic Work
Use as part of a specified ring-shaped scenic form, portal, halo, or other circular scenic structure.
05
Studios and Motion Capture
Provide a circular truss assembly for approved cameras, sensors, practical lighting, display equipment, or controlled production work.
06
Technical Installations
Use where a specified truss system requires equipment to be positioned around a common central subject, object, display, or working area.

Circle Configuration

Four 90-Degree Arc Sections Form the Complete Truss Circle.

The EVT290S-C200 is supplied as four matching quarter-circle arc sections. The arc ends connect at four separate joints to close the circle. All four joints are required connection points in the completed truss assembly and must be fully aligned, secured, and inspected before the circle is lifted, supported, rigged, or loaded.

4 × 90-Degree Arc Sections
The four matching quarter-circle sections create the full 360-degree truss circle when all connections are completed.
Four Connection Joints
The completed circle has four connection interfaces, each requiring the specified conical connection hardware.
Conical Couplers
Conical couplers align and mechanically join the corresponding chord receivers at each connection point.
Tapered Pins and R-Clips
Tapered pins secure the couplers and R-clips retain the installed pins at every required chord connection.
All Four Connections Are Structural Connection Points
Inspect and secure every chord connection at all four joints before lifting or loading the completed circle. The truss circle should not be treated as fully assembled until all required conical couplers, tapered pins, and R-clips are installed and retained.

Included Connection Hardware

Four Hardware Sets Included with the Complete Truss Circle.

The EVT290S-C200 includes four connecting-hardware sets for assembly of the complete truss circle. Together, the included hardware consists of sixteen conical couplers, thirty-two tapered pins, and thirty-two R-clips. Confirm the current product package, approved truss system, and connection schedule before assembly.

Four Hardware Sets
The complete truss circle includes four connecting-hardware sets for assembly of its four arc sections.
16 Conical Couplers
The four included hardware sets contain a total of sixteen conical couplers.
32 Tapered Pins
The four included hardware sets contain a total of thirty-two tapered pins.
32 R-Clips
The four included hardware sets contain a total of thirty-two R-clips. Confirm that every installed tapered pin has its required R-clip before the truss circle is lifted, moved, or loaded.

Technical Reference

EVT290S-C200 Specifications.

The following values identify the C200 truss circle dimensions, section configuration, material, tubing, finish, connection system, certification, system fit, and nominal weight. Confirm current manufacturer drawings, instructions, connection hardware, component condition, and technical documentation before ordering or assembling a truss system.

Circle Dimensions

Product Details

Model / SKUEVT290S-C200
Product TypeComplete Circular Truss Assembly
Outer Diameter2.0 m / 6.56 ft
Inside Diameter1.42 m / 4.66 ft
Truss Profile290 mm / 11.41 in Square
Configuration4 × 90-Degree Arc Sections

Construction

Tubing and Material

MaterialEN AW-6082 T6 Aluminum
Main Tubing50 mm OD / 2 mm Wall
Brace Tubing20 mm OD / 2 mm Wall
FinishBrushed Aluminum
Complete Weight84 lb / 38.1 kg

Connection System

Hardware and Certification

Connection TypeConical Connection System
Included Hardware16 Conical Couplers, 32 Tapered Pins, 32 R-Clips
CertificationTUV Certified

System Fit

F34 and 290 mm Square Truss

Primary SystemEVT290S
Listed System FitF34 and Standard 290 mm Square Systems
Main Chord Diameter50 mm
Completed Form360-Degree Truss Circle

System Compatibility

EVT290S, F34, and 290 mm Square Truss Systems.

The EVT290S-C200 follows the 290 mm square-truss profile and conical connection format associated with the EVT290S and F34 product families. System fit requires more than matching nominal outside dimensions. Confirm chord spacing, receiver dimensions, conical connector details, component orientation, connection hardware, support arrangement, and applicable structural data before combining separately sourced components.

EVT290S System
The C200 is designed around the EVT290S square-truss profile and conical connection format.
F34 System
The product is intended for F34-style 290 mm square-truss systems with matching connection details.
Other 290 mm Systems
Other 290 mm square conical systems should be dimensionally verified before components are combined.
Circle-Specific Review
Review the completed truss circle according to its actual support arrangement, attachment points, and load locations rather than using straight-section assumptions.
Physical Fit Does Not Establish Structural Equivalence
A component may physically connect to another 290 mm truss component without the complete assembly having equivalent structural properties. Verify connector dimensions, tubing configuration, material, connection condition, system load data, and engineering requirements before combining components from different systems.

Assembly Overview

Join the Four Arc Sections Before the Completed Circle Is Rigged or Loaded.

The four-piece design supports transportation and handling, but all arc sections must be correctly aligned before the circle functions as the intended completed assembly. Maintain alignment across all four chords at every connection point and verify every required connection before lifting, supporting, rigging, or loading the truss circle.

01 — Inspect All Arc Sections
Check chords, bracing, welds, receivers, conical couplers, tapered pins, and R-clips for damage or abnormal wear before joining the sections.
02 — Position the Four Sections
Place the four 90-degree arc sections in their intended orientation and align the corresponding ends.
03 — Install Conical Couplers
Insert the required conical couplers at the mating chord receivers for all four connection joints.
04 — Close the Circle
Bring each interface together gradually while keeping all four chord connections aligned at every joint.
05 — Secure Hardware
Fully install the tapered pins and R-clips at every required chord connection across all four joints.
06 — Verify Before Use
Confirm circular alignment, connection security, support arrangement, and the complete assembled truss circle before lifting, supporting, rigging, or loading.

Safety and Engineering

A Circular Truss Assembly Is Not a Standalone Load, Span, or Suspension Rating.

The structural performance of the EVT290S-C200 depends on how the completed circle is supported and loaded. Support from multiple points differs from support at one or two locations, and equipment placed around the circle can produce uneven load conditions. Determine suitability from the complete approved truss system, including support locations, connection hardware, rigging method, attachment points, applied loads, fixture distribution, bracing, environmental conditions, venue requirements, and applicable approvals.

Inspect all arc sections, welds, braces, chords, receivers, conical couplers, tapered pins, and R-clips before each installation.
Confirm every chord connection at all four joints is fully seated and retained before the truss circle is lifted, supported, rigged, or loaded.
Determine support locations and equipment loads using the actual completed truss circle and the approved truss system.
Do not use straight-truss span tables to independently rate the C200 or the completed circular assembly.
Account for concentrated loads, uneven fixture distribution, dynamic forces, and the number and position of suspension or support points.
Include wind and other applicable environmental loads for outdoor or exposed installations.
Obtain the project-specific engineering, facility, venue, and regulatory review required for the intended truss system and application.
Use trained personnel for truss assembly, rigging, lifting, and load placement.

Product Questions

EVT290S-C200 Frequently Asked Questions.

Does the EVT290S-C200 include a complete circle?

Yes. The C200 is supplied as four matching 90-degree arc sections that connect to form one complete 360-degree truss circle.

Why is the truss circle divided into four sections?

The four-section configuration supports transportation, storage, handling, and assembly while allowing the completed truss circle to be connected on site.

What is the inside diameter of the C200?

The listed inside diameter is 1.42 m / 4.66 ft. Use this measurement when determining whether displays, scenic elements, fixtures, or other equipment must fit within the center opening.

Can straight-truss load tables be used for this circle?

Do not automatically treat straight-truss data as a rating for the C200. The completed circle must be evaluated for its actual support arrangement, attachment points, and load locations.

Need a 6.56-Foot EVT290S Truss Circle?

The EVT290S-C200 provides a complete four-piece 2.0 m circular truss assembly for F34 and 290 mm square-truss systems. Contact us for circle selection, matching truss components, connection verification, rigging coordination, engineering review, custom truss-system design, and freight assistance.
