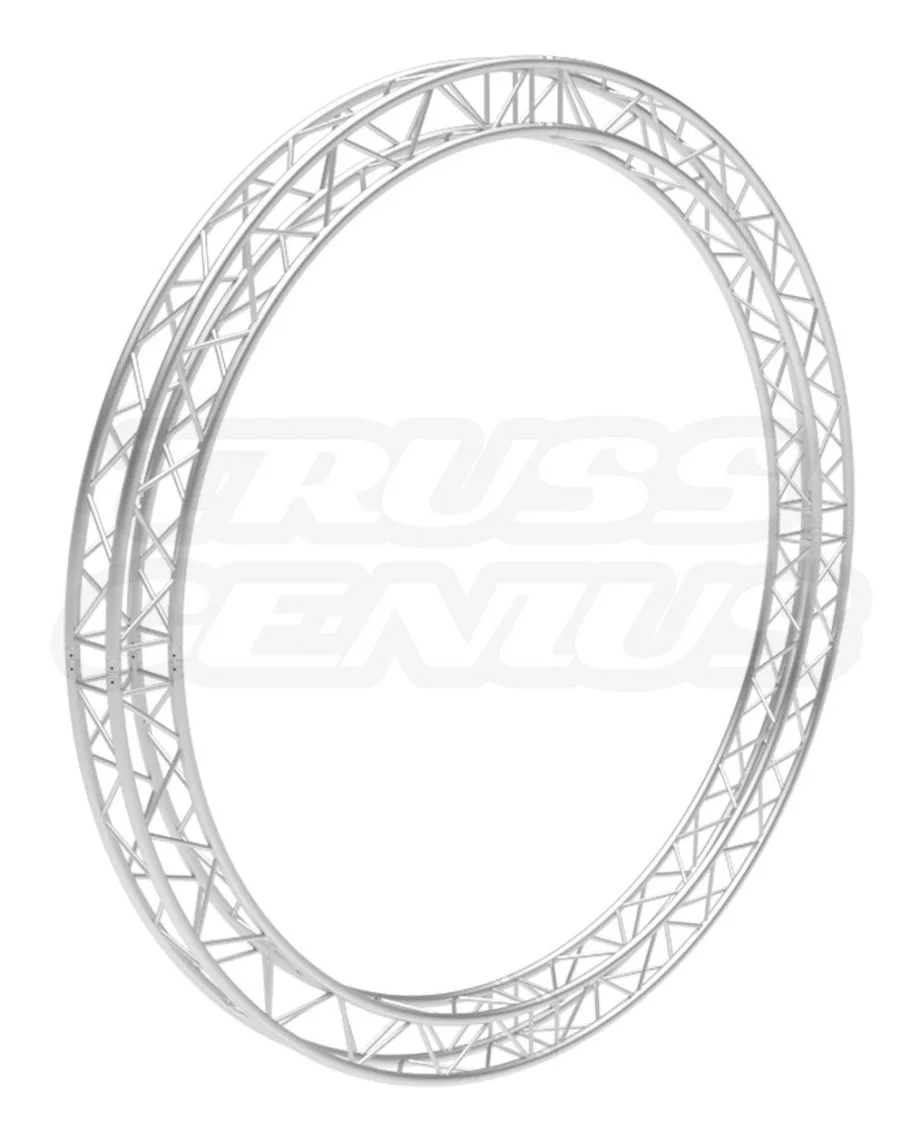

EVT290S‑C400 13.12 ft (4 m) square truss circle — brushed aluminum, compatible with 290 mm (F34) systems

EVT290S-C400 | 13.12ft Truss Circle

Original price was: $6,351.00.Current price is: $4,234.00.

EVT290S-C400 — 4m (13.12 ft) Diameter Square Aluminum Truss Circle (90 Degree Arc)

Dimensions
Circle Diameter: 13.12 ft (4 m) Outer Diameter
Inside Diameter: 11.22 ft (3.42 m)
Truss Profile: 11.41 in (290 mm) Square
System Configuration: Composed of 4x 90 Degree Arc Segments

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 156 lb (70.76 kg)

In stock

SKU: EVT290S-C400 Category:

EVT290S Circular Truss Knowledge Center

EVT290S-C400 13.12-Foot Truss Circle.
For Large Scenic Portals, Exhibit Structures, and Overhead Production Systems.

The EVT290S-C400 includes four matching 90-degree aluminum truss arc sections. Join all four sections to form one complete 4.0 m / 13.12 ft circular assembly with a 3.42 m / 11.22 ft inside opening, or specify individual arcs within a compatible 290 mm square-truss system. The C400 is suited to approved exhibit, scenic, stage, studio, architectural, and technical installations requiring circular or curved truss geometry.

Product Facts

Model / SKUEVT290S-C400
Product TypeComplete Truss Circle
Outer Diameter4.0 m / 13.12 ft
Inside Diameter3.42 m / 11.22 ft
Configuration4 × 90° Arc Sections
Complete Weight156 lb / 70.76 kg
13.12 ftOuter Diameter
11.22 ftInside Diameter
4 PiecesArc Sections
156 lbComplete Weight
4 SetsHardware Included

Product Overview

A 4-Meter Circle or Individual Arcs for Large Curved Truss Construction.

The EVT290S-C400 includes four matching 90-degree arc sections that may be joined into a complete 4.0 m / 13.12 ft circular truss assembly. Within a compatible EVT290S or F34-format 290 mm square-truss system, an individual arc may also be specified as a curved component for an approved truss structure. The complete ring provides a 3.42 m / 11.22 ft inside opening for a substantial display, scenic composition, production zone, or approved installation area. Confirm the intended geometry, connection interfaces, supports, attachments, loads, and engineering requirements for the complete installed system before use.

Complete 360-Degree Ring
Four matching quarter-circle sections join to create one continuous circular truss assembly.
4.0 m Outer Diameter
The completed circle spans 4.0 m / 13.12 ft outside diameter with a 3.42 m / 11.22 ft inside opening.
Individual 90-Degree Arcs
A single arc, or a specified combination of arcs, can introduce a 90-degree curve into a compatible truss structure.
290 mm Square Truss Profile
The assembly uses four-chord 290 mm square truss with 50 mm main chords and conical connection interfaces.

Common Applications

Create a Stronger Overhead Presence for Large Project Areas.

At 4.0 m in diameter, the completed C400 circle can register across a larger exhibit, stage, scenic environment, studio set, or corporate installation. Individual arcs can also be incorporated into specified curved portals, display headers, and transitions between compatible truss sections. Select supports, attachment methods, hardware, equipment positions, and load distribution from the complete approved truss system.

01
Exhibit Island Identification
Create a high-level circular marker above a large exhibit island, hospitality zone, product demonstration area, or meeting space.
02
Scenic Portals and Rings
Build a specified circular portal, halo, overhead scenic ring, or suspended scenic composition for stage and theatrical work.
03
Corporate Presentation Areas
Define a presentation platform, product reveal, reception area, or audience environment with approved overhead branding and lighting.
04
Studio and Broadcast Sets
Establish a broad overhead perimeter for controlled lighting, cameras, displays, scenic elements, and production equipment around a studio set.
05
Architectural and Retail Installations
Incorporate a circular aluminum truss form into approved retail environments, showrooms, temporary architecture, and branded interiors.
06
Individual Curved Sections
Use a single 90-degree arc, or a specified combination of arcs, with compatible straight sections and junctions to create rounded portals, curved display headers, arched spans, or other engineered truss forms.

Who It Is For

For Teams Building Large Circular and Curved Truss Structures.

The C400 is intended for exhibit builders, scenic and staging teams, corporate-event producers, studio operators, technical integrators, rental inventories, and project teams working with a 290 mm square truss system. It is selected for projects where the completed 13.12 ft circle, or one or more individual 90-degree arcs, matches the intended geometry, clearances, supports, and engineering plan.

Exhibit Builders
For larger booth structures, overhead identification, presentation areas, curved display headers, and branded exhibit environments.
Scenic and Stage Teams
For portals, rings, scenic surrounds, curved transitions, stage compositions, and specified overhead construction.
Production and Studio Teams
For approved lighting, camera, display, sensor, and technical equipment installations.
Technical Integrators
For engineered truss structures requiring circular or curved geometry around equipment, displays, or a central operational zone.

Included Connection Hardware

Four Hardware Sets for the Complete Truss Circle.

The EVT290S-C400 includes four connecting-hardware sets for assembly of the complete truss circle. Together, the included hardware provides sixteen conical couplers, sixteen tapered pins, and sixteen R-clips for the four matching 90-degree arc sections. Confirm the current product package and all required hardware before assembly.

Four Hardware Sets
One connecting-hardware set is included for each of the four matching 90-degree arc sections.
16 Conical Couplers
The included hardware provides the conical couplers required to connect the four arc sections into the complete circle.
16 Tapered Pins
The included tapered pins secure the installed couplers at the required chord connections.
16 R-Clips
The included R-clips retain the installed tapered pins. Confirm every pin has its required R-clip before the circle is lifted, moved, or loaded.
All four arc joints are structural connection points.

Inspect and secure every active chord connection at every joint before lifting or loading the completed circle. The ring is not fully assembled until all required couplers, pins, and R-clips are installed and retained.

Technical Reference

EVT290S-C400 Specifications.

The following values identify the C400 geometry, construction, connection system, hardware, and listed system fit. Confirm current manufacturer drawings, instructions, component condition, connection hardware, and project documentation before ordering or assembling a truss system.

Identification

Product Information

Model / SKUEVT290S-C400
BrandEvolve Truss
Product TypeComplete Circular Square Truss Assembly
CertificationTUV Certified

Circle Geometry

Dimensions

Outer Diameter4.0 m / 13.12 ft / 157.48 in
Inside Diameter3.42 m / 11.22 ft / 134.65 in
Cross Section290 × 290 mm / 11.41 × 11.41 in
Arc Configuration4 × 90-Degree Arc Sections
Complete Weight156 lb / 70.76 kg

Construction

Tubing and Finish

MaterialEN AW-6082 T6 Aluminum
Main Chords50 mm OD / 2 mm Wall
Diagonal Braces20 mm OD / 2 mm Wall
FinishBrushed Aluminum

Connection System

Hardware and Compatibility

Connection TypeConical Connection System
Included Hardware4 Hardware Sets: 16 Couplers, 16 Tapered Pins, 16 R-Clips
Listed System FitEVT290S, F34, and Matching 290 mm Square Conical Systems

System Compatibility

EVT290S, F34, and Matching 290 mm Square Conical Systems.

The EVT290S-C400 uses 290 mm square truss geometry, 50 mm main chords, and a conical connection system. Combining it with other components requires matching receiver spacing, coupler dimensions, chord geometry, component orientation, and applicable engineering data. A nominal mechanical fit does not establish structural compatibility or equivalent capacity. Individual arc use changes the structural system and must be evaluated for its actual supports, attachments, and loading condition.

EVT290S Compatibility
Designed to integrate with compatible EVT290S square truss sections, corners, bases, and accessories.
F34 Compatibility
Compatible with matching F34 290 mm square geometry and conical hardware when dimensional interfaces match.
Individual Arc Integration
A 90-degree arc may be specified with compatible straight sections and junctions as part of an approved curved truss structure.
Circle-Specific Loading
Evaluate the complete ring or an individual-arc structure according to its actual supports, attachments, and load locations.
Nominal mechanical fit does not establish structural compatibility.

Before combining brands or systems, verify connector dimensions, receiver spacing, chord geometry, applicable manufacturer documentation, and engineering suitability for the completed installation.

Assembly Overview

Join Four 90-Degree Arcs in a Controlled, Verified Sequence.

The four-piece configuration supports transport and handling, but every chord must align correctly at each joint before the completed circle is lifted, supported, rigged, or loaded. Use trained personnel, adequate clear floor space, and appropriate handling methods for the 156 lb / 70.76 kg completed assembly. When an arc is used individually, follow the approved assembly and support plan for the complete curved structure.

01 — Inspect All Components
Inspect every arc, chord, brace, weld, receiver, coupler, pin, and R-clip for damage, wear, or deformation.
02 — Lay Out the Arcs
Place the four 90-degree sections on a clean, level surface in their intended circular orientation.
03 — Confirm Arc Orientation
Align corresponding arc ends and verify the completed 360-degree geometry before installing hardware.
04 — Install Couplers
Insert compatible conical couplers into the mating chord receivers at each required joint.
05 — Seat Pins and R-Clips
Fully install every tapered coupler pin and secure it with its retaining R-clip.
06 — Final Inspection
Confirm four-chord alignment, complete hardware engagement, support locations, and the approved load plan before use.

Safety and Engineering

Circular-Truss Capacity Depends on The Complete Supported Structure.

The EVT290S-C400 does not establish a stand-alone allowable load. Structural performance depends on the completed circular configuration or individual-arc structure, support or suspension points, load locations, connection condition, bracing, orientation, dynamic forces, lateral forces, environmental conditions, and applicable engineering documentation. Do not apply straight-truss span capacities directly to the 4.0 m circular assembly or to an individual arc.

Inspect all arc sections, chords, braces, welds, receivers, couplers, pins, and R-clips before every installation.
Confirm every connection at all four arc joints is fully seated, pinned, and retained before lifting or applying load.
Determine support locations, suspension methods, and equipment loads using the actual completed circle or individual-arc structure.
Account for concentrated loads, uneven fixture distribution, dynamic forces, lateral forces, and the number and position of support points.
Do not use cracked, bent, deformed, heavily worn, or otherwise damaged components.
Outdoor installations require evaluation of wind and other applicable environmental loads.
Assembly, rigging, lifting, and load placement must be performed by qualified personnel and reviewed by an engineer where required.

Product Questions

EVT290S-C400 Questions.

Does the EVT290S-C400 include a complete circle?

The C400 package includes four matching 90-degree arc sections. Join all four sections to form a complete 4.0 m / 13.12 ft circular truss assembly, or specify an individual arc within a compatible EVT290S or F34-format 290 mm square-truss system where the complete curved structure has been mechanically verified, supported, and approved for its intended loading condition.

What are the completed circle dimensions?

The completed circle has a 4.0 m / 13.12 ft outer diameter and an approximately 3.42 m / 11.22 ft inside diameter. The documented complete assembly weight is approximately 156 lb / 70.76 kg.

What hardware is included?

The C400 includes four hardware sets, providing sixteen conical couplers, sixteen tapered pins, and sixteen R-clips for assembly of the complete circle.

Can fixtures be mounted around the circle?

Compatible mounting hardware may be used where fixture locations, support points, clamp placement, and total loading are approved for the completed engineered structure.

Planning a 4-Meter Circular or Curved Truss Structure?

Contact us for circle or arc selection, matching truss components, suspension planning, clamp and accessory selection, compatibility checks, CAD resources, engineering coordination, and freight assistance.

Contact UsRequest a Quote
