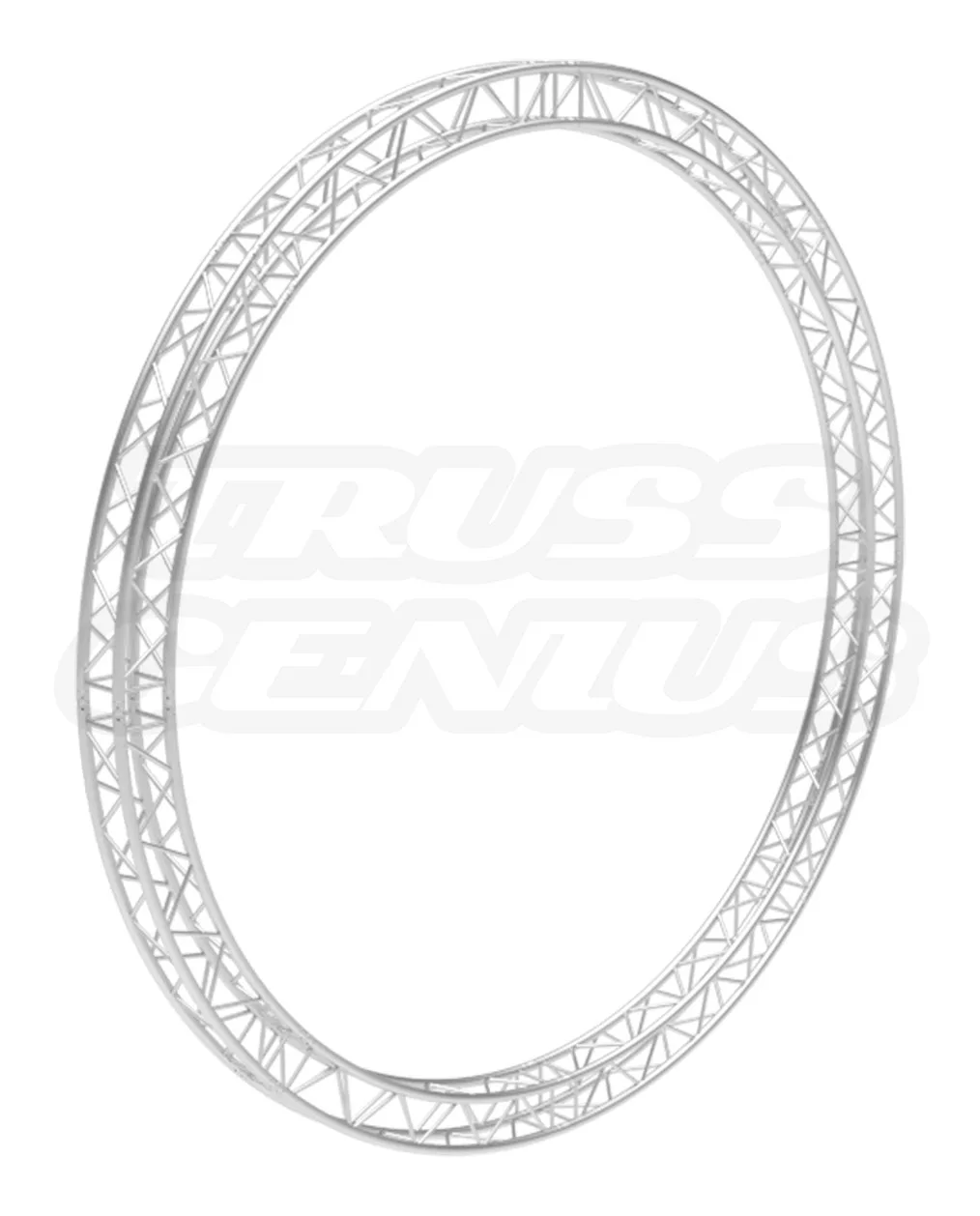

EVT290S‑C500 — 45 degree curved truss segment for building 16.4 ft (5 m) circular F34 truss systems

EVT290S-C500 | 16.40ft Truss Circle

Original price was: $8,221.00.Current price is: $5,480.00.

EVT290S-C500 — 5m (16.40 ft) Diameter Square Aluminum Truss Circle (45 Degree Arc)

Dimensions
Circle Diameter: 16.40 ft (5 m) Outer Diameter
Inside Diameter: 14.50 ft (4.42 m)
Truss Profile: 11.41 in (290 mm) Square
System Configuration: Composed of 8x 45 Degree Arc Segments

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 224 lb (101.6 kg)

In stock

SKU: EVT290S-C500 Category:

EVT290S Circular Truss Knowledge Center

EVT290S-C500 16.40-Foot Truss Circle.
For Large Exhibit Environments, Scenic Architecture, and Production Systems.

The EVT290S-C500 is a 5.0 m / 16.40 ft circular aluminum truss assembly built from eight matching 45-degree arc sections. The completed circle has a 4.42 m / 14.50 ft inside opening and provides a large circular perimeter for specified exhibit, scenic, studio, lighting, video, and technical installations. The eight sections may also be specified individually within compatible engineered curved truss structures.

Product Facts

Model / SKUEVT290S-C500
Product TypeComplete Truss Circle
Outer Diameter5.0 m / 16.40 ft
Inside Diameter4.42 m / 14.50 ft
Configuration8 × 45° Arc Sections
Complete Weight224 lb / 101.6 kg
16.40 ftOuter Diameter
14.50 ftInside Diameter
8 Pieces45-Degree Arc Sections
224 lbComplete Weight
8 SetsHardware Included

Product Overview

Eight 45-Degree Arcs Form a 5-Meter Circular Truss Assembly.

The EVT290S-C500 uses eight matching 45-degree arc sections to form one complete 5.0 m / 16.40 ft circle. The eight-section construction creates a broad 4.42 m / 14.50 ft internal opening for larger exhibit, scenic, production, and technical requirements. Individual 45-degree sections may also be specified in compatible EVT290S or F34-format 290 mm square-truss structures where the complete curved construction has been mechanically verified, supported, and approved for its intended use.

Complete 360-Degree Circle
Eight matching 45-degree arcs connect in sequence to create one continuous circular truss assembly.
5.0 m Outer Diameter
The completed circle measures 5.0 m / 16.40 ft across the outside and 4.42 m / 14.50 ft across the inside opening.
Eight-Section Construction
The 45-degree sections support transport, storage, handling, and more gradual curved truss construction.
Individual Curved Sections
A single 45-degree arc or specified sequence of arcs can create gradual curves within a compatible engineered truss structure.

Common Applications

Define Larger Exhibit, Scenic, and Production Environments.

The C500 is intended for projects where a 16.40 ft circular truss perimeter can establish a substantial overhead identity or surround a larger programmed area. Its eight-section curve is suited to exhibit islands, presentation theatres, scenic architecture, studio systems, production environments, and technical installations. Use the complete approved truss system to determine supports, attachment methods, hardware, fixture locations, cable management, load distribution, and engineering requirements.

01
Large Exhibit Islands
Create a circular overhead structure above a large booth, hospitality area, product theatre, demonstration zone, or meeting environment.
02
Presentation Theatres
Establish an overhead perimeter above presentations, product reveals, audience areas, and corporate communication environments.
03
Scenic Architecture
Incorporate the complete circle or selected arcs into large portals, overhead scenic rings, curved scenic transitions, and theatrical construction.
04
Lighting and Video Systems
Distribute approved lighting, video-related equipment, practicals, cable paths, and technical attachments around a large shared center.
05
Studios and Motion Capture
Create a broad equipment perimeter around a studio set, motion-capture area, camera subject, product set, or controlled production environment.
06
Curved Truss Structures
Use individual 45-degree arc sections with compatible straights and junctions for approved curves, rounded headers, and larger engineered truss forms.

Who It Is For

For Teams Planning Large Circular or Curved Structures.

The C500 is suited to exhibit builders, corporate-event producers, scenic and staging teams, studio operators, technical integrators, production companies, rental inventories, and other professionals working with compatible 290 mm square truss. It is selected when a large 5.0 m circle, or the flexibility of 45-degree curved sections, matches the project geometry, clearances, supports, transport plan, and engineering review.

Exhibit and Brand Teams
For large exhibit islands, product theatres, hospitality zones, overhead identification, and branded environments.
Scenic and Staging Teams
For large circular scenery, portals, overhead rings, curved transitions, and stage compositions.
Studio and Production Teams
For approved camera, lighting, display, sensor, motion-capture, and production-equipment installations.
Technical Integrators
For engineered circular or curved truss structures around technical equipment, displays, or operational areas.

Included Connection Hardware

Eight Hardware Sets for the Complete 5-Meter Circle.

The EVT290S-C500 includes eight connecting-hardware sets for assembly of the eight matching 45-degree arc sections. Together, the included hardware provides thirty-two conical couplers, sixty-four tapered pins, and sixty-four R-clips for the complete circle. Confirm the current product package and all required hardware before assembly.

Eight Hardware Sets
One connecting-hardware set is included for each of the eight matching 45-degree arc sections.
32 Conical Couplers
The included couplers align and join the mating chord receivers across the eight arc joints.
64 Tapered Pins
The included tapered pins secure the installed conical couplers at required chord connections.
64 R-Clips
The included R-clips retain the installed tapered pins. Confirm every pin has its required R-clip before the circle is lifted, moved, or loaded.
All eight arc joints are structural connection points.

Inspect and secure every active chord connection at every joint before lifting or loading the completed circle. The ring is not fully assembled until all required couplers, pins, and R-clips are installed and retained.

Technical Reference

EVT290S-C500 Specifications.

The following values identify the C500 geometry, construction, connection system, hardware, and listed system fit. Confirm current manufacturer drawings, instructions, component condition, connection hardware, and project documentation before ordering or assembling a truss system.

Identification

Product Information

Model / SKUEVT290S-C500
BrandEvolve Truss
Product TypeComplete Circular Square Truss Assembly
CertificationTUV Certified

Circle Geometry

Dimensions

Outer Diameter5.0 m / 16.40 ft
Inside Diameter4.42 m / 14.50 ft
Cross Section290 × 290 mm / 11.41 × 11.41 in
Arc Configuration8 × 45-Degree Arc Sections
Complete Weight224 lb / 101.6 kg

Construction

Tubing and Finish

MaterialEN AW-6082 T6 Aluminum
Main Chords50 mm OD / 2 mm Wall
Diagonal Braces20 mm OD / 2 mm Wall
FinishBrushed Aluminum

Connection System

Hardware and Compatibility

Connection TypeConical Connection System
Included Hardware8 Hardware Sets: 32 Couplers, 64 Tapered Pins, 64 R-Clips
Listed System FitEVT290S, F34, and Matching 290 mm Square Conical Systems

System Compatibility

EVT290S, F34, and Matching 290 mm Square Conical Systems.

The EVT290S-C500 uses 290 mm square truss geometry, 50 mm main chords, and a conical connection system. Combining it with other components requires matching receiver spacing, coupler dimensions, chord geometry, component orientation, and applicable engineering data. A nominal mechanical fit does not establish structural compatibility or equivalent capacity. Individual 45-degree arc use changes the structural system and must be evaluated for its actual supports, attachments, and loading condition.

EVT290S Compatibility
Designed to integrate with compatible EVT290S square truss sections, corners, bases, and accessories.
F34 Compatibility
Compatible with matching F34 290 mm square geometry and conical hardware when dimensional interfaces match.
Individual Arc Integration
A 45-degree arc may be specified with compatible straight sections and junctions as part of an approved curved truss structure.
Circle-Specific Loading
Evaluate the complete ring or an individual-arc structure according to its actual supports, attachments, and load locations.
Nominal mechanical fit does not establish structural compatibility.

Before combining brands or systems, verify connector dimensions, receiver spacing, chord geometry, applicable manufacturer documentation, and engineering suitability for the completed installation.

Assembly Overview

Build the Circle on a Flat Surface, Then Lift Using an Engineered Plan.

Lay out all eight 45-degree sections in their final circular orientation before installing the conical hardware. The completed assembly weighs 224 lb / 101.6 kg and includes eight separate joints that require verification. Use trained personnel, adequate clear floor space, and appropriate handling methods. When an arc is used individually, follow the approved assembly and support plan for the complete curved structure.

01 — Inspect Every Segment
Check chords, braces, welds, receivers, couplers, tapered pins, and R-clips for damage or deformation.
02 — Lay Out the Circle
Place all eight 45-degree sections on a clean, level surface in their final circular orientation.
03 — Install Couplers
Insert the correct conical couplers into the mating chord receivers at each required joint.
04 — Join Adjacent Segments
Bring each section together without forcing the chord receivers out of alignment.
05 — Install Pins and R-Clips
Fully seat the tapered pins and secure every installed pin with its required retaining R-clip.
06 — Final Inspection
Confirm the circle is round, every joint is seated, all hardware is retained, and the support plan is approved before use.

Safety and Engineering

Capacity Depends on The Complete Engineered System.

The EVT290S-C500 does not establish a stand-alone allowable load. Structural performance depends on the completed circular configuration or individual-arc structure, support points, suspension method, orientation, load locations, fixture positions, connection condition, bracing, dynamic and lateral forces, environmental conditions, and the engineering data for the complete installed system. Do not apply straight-truss span capacities directly to the 5.0 m circular assembly or to an individual arc.

Use only undamaged truss sections and complete conical hardware sets.
Inspect every chord, brace, receiver, coupler, tapered pin, and R-clip before use.
Confirm all eight joints are fully seated, pinned, and retained before lifting or applying load.
Do not place concentrated loads directly at a truss connection unless the engineering specifically allows it.
Distribute loads as required by the engineered support and rigging plan.
Use rated clamps, slings, shackles, hoists, and support hardware selected for the actual load case.
Suspended and load-bearing installations require review by a qualified structural engineer or entertainment-rigging engineer.
Assembly and lifting must be performed by trained personnel using an approved plan.

Product Questions

EVT290S-C500 Questions.

Does the EVT290S-C500 include a complete circle?

The C500 package includes eight matching 45-degree arc sections. Join all eight sections to form a complete 5.0 m / 16.40 ft circular truss assembly, or specify individual arcs in a compatible EVT290S or F34-format 290 mm square-truss system where the complete curved structure has been mechanically verified, supported, and approved for its intended loading condition.

What are the completed circle dimensions and weight?

The completed circle has a 5.0 m / 16.40 ft outer diameter, an approximately 4.42 m / 14.50 ft inside diameter, and a documented complete weight of approximately 224 lb / 101.6 kg.

What hardware is included?

The C500 includes eight hardware sets, providing thirty-two conical couplers, sixty-four tapered pins, and sixty-four R-clips for assembly of the complete circle.

Can the C500 be suspended or loaded?

The planned support or suspension arrangement must be evaluated for the complete 5.0 m circle, its approved truss system, actual support points, and all applied loads. Use qualified rigging and engineering review for overhead or load-bearing configurations.
