EVT290S C900 curved truss segment for building a nine meter circular F34 (290 mm) truss system

EVT290S-C900 | 29.52ft Truss Circle

Original price was: $13,291.00.Current price is: $8,860.00.

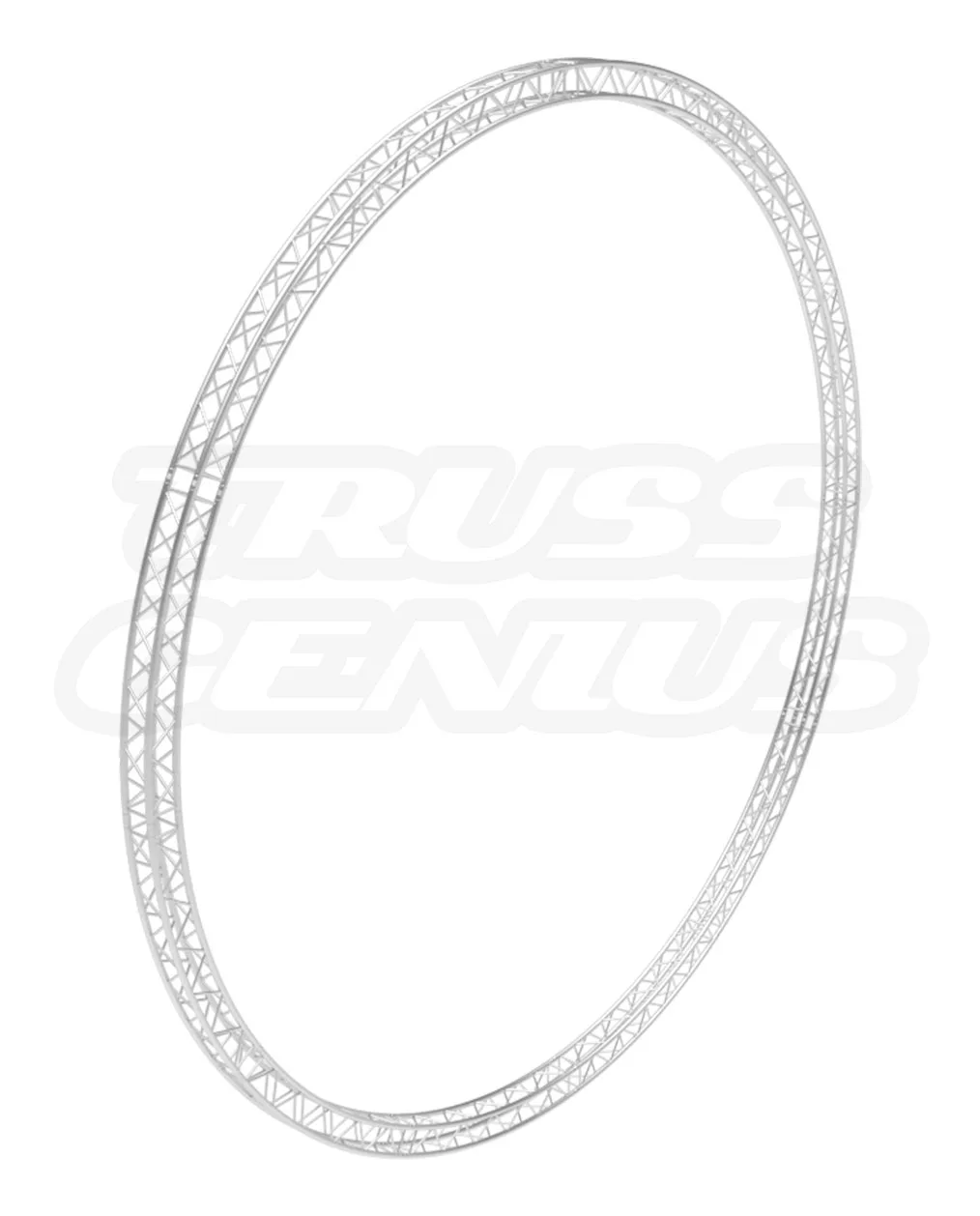

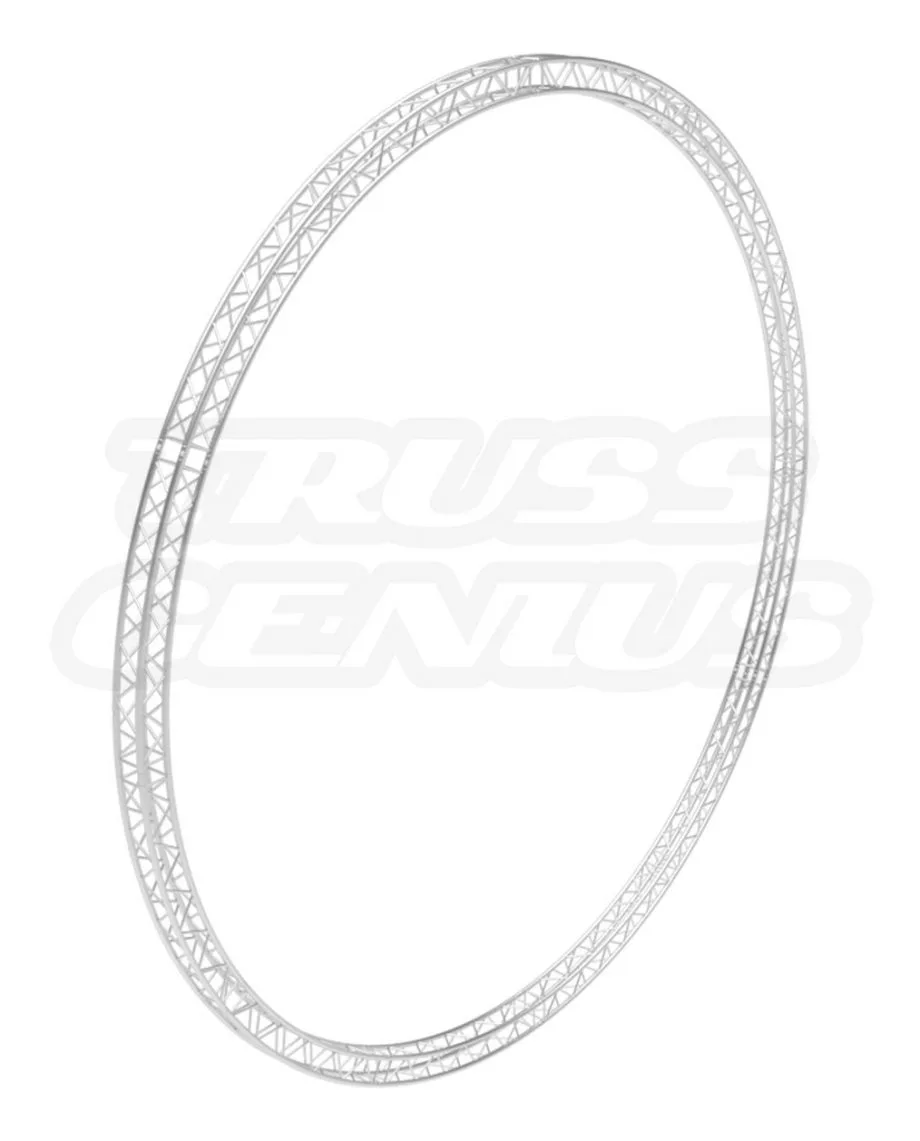

EVT290S-C900 — 9m (29.52 ft) Diameter Square Aluminum Truss Circle (30 Degree Arc)

Dimensions
Circle Diameter: 29.52 ft (9 m) Outer Diameter
Inside Diameter: 27.62 ft (8.42 m)
Truss Profile: 11.41 in (290 mm) Square
System Configuration: Composed of 12x 30 Degree Arc Segments

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 334 lb (151.5 kg)

In stock

SKU: EVT290S-C900 Category:

EVT290S System Knowledge Center

A 29.52-Foot Circular Truss.
A 9-Meter Structural Circle for Production, Capture, and Display Systems.

The EVT290S-C900 is a 29.52 ft / 9.0 m square aluminum truss circle built from twelve 30-degree arc segments. Its 9.0 m outer diameter provides a circular structural perimeter for production, motion capture, XR, automotive, drone, lighting, display, and architectural installations. It uses the EVT290S 290 mm square-truss profile, EN AW-6082 T6 aluminum alloy construction, and a brushed aluminum finish.

Product Facts

ModelEVT290S-C900
Outer Diameter29.52 ft / 9.0 m
Inside Diameter27.62 ft / 8.42 m
Configuration12 × 30° Arc Segments
MaterialEN AW-6082 T6 Aluminum
Weight334 lb / 151.5 kg
29.52 ftOuter Diameter
27.62 ftInside Diameter
290 mmSquare Profile
12 Pieces30-Degree Segments
334 lbSystem Weight

Product Overview

Twelve Matching Arcs Form One Complete 9-Meter Circle.

The EVT290S-C900 creates a complete 9.0 m diameter circle using twelve identical 30-degree arc segments and a conical truss connection system.

Twelve-Segment Circle
Twelve matching 30-degree arc sections form one complete 360-degree circle.
9.0 m Outer Diameter
At 29.52 ft / 9.0 m, the circle creates a broad circular structural perimeter for planned installations.
EVT290S Construction
Built from a 290 mm square-truss profile with 50 mm main chords and 20 mm diagonal bracing.
Conical Connections
Uses conical couplers, tapered pins, and R-clips at the arc-to-arc connections.

Common Applications

A Large Circular Perimeter for Production, Capture, Testing, and Display Systems.

The EVT290S-C900 provides a repeatable 9.0 m circular structural perimeter with distributed mounting positions around a common center. This geometry can support layouts that position equipment, cameras, sensors, lighting, or displays around a central subject, vehicle, aircraft, object, or performance area.

01
Motion Capture Volumes
Create a circular perimeter for motion-capture cameras, tracking equipment, lighting, and calibration infrastructure around a capture area.
02
AR, XR, and Virtual Production
Provide distributed mounting positions for cameras, tracking sensors, lighting, displays, and technical infrastructure around an immersive production space.
03
Automotive Displays and Evaluation
Frame a vehicle, prototype, or automotive display with planned lighting, camera, sensor, or branding positions.
04
Drone and Aerial Systems
Define a circular perimeter for drone camera operations, flight demonstrations, sensor placement, or controlled technical displays.
05
Lighting and Video Rigs
Support distributed lighting and video equipment around a wide circular frame when permitted by the completed rigging plan.
06
Architectural and Branded Installations
Create a large overhead ring for architectural environments, displays, activations, and branded spaces.

Who It’s For

For Teams That Need A 9-Meter Circular Working Envelope.

The EVT290S-C900 is intended for trained teams planning a 29.52 ft / 9.0 m circular truss system around larger subjects, working zones, and multi-position technical layouts. Its 27.62 ft / 8.42 m inner opening can accommodate broader camera geometry, wider lighting placement, vehicle-scale displays, simulation zones, and other applications that need substantial central clearance.

Full-Body and Multi-Person Capture Teams
For motion-capture, performance-capture, and tracking layouts requiring camera and sensor positions around a larger active volume.
Vehicle Imaging and Automotive Teams
For vehicle-scale photography, lighting, sensor demonstrations, prototype review, and display environments with perimeter-mounted equipment.
Drone Testing and Demonstration Teams
For planned technical environments involving drone cameras, aerial-system demonstrations, sensor placement, and controlled operational perimeters.
Immersive Studio and Simulation Teams
For XR, virtual-production, simulation, and training spaces that require wider separation between a central activity area and perimeter equipment.
Large-Object Display and Launch Teams
For installations centered on large products, industrial equipment, aircraft components, sculptures, or other oversized display subjects.
Technical Integration and Rigging Teams
For teams coordinating multi-point suspension, distributed equipment, engineering review, and a project-specific load and support plan.

Included Components

A Complete Twelve-Piece Circle with Hardware for Every Arc.

The EVT290S-C900 is configured as twelve 30-degree arc segments. The product source confirms a conical connection system using couplers, tapered pins, and R-clips. Confirm the exact shipped hardware count with the sales order or packing documentation before installation.

12 × 30-Degree Arc Segments
Twelve matching curved EVT290S truss sections create the complete 360-degree circle.
Conical Connection System
The product uses conical couplers, tapered pins, and R-clips to connect adjoining arc segments.
48 Couplers — If Four Per Arc
A four-coupler-per-arc configuration would require 48 couplers for the 12-arc circle; verify the delivered quantity against packing documentation.
96 Pins and 96 R-Clips — If Eight Per Arc
An eight-pin and eight-R-clip-per-arc configuration would require 96 of each; verify the delivered quantity against packing documentation.
All twelve arc joints are structural connection points.

Inspect and secure every active chord connection at every joint before lifting or loading the completed circle. Do not treat the ring as assembled until all required couplers, pins, and R-clips are installed and retained.

Technical Reference

EVT290S-C900 Specifications

Circle dimensions, segment configuration, tubing sizes, connection system, finish, certification, compatibility, and documented weight.

Identification

Product Details

Model / SKUEVT290S-C900
BrandEvolve Truss
Product TypeSquare Aluminum Truss Circle

Circle Geometry

Dimensions

Outer Diameter29.52 ft / 9.0 m
Inside Diameter27.62 ft / 8.42 m
Truss Profile11.41 in / 290 mm Square
Configuration12 × 30-Degree Arc Segments
Weight334 lb / 151.5 kg

Tubing and Material

Construction

MaterialEN AW-6082 T6 Aluminum
Main Chord Tubing50 mm OD / 2 mm Wall
Diagonal Brace Tubing20 mm OD / 2 mm Wall
FinishBrushed Aluminum
CertificationTUV Certified

Connection and Compatibility

System Fit

Connection TypeConical Connection System
Connection HardwareCouplers, Tapered Pins, and R-Clips
CompatibilityF34, EVT290S, and Standard 290 mm Square Truss
Clamp Compatibility50 mm / 2 in Clamps

System Compatibility

Fits F34, EVT290S, and Standard 290 mm Square Truss Systems.

The product source identifies compatibility with F34, EVT290S, and standard 290 mm square truss systems using compatible conical connector geometry.

EVT290S Compatibility
Compatible with the EVT290S square aluminum truss series.
F34 Compatibility
The source identifies an F34-compatible design for standard 290 mm square-truss straights and corners.
50 mm Clamp Compatibility
The source identifies compatibility with standard 50 mm / 2 in clamps for moving heads and fixtures.
Verify Before Mixing Brands
Test-fit mixed-brand connections on the ground before lifting and verify compatibility for the specific components in use.

Assembly Overview

Build the Circle on a Flat Surface. Then Lift Using an Engineered Plan.

Lay out all twelve segments in their final circular orientation before installing the conical hardware. Confirm the 29.52 ft / 9.0 m outer diameter matches the approved design before assembly.

01 — Inspect Every Segment
Check chords, braces, welds, receivers, couplers, pins, and clips for damage or deformation.
02 — Lay Out the Circle
Place all twelve 30-degree sections on a clean, level surface in their final orientation.
03 — Install Couplers
Insert compatible conical couplers into the mating chord ends according to the approved assembly plan.
04 — Join Adjacent Segments
Bring each segment together without forcing chord receivers out of alignment.
05 — Install Pins and R-Clips
Drive tapered pins fully and secure each one with its retaining clip.
06 — Final Inspection
Confirm the circle is round, every joint is seated, and all connection hardware is retained before rigging.

Safety and Rigging

A 9-Meter Circle Requires a Carefully Calculated Rigging Plan.

Circular truss loads must be calculated differently than straight spans. Consult the load tables for this specific diameter. The product source specifies evenly spaced hanging points and a carefully calculated, multiple-pick-point plan to help prevent frame warping.

Never exceed the rated load capacity of the completed circle.
Inspect all welds and conical receivers for stress cracks before assembly.
Ensure all couplers, tapered pins, and R-clips are fully engaged and secured.
Distribute hanging points evenly around the ring to help prevent frame warping.
Do not place concentrated loads at a truss connection unless the approved engineering permits it.
Use rated clamps, slings, shackles, hoists, and support hardware selected for the actual load case.
All overhead structures must be reviewed by a qualified rigger or engineer.
Assembly and lifting must be performed by trained personnel using an approved plan.

Product Questions

Frequently Asked Questions

How large is the EVT290S-C900 circle?

Its outer diameter is 29.52 ft / 9.0 m, and its inside diameter is 27.62 ft / 8.42 m.

How many sections make the complete circle?

Twelve 30-degree arc segments form the complete 360-degree circle.

How much does the complete circle weigh?

The product source documents a weight of 334 lb / 151.5 kg.

What connection hardware does it use?

It uses a conical connection system with couplers, tapered pins, and R-clips. Verify exact shipped hardware quantities against the sales order or packing documentation.

What truss systems are compatible?

The source identifies F34, EVT290S, and standard 290 mm square truss compatibility, plus 50 mm / 2 in clamp compatibility for moving heads and fixtures.

Can the circle be suspended?

A suspended configuration requires a diameter-specific load review and a carefully calculated plan with multiple, evenly spaced pick points. A qualified rigger or engineer must review the complete overhead structure.

Planning a 9-meter circular truss system for a technical or production environment?

Contact us for compatibility checks, motion-capture or tracking layout support, lighting and camera placement, clamp selection, rigging guidance, load-table review, engineering coordination, CAD resources, custom finishes, and freight planning.

Contact UsRequest a Quote

Structural Solutions, Unmatched Innovation
