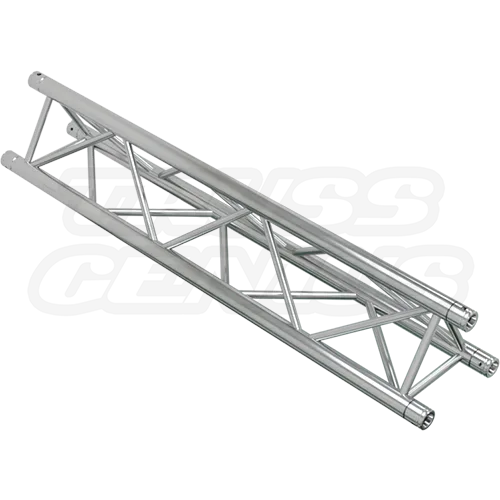

EVT290T-150 4.92-Foot / 1.5-Meter Triangular Truss Straight Section, strong and reliable truss component

EVT290T-150 | 4.92ft (1.5m)

Original price was: $539.00.Current price is: $359.00.

EVT290T-150 | 4.92 ft (1.5 m)
Medium-Duty Triangular Aluminum Truss

Dimensions
Overall Truss Length: 4.92 ft (1.5 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 17 lb (7.72 kg)

In stock

SKU: EVT290T-150 Category:

EVT290T Triangular Truss Knowledge Center

A 4.92-Foot Straight Section.
Built with Medium-Duty Triangular Truss Geometry.

The EVT290T-150 is a 1.5 m / 4.92 ft medium-duty triangular aluminum truss straight section designed for stages, lighting rigs, trade show exhibits, scenic structures, and modular event systems. It uses a 290 mm triangular profile, 50 mm main chords, 20 mm diagonal bracing, and a conical connection system.

Product Facts

Model EVT290T-150
Length 1.5 m / 4.92 ft
Truss Profile 290 mm Triangular
Weight 17 lb / 7.72 kg
Material EN AW-6082 T6
Finish Brushed Aluminum
1.5 m Section Length
290 mm Triangular Profile
17 lb Section Weight
50 mm Main Chords
Conical Connection System

Product Overview

A Versatile 1.5-Meter Length for Professional Triangular Truss Layouts.

The EVT290T-150 provides a practical 1.5 m straight section for modular lighting, staging, exhibit, and scenic structures.

Layout Control
Helps achieve exact overall widths, heights, and spacing in modular structures.
Extended Straight Runs
Adds 4.92 ft of straight truss while reducing unnecessary intermediate joints.
Conical Connection System
Uses conical couplers, tapered pins, and R-clips for fast repeatable assembly.
Professional Finish
Brushed aluminum blends cleanly with standard EVT290T and compatible 290 mm triangular-style systems.

Common Applications

Designed for Professional Modular Structures.

This straight section supports a wide range of lighting, staging, exhibit, scenic, and structural layouts.

01
Lighting Grids
Create straight perimeter runs and intermediate spans for lighting systems.
02
Goal-Post Structures
Use as an upright or horizontal segment where a 1.5 m length fits the required geometry.
03
Trade Show Displays
Build booth frames, overhead branding, entrances, and modular exhibit structures.
04
Stage & Scenic Systems
Support lighting, scenic elements, video equipment, and temporary production structures.
05
Retail & Hospitality Installations
Create clean modular frameworks for displays, lighting, signage, and branded environments.

Who It’s For

Built for Teams That Need Reliable Triangular Truss Components.

Best suited for professionals working with modular 290 mm triangular truss systems.

Event Production Companies
For lighting rigs, entrances, scenic structures, and repeatable event systems.
Trade Show Contractors
For modular booths, overhead frames, and precise exhibit layouts.
Rental Companies
For expanding inventory with a versatile medium-length triangular truss section.
Stage Technicians
For concert, theatrical, touring, and venue production systems.
Scenic & Fabrication Shops
For custom frames, supports, and modular structural builds.
AV Integrators
For temporary or permanent-style lighting, display, and equipment frameworks.

Included Hardware

Supplied for Standard Conical Connections.

The section includes the standard conical hardware required for compatible EVT290T connections.

Conical Couplers
Precision-machined couplers align the mating truss receivers.
Tapered Pins
Pins secure each coupler inside the adjoining truss receivers.
R-Clips
Retaining clips prevent the tapered pins from backing out.
Confirm hardware requirements for the complete structure.

Additional couplers, pins, clips, clamps, corners, base plates, ballast, or rigging accessories may be required.

Technical Reference

Complete Product Specifications

Dimensions, tubing, finish, weight, connection type, and compatibility.

Identification

Product Details

ModelEVT290T-150
SKUEVT290T-150
BrandEvolve Truss
Product TypeStraight Triangular Truss Section
Truss Profile290 mm / 11.41 in Triangular

Overall Size

Dimensions

Length1.5 m / 4.92 ft
Width290 mm / 11.41 in
Height290 mm / 11.41 in
Weight17 lb / 7.72 kg

Tubing & Material

Construction

MaterialEN AW-6082 T6 Aluminum
Main Chord Tubing50 mm / 1.96 in OD, 2 mm Wall
Diagonal Brace Tubing20 mm / 0.78 in OD, 2 mm Wall
FinishBrushed Aluminum

Connection & Compatibility

System Fit

Connection TypeConical Coupler System
Included HardwareCouplers, Pins & R-Clips
Truss CompatibilityEVT290T Triangular Truss System
Fabrication StandardTUV Specifications

System Compatibility

Designed for the EVT290T Triangular Truss System.

The EVT290T-150 is designed for the EVT290T 290 mm triangular truss system using matching conical connection geometry. Exact fit with other manufacturers or triangular truss systems should be verified before use.

EVT290T Compatibility
Designed to integrate directly with EVT290T straight sections, corners, junctions, and compatible system components.
Matching Conical Geometry
Receivers, couplers, tapered pins, and retaining hardware must use matching dimensions.
50 mm Clamp Compatibility
Main chords accept properly rated clamps designed for 50 mm / 1.96 in tubing.
Verify Before Mixing Systems
Do not assume compatibility with another triangular truss brand based only on nominal profile size.

Connection Overview

Seat the Couplers. Secure Every Pin.

Connections should be assembled by trained personnel using compatible hardware.

01 — Inspect Components
Check chords, braces, welds, receivers, couplers, pins, and clips.
02 — Insert Couplers
Place the conical couplers into the receivers on one truss section.
03 — Align the Sections
Bring the mating truss section into alignment without forcing the receivers.
04 — Install Tapered Pins
Drive each tapered pin fully through the aligned receiver and coupler.
05 — Install R-Clips
Secure every pin with its retaining clip.
06 — Final Inspection
Verify every connection before lifting or applying load.

Safety & Engineering

Load Capacity Depends on The Complete Structure.

Allowable loading depends on span, orientation, support conditions, connection details, load placement, bracing, geometry, and the complete engineered configuration.

Inspect all chords, braces, welds, receivers, couplers, pins, and clips before use.
Do not use components with cracks, bends, damaged welds, deformation, or excessive wear.
Confirm every tapered pin is fully seated and every R-clip is installed.
Do not place loads directly at unverified connection locations.
Balance loading across the structure and use appropriate secondary safeties where required.
Have the complete structure reviewed by a qualified engineer when required.
Assembly and use must be performed by trained personnel.

Product Questions

Frequently Asked Questions

Why use a 1.5 m section?

It provides a precise intermediate length for achieving specific overall dimensions and spacing in modular layouts.

Is connection hardware included?

Yes. Standard conical couplers, tapered pins, and R-clips are included.

Is it compatible with other 290 mm triangular truss systems?

It uses standard 290 mm square conical geometry. Verify exact connector dimensions and engineering data before mixing brands.

What clamps fit the main chords?

Compatible clamps designed for standard 50 mm truss tubing.

Can it be used outdoors?

Outdoor use depends on the complete engineered structure, support conditions, ballast or anchorage, and environmental loading.

Building a custom EVT290T truss layout?

Contact us for compatibility checks, matching lengths, corners, base plates, engineering support, and freight assistance.
