Name: EVT290T-4WCD – 4-Way Corner Apex Down for Triangular Truss
Brand: Evolve Truss
SKU: EVT290T-4WCD
Price: 399.00 USD
Availability: InStock

EVT290T Corner Knowledge Center

Four Directions.
Apex-Down Triangular Geometry.

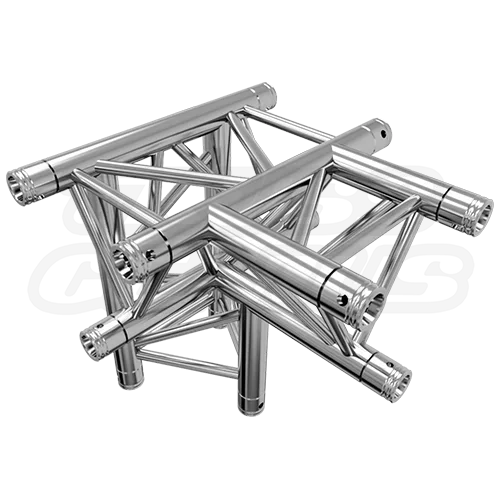

The EVT290T-4WCD is a four-way apex-down corner for 290 mm triangular aluminum truss systems. It creates four perpendicular connection paths from one compact junction and is designed for stages, lighting grids, trade-show exhibits, scenic frames, and modular truss structures.

Product Facts

Model EVT290T-4WCD

SKU EVT290T-4WCD

Product Type 4-Way Apex-Down Corner

Overall Length 1.64 ft / 0.5 m

Material EN AW-6082 T6 Aluminum

Weight 21 lb / 9.52 kg

4-Way Corner Direction

Apex Down Orientation

290 mm Triangular Profile

0.5 m Overall Length

21 lb Product Weight

Product Overview

A Central Four-Way Junction for Apex-Down Triangular Truss.

The EVT290T-4WCD allows four EVT290T truss runs to meet at one perpendicular apex-down junction while maintaining the 290 mm triangular system profile.

Four Connection Paths

Creates four perpendicular truss directions from one compact corner junction.

Apex-Down Orientation

Maintains the triangular profile with the single apex chord positioned downward.

EVT290T Construction

Built from 50 mm main chords and 20 mm diagonal bracing in EN AW-6082 T6 aluminum.

Conical Connection System

Connects with standard couplers, tapered pins, and retaining clips.

Common Applications

Designed for Multi-Directional Truss Layouts.

Suitable for professional staging, lighting, exhibit, scenic, and modular structural applications.

Lighting Grids

Create a central junction where four triangular truss runs meet.

Trade Show Booths

Build cross-shaped overhead frames and multi-directional display structures.

Stage Structures

Use within engineered stage roofs, scenic frames, and support grids.

Broadcast and Film

Create compact multi-way junctions for lighting and production grids.

Modular Installations

Expand triangular truss layouts in four perpendicular directions.

Who It’s For

Built for Professional Truss Designers and Installers.

Intended for trained personnel planning, assembling, and inspecting triangular truss systems.

Event Production Companies

For concert, corporate, and temporary event structures.

Lighting Designers

For multi-directional fixture grids and suspended lighting layouts.

Exhibit Builders

For cross-shaped booth frames, overhead crowns, and modular structures.

Rental Companies

For expanding EVT290T inventory with a specialized four-way corner.

Broadcast and Film Crews

For production grids and compact overhead junctions.

Riggers and Engineers

For project-specific structural layouts and reviewed load cases.

Product Features

Compact Geometry. Four-Way Structural Flexibility.

The EVT290T-4WCD combines a specialized four-way layout with standard EVT290T tubing and conical connection geometry.

Four-Way Layout

Supports four perpendicular triangular truss runs from one junction.

Apex-Down Configuration

Maintains the intended chord orientation throughout the connected layout.

Brushed Aluminum Finish

Matches the standard EVT290T aluminum appearance.

Connecting Hardware Included

Supplied with the hardware needed for the intended conical connections.

TUV Certified

Manufactured as a certified component within the EVT290T truss series.

Medium-Duty Construction

Uses 50 mm main chords with 2 mm walls and 20 mm diagonal braces.

Technical Reference

Complete Product Specifications

Product identity, geometry, tubing, material, finish, connection system, certification, and compatibility.

Identification

Product Details

ModelEVT290T-4WCD

SKUEVT290T-4WCD

BrandEvolve Truss

Product Type4-Way Apex-Down Triangular Truss Corner

Dimensions and Geometry

Overall Size

Overall Length1.64 ft / 0.5 m

Overall Width11.41 in / 290 mm

Truss Profile290 mm Triangular

OrientationApex Down

Weight21 lb / 9.52 kg

Tubing and Material

Construction

MaterialEN AW-6082 T6 Aluminum

Main Chord Tubing50 mm OD / 2 mm Wall

Diagonal Brace Tubing20 mm OD / 2 mm Wall

FinishBrushed Aluminum

CertificationTUV Certified

Connection and Compatibility

System Fit

Connection TypeConical Connection System

Included HardwareConnecting Hardware

Truss CompatibilityF33, EVT290T and Standard 290 mm Triangular Truss Systems

System Compatibility

Standard 290 mm Triangular Geometry. Verify Before Mixing Brands.

The EVT290T-4WCD fits F33, EVT290T, and standard 290 mm triangular truss systems using compatible conical connector geometry.

EVT290T Compatibility

Directly compatible with the EVT290T medium-duty triangular truss series.

F33 Compatibility

Designed around standard F33-style 290 mm triangular truss geometry.

Conical Connection Match

Confirm receiver dimensions, coupler fit, pin diameter, and chord spacing before combining systems.

Orientation Check

Verify apex-down orientation across every connected triangular truss section.

Assembly Overview

Confirm Apex Orientation. Then Complete Every Connection.

Position the corner in its final apex-down orientation before joining the four connected truss runs.

01 — Inspect the Corner

Check chords, braces, receivers, welds, and hardware for damage.

02 — Confirm Apex Down

Orient the single apex chord downward before making any connection.

03 — Lay Out the Four Directions

Align all connected truss sections without forcing the receivers.

04 — Install Couplers

Insert the correct conical couplers into the mating chord ends.

05 — Install Pins and Clips

Seat each tapered pin fully and secure it with the correct retaining clip.

06 — Final Inspection

Verify all four runs are aligned, fully seated, and correctly oriented.

Safety and Rigging

The Corner Is One Part of the Complete Structural System.

Allowable loads depend on span lengths, support points, fixture locations, orientation, connection geometry, dynamic effects, and the engineering data for the complete truss configuration.

Use only undamaged corner sections and complete conical hardware sets.

Inspect every chord, brace, weld, receiver, coupler, tapered pin, and retaining clip before use.

Maintain the required apex-down orientation throughout the complete structure.

Do not apply concentrated loads directly at the corner unless supported by the engineering data.

Use rated clamps, slings, shackles, hoists, bases, and support hardware selected for the actual load case.

Assembly and rigging must be performed by trained personnel using an approved plan.

Product Questions

Frequently Asked Questions

What does 4WCD mean?

It identifies a four-way corner configured for triangular truss with the apex facing down.

What truss systems are compatible?

It fits F33, EVT290T, and standard 290 mm triangular truss systems with matching conical geometry.

What is the overall size?

The overall truss length is 1.64 ft / 0.5 m and the profile width is 11.41 in / 290 mm.

Is connecting hardware included?

Yes. The product source lists connecting hardware as included.

Why is apex orientation important?

Triangular truss geometry changes depending on whether the apex faces up or down. Every connected section must follow the intended orientation.

Need a four-way triangular truss junction?

Contact us for compatibility checks, layout assistance, connecting hardware, custom finishes, engineering coordination, and quantity pricing.

Structural Solutions, Unmatched Innovation

EVT290T-4WCD

Four Directions. Apex-Down Triangular Geometry.
