Product Description

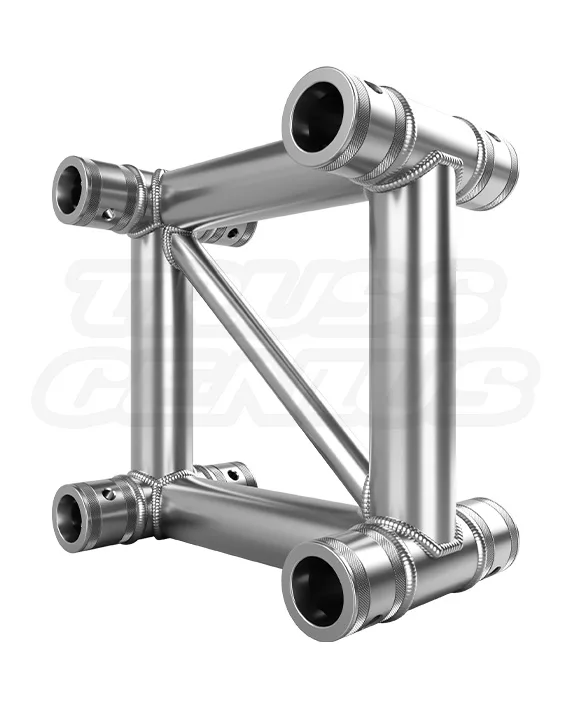

EVT290X-017 170 mm (6.69 in) Square Aluminum Truss Spacer Section | 290 mm Square Truss

The EVT290X-017 Square Aluminum Truss Spacer is a precision-engineered 170 mm (6.69 in) straight segment designed for 290 mm square conical aluminum truss systems. It is a reliable solution for meeting exact structural dimensions, bridging specific gaps in modular layouts, and ensuring precise alignment where standard-length truss pieces may fall short.

Manufactured from high-grade 6082-T6 aluminum alloy and fabricated in accordance with TUV specifications, the EVT290X-017 delivers dependable structural performance without compromising strength or geometric accuracy. It features a secure conical connection system consisting of a conical receiver and conical coupler, always secured together with Couplers, Pins, and R-clips for fast, repeatable assembly in professional production environments.

Finished in a clean brushed aluminum appearance, this spacer section integrates seamlessly into lighting, staging, and AV systems where both structural performance and visual consistency are critical. It is designed for use in applications such as event production, staging, lighting grids, trade-show exhibits, and custom modular truss installations.

Key Features

• Truss Length: 170 mm (6.69 in) spacer section for precision layout adjustments.
• Layout Control Segment: Ideal for tightening dimensions, bridging gaps, and building consistent frames.
• 290 mm Square Truss Compatibility: Compatible with F34, EVT290S, and other brands utilizing the 290 mm square truss system. Exact fit with other manufacturers is not guaranteed.
• Structural Alignment & Load Continuity: Maintains straight truss runs and consistent load paths.
• Secure Conical Connection System: Conical receiver and coupler secured with Pins and R-clips.
• Durable, Corrosion-Resistant Construction: Built from 6082-T6 aluminum for long service life.
• Clean, Professional Appearance: Brushed aluminum finish integrates with existing 290 mm truss sections.
• Modular & Reusable Design: Essential for custom configurations and reconfigurable builds.

Designed by Evolve Truss, the EVT290X-017 is compatible with 50 mm (1.97″) clamps, allowing seamless integration with common truss accessories and rigging hardware.

⚠️ Safety & Engineering Notice

❗ Critical Load Rating Information: The rated load capacity of this truss section depends on the complete system configuration and total span length. This spacer is typically not the limiting factor in a properly engineered structure. Always consult applicable load tables and a qualified engineer when determining load limits.

Important Guidelines for Safe Use:

• Never exceed the rated load capacity of the truss system.
• No loads shall be supported directly from truss connection points.
• Inspect all truss components before each use and remove damaged parts from service.
• Handle truss components with care—avoid dropping, dragging, or improper stacking.
• Assembly and installation must be performed only by trained and qualified personnel.
• Ensure all Couplers, Pins, and R-clips are correctly installed and fully secured.
• Account for all applicable forces, including dynamic and transverse forces such as wind loads.
• Do not mix truss components from different manufacturers.
• All truss structures must be reviewed and approved by a licensed professional engineer.

⚠️ Compatibility Warning for Mixed-Brand Builds

Crucial Steps for Safe Assembly:

• Verify all dimensions before integrating with other truss brands.
• Confirm conical connector type, node spacing, and system geometry.
• Mixing components without verification may compromise structural integrity and safety.
