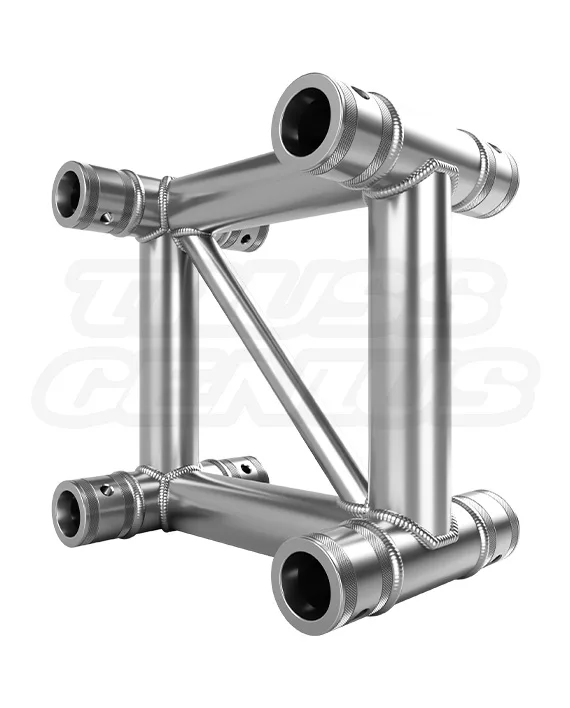

EVT290X-019 0.62-Foot / 0.19-Meter Heavy Duty Truss Spacer - Reliable Support for Truss Systems

EVT290X-019 | 0.62ft (0.19m)

Original price was: $405.00.Current price is: $270.00.

EVT290X-019 — 0.19 Meter (0.62 ft) Square Aluminum Conical Truss Spacer

Dimensions
Overall Truss Length: 0.62 ft (0.19 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.11 in (3 mm) Wall Thickness
Brace Tubing: 0.98 in (25 mm) Diagonal Bracing with 0.11 in (3 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 10.56 lb (4.78 kg)

In stock

SKU: EVT290X-019 Category:

190 mm Square Aluminum Truss Spacer Knowledge Center

EVT290X-019 190 mm Square Aluminum Truss Spacer.
Precise Length Adjustment for Clean, Complete 290 mm Truss Layouts.

The EVT290X-019 is a compact 190 mm / 7.48 in / 0.19 m / 0.62 ft square aluminum truss spacer for precise dimensional adjustments in compatible 290 mm square-truss runs. Its 290 x 290 mm geometry, 50 mm OD x 3 mm main chords, 25 mm OD x 3 mm diagonal bracing, EN AW-6082 T6 aluminum construction, brushed-aluminum finish, and included conical connection hardware support modular system assembly. The spacer helps close planned layout gaps; it does not independently establish allowable span, capacity, rigging condition, wind suitability, or loading for the completed structure.

Identity and Core Facts

Model / SKUEVT290X-019
Product ClassSquare Aluminum Truss Spacer
Length190 mm / 7.48 in / 0.62 ft
Truss Size290 x 290 mm / 11.41 x 11.41 in
Weight10.56 lb / 4.78 kg
CertificationTUV Certified
190 mmOverall Length
290 mmSquare Truss Size
50 x 3 mmMain Chords
25 x 3 mmDiagonal Braces
10.56 lbProduct Weight

Product Overview

A Short Truss Spacer for Exact Modular Dimensions.

The EVT290X-019 adds 190 mm / 7.48 in to a compatible 290 mm square-truss run, making it useful when standard lengths leave a small dimensional gap. Its compact length provides an additional precise increment between the 180 mm and 230 mm spacer options for planned truss frames, display structures, lighting grids, arches, and other modular assemblies. It is a truss component within the finished system—not a stand-alone solution for span, capacity, rigging, stability, or support design.

190 mm Layout Adjustment
Adds a precise 7.48 in segment without requiring a longer standard truss section.
Full-Size Square Geometry
Maintains 290 x 290 mm square-truss geometry within a short modular section.
Included Connection Hardware
Includes conical connection hardware for the spacer’s compatible truss interfaces.
TUV Certified
The current product specifications identify this spacer as TUV certified.

Applications

Designed for Precision Truss Layouts and Modular Adjustments.

Use the EVT290X-019 where a complete truss design requires a short 190 mm intermediate segment. Typical applications include trade-show structures, lighting grids, stage structures, arch and frame closures, booth layouts, presentation structures, and custom modular builds where a standard truss section would not produce the intended finished dimension. Final configuration, orientation, supports, attachments, loads, and rigging must be reviewed for the actual structure.

Trade Show Structures
Helps close short dimensional gaps in booths, frames, and branded displays.
Lighting Grids
Provides a compact adjustment section where standard truss lengths do not match the planned span.
Stage Structures
Supports planned layout refinements in compatible modular truss systems.
Arch and Frame Closures
Useful where a small additional section is required to complete an approved geometry.

Functional Details

Compact Length with Full-Size 290 mm Square Truss Geometry.

The spacer combines a 190 mm straight segment with 290 mm square geometry, 50 mm main chords, 25 mm diagonal bracing, EN AW-6082 T6 aluminum alloy, and brushed-aluminum finish. It is intended to create a repeatable short adjustment inside a compatible truss run. The included hardware supports the spacer’s conical interfaces; it does not independently establish the load rating or suitability of the completed assembly.

190 mm Straight Segment
Provides a precise 0.19 m / 0.62 ft adjustment for modular layouts.
EN AW-6082 T6 Aluminum
Uses the documented aluminum-alloy construction for this spacer component.
50 mm Clamp Context
The 50 mm main chords may accept compatible clamps where their placement and loading are approved for the completed structure.
Brushed Aluminum Finish
Maintains a natural metallic appearance alongside compatible brushed-aluminum truss sections.

Technical Details

EVT290X-019 Factual Product Reference.

Identification

Product Information

Model / SKUEVT290X-019
BrandEvolve Truss
Product TypeSquare Aluminum Truss Spacer
CertificationTUV Certified

Overall Dimensions

Spacer Geometry

Length190 mm / 7.48 in / 0.62 ft
Width290 mm / 11.41 in
Height290 mm / 11.41 in
Weight10.56 lb / 4.78 kg

Tube Construction

Chord and Brace Sizes

Main Chords50 mm OD x 3 mm Wall
Diagonal Braces25 mm OD x 3 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishBrushed Aluminum

Connection Hardware

Included Components

Couplers4 Included
Coupler Pins8 Included
R-Clips8 Included
Connection SystemConical Connection System

System Compatibility

EVT290S, F34, and Compatible 290 mm Square Truss Systems.

The EVT290X-019 uses 290 mm square-truss geometry, 50 mm main chords, and a conical connection system. It is intended for compatible EVT290S, F34, and standard 290 mm square-truss systems with matching receiver spacing and conical interface geometry. Compatibility must be verified at the actual connection, including receiver geometry, coupler dimensions, full conical seating, and engineering data for the completed configuration.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections and related 290 mm square-truss components.
F34 Compatibility
Compatible with matching F34 290 mm square-truss geometry and conical receiver interfaces when the actual connection fits correctly.
Standard 290 mm Square Systems
May fit compatible standard 290 mm square systems using matching conical receiver geometry. Verify the physical interface before combining separately sourced or mixed-brand components.
Clamp Context
Compatible 50 mm clamps may be used on the main chords where their placement and loading are approved for the completed structure.

Assembly Planning

Installing the Spacer in a Compatible 290 mm Square Truss Run.

This spacer is one component of a completed truss assembly. Before use, verify the finished layout dimension, compatible truss geometry, component condition, full conical seating, hardware engagement, support conditions, and the approved load plan for the complete system.

01 — Confirm the Required Length
Verify that a 190 mm spacer produces the intended finished dimension before assembly.
02 — Inspect All Components
Check the spacer, receivers, included couplers, included coupler pins, and included r-clips for damage or deformation.
03 — Align the Truss Geometry
Confirm the mating truss uses matching 290 mm square geometry and receiver spacing.
04 — Seat the Couplers
Bring the sections together evenly without forcing or misaligning the conical connections.
05 — Install Pins and R-Clips
Fully secure every connection with the included coupler pins and included r-clips before applying load.
06 — Complete the Final Inspection
Verify alignment, hardware engagement, system geometry, support conditions, and the approved load plan before use.

Safety and Loading

Spacer Length Does Not Establish Allowable System Loading.

The 190 mm spacer is a dimensional component within a larger truss assembly. It does not independently establish the allowable span, capacity, rigging condition, support arrangement, wind suitability, or load rating of the completed structure. Allowable loading depends on the complete truss system, total span, support conditions, orientation, applied loads, connection details, and the applicable manufacturer data or required project-specific engineering review.

Use the applicable manufacturer load tables and engineering data for the complete assembled structure.
Do not support loads directly from truss connection points unless the complete configuration is designed and approved for the actual load arrangement.
Inspect the spacer, welds, main chords, diagonal braces, couplers, coupler pins, and r-clips before every use.
Do not use bent, cracked, heavily worn, or otherwise damaged components.
Account for dynamic, transverse, seismic, and environmental forces, including wind loads, in the complete structural plan.
Assembly should be completed by trained truss personnel and reviewed by a licensed professional engineer where required.

Evidence and Review

What This Page Confirms, and What the Installed Structure Must Still Establish.

This page confirms the documented product facts: 190 mm / 7.48 in length, 290 x 290 mm square geometry, 50 mm OD x 3 mm main chords, 25 mm OD x 3 mm diagonal bracing, EN AW-6082 T6 aluminum construction, brushed-aluminum finish, 10.56 lb / 4.78 kg weight, TUV certification, and included connection hardware. It does not establish allowable span, capacity, suspension method, support design, rigging configuration, wind suitability, attachment load, or stability for a specific completed structure.

Confirmed Product Facts
190 mm straight spacer, 290 mm square geometry, 50 mm main chords, 25 mm diagonal braces, EN AW-6082 T6 aluminum, brushed finish, TUV certification, and included conical connection hardware.
Included Hardware
Four included couplers, eight included coupler pins, and eight included R-Clips support the spacer’s conical interfaces.
Installation-Specific Facts
System span, orientation, support condition, suspension, attachment loads, clamp placement, rigging hardware, wind exposure, and public-access controls must be determined for the specific installation.
Evidence Worth Retaining
Keep the current product drawing, manufacturer load data, completed layout, component and hardware schedule, inspection record, photos, and required approvals with the project file.
Documentation and Project Review
Product information on this page is based on current product documentation and is subject to change. Verify the current product drawing, included hardware, compatibility, and installation instructions before ordering or assembling. For suspended, public-facing, outdoor, or load-bearing structures, obtain the project-specific review required by the applicable authority and design professional.

Frequently Asked Questions

EVT290X-019 Questions.

How long is the EVT290X-019?

The spacer is 190 mm / 7.48 in long, which is approximately 0.19 m / 0.62 ft. It fills the gap between the 180 mm and 230 mm spacer options.

What is the outside truss size?

The documented square geometry is 290 x 290 mm / 11.41 x 11.41 in.

What tubing sizes are used?

The main chords are 50 mm outside diameter with a 3 mm wall, and the diagonal braces are 25 mm outside diameter with a 3 mm wall.

How much does the spacer weigh?

The documented product weight is 10.56 lb / 4.78 kg.

What connection hardware is included?

The spacer includes four couplers, eight coupler pins, and eight R-Clips for its conical connection interfaces.

Is it compatible with EVT290S and F34?

It is intended for compatible EVT290S, F34, and standard 290 mm square-truss systems when receiver spacing, coupler dimensions, geometry, and engineering data match the connected system.

Can I use 50 mm clamps on this spacer?

Compatible 50 mm clamps may be used on the main chords where their placement and loading are approved for the completed structure.

Does the spacer determine the load rating of the completed truss structure?

No. Allowable loading depends on the complete truss system, span, supports, orientation, connections, applied loads, and applicable manufacturer data or required project-specific engineering review.

Need the correct spacer length for a planned 290 mm square-truss layout?

Contact us for compatibility checks, dimensional layout coordination, included-hardware confirmation, technical documents, manufacturer load-data coordination, engineering coordination, and quantity pricing.
