EVT290X-022 0.72-Foot / 0.22-Meter Heavy Duty Truss Spacer for Rigging and Mounting.

EVT290X-022 | 0.72ft (0.22m)

Original price was: $419.00.Current price is: $279.00.

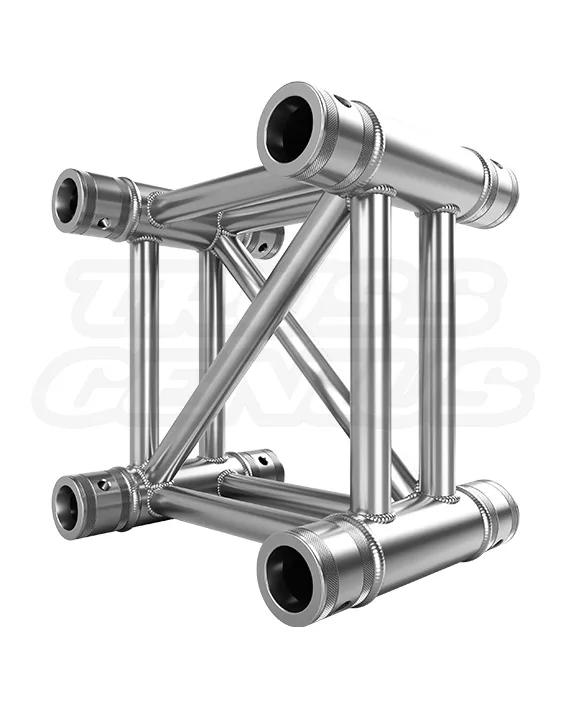

EVT290X-022 — 0.22 Meter (0.72 ft) Square Aluminum Conical Truss Spacer

Dimensions
Overall Truss Length: 0.72 ft (0.22 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.11 in (3 mm) Wall Thickness
Brace Tubing: 0.98 in (25 mm) Diagonal Bracing with 0.11 in (3 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 10.89 lb (4.93 kg)

In stock

SKU: EVT290X-022 Category:

220 mm Square Aluminum Truss Spacer

220 mm Truss Spacer for Closing Short Gaps in Modular Layouts.
Heavy-Duty 290 mm Square Truss Geometry with Conical Connections.

The EVT290X-022 is a 0.22 m / 0.72 ft square aluminum truss spacer designed for precise dimensional adjustments in compatible EVT290S, F34, and standard 290 mm square truss systems. Its 220 mm length provides a practical short-section adjustment when a truss run falls just below the required overall dimension.

Product Facts

ModelEVT290X-022
Length0.22 m / 0.72 ft
Truss Size290x290 mm
Weight10.89 lb / 4.94 kg
MaterialEN AW-6082 T6 Aluminum
CertificationTUV Certified
220 mmOverall Length
290 mmSquare Truss Size
50x3 mmMain Chords
25x3 mmDiagonal Braces
10.89 lbProduct Weight

Product Overview

A Short Truss Spacer for Exact Modular Dimensions.

The EVT290X-022 adds 220 mm / 8.66 in to a compatible 290 mm square truss run, making it useful when standard lengths leave a small dimensional gap.

220 mm Layout Adjustment
Adds a precise 8.66 in segment without requiring a longer standard truss section.
Heavy-Duty Tube Geometry
Uses 50x3 mm main chords and 25x3 mm diagonal bracing.
Conical Connection System
Connects with compatible couplers, tapered pins, and R-clips for repeatable assembly.
Brushed Aluminum Finish
Maintains a clean appearance alongside natural-finish 290 mm square truss sections.

Applications

Designed for Precision Truss Layouts and Modular Adjustments.

Trade Show Structures
Helps close short dimensional gaps in booths, frames, and branded displays.
Lighting Grids
Provides a compact adjustment section where standard truss lengths do not match the planned span.
Stage Structures
Supports engineered layout refinements in compatible modular truss systems.
Arch and Frame Closures
Useful where a small additional section is required to complete an approved geometry.
Custom Modular Builds
Adds flexibility to reusable systems with fixed dimensional requirements.

Who It Is For

Built for Production, Exhibit, Rental, Lighting, and Integration Teams.

Exhibit Builders
For booths and branded frames requiring precise finished dimensions.
Lighting Technicians
For minor span adjustments within compatible lighting-grid layouts.
Rental Companies
For reusable spacer inventory that expands system configuration options.
AV Integrators
For controlled dimensional adjustments in permanent and temporary structures.
Production Teams
For approved truss structures assembled by trained personnel.

Functional Details

Compact Length with Full-Size 290 mm Square Truss Geometry.

220 mm Straight Segment
Provides a compact 0.22 m / 0.72 ft adjustment for modular layouts.
EN AW-6082 T6 Aluminum
Uses a high-strength aluminum alloy commonly specified for professional truss construction.
TUV Certified
The current product specifications identify this spacer as TUV certified.
50 mm Clamp Compatibility
The 50 mm main chords accept compatible professional truss clamps where the approved load plan permits.

Technical Details

Detailed Specifications.

Identification

Product Information

Model / SKUEVT290X-022
Product TypeSquare Aluminum Truss Spacer
CertificationTUV Certified

Overall Dimensions

Spacer Geometry

Length220 mm / 8.66 in / 0.72 ft
Width290 mm / 11.41 in
Height290 mm / 11.41 in
Weight10.89 lb / 4.94 kg

Tube Construction

Chord and Brace Sizes

Main Chords50 mm OD x 3 mm Wall
Diagonal Braces25 mm OD x 3 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishBrushed Aluminum

Connection System

Included Hardware

Connection TypeConical Connection System
Included ComponentsCouplers, Tapered Pins, and R-Clips

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

EVT290X-022 uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections and related 290 mm square components.
F34 Compatibility
Compatible with matching F34 290 mm square truss geometry and conical hardware.
Standard 290 mm Square Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
50 mm Clamp Compatibility
Compatible 50 mm clamps may be used on the main chords where permitted by the approved loading and rigging plan.

Assembly Planning

Installing the Spacer in a Compatible 290 mm Square Truss Run.

01 — Confirm the Required Length
Verify that the 220 mm spacer produces the intended finished dimension before assembly.
02 — Inspect All Components
Check the spacer, receivers, couplers, tapered pins, and R-clips for damage or deformation.
03 — Align the Truss Geometry
Confirm the mating truss uses matching 290 mm square geometry and receiver spacing.
04 — Seat the Couplers
Bring the sections together evenly without forcing or misaligning the conical connections.
05 — Install Pins and R-Clips
Fully secure every connection with the correct tapered pins and retaining clips.
06 — Complete the Final Inspection
Verify alignment, hardware engagement, system geometry, and the approved load plan before use.

Safety and Loading

Spacer Length Does Not Establish Allowable System Loading.

Allowable loading depends on the complete truss system, total span, support conditions, orientation, and applied loads.
Use the applicable manufacturer load tables and engineering data for the complete assembled structure.
Do not support loads directly from truss connection points.
Inspect the spacer, welds, chords, braces, couplers, tapered pins, and R-clips before every use.
Do not use bent, cracked, heavily worn, or otherwise damaged components.
Account for dynamic, transverse, seismic, and environmental forces, including wind loads.
Assembly should be completed by trained truss personnel and reviewed by a licensed professional engineer where required.

Frequently Asked Questions

EVT290X-022 Questions.

How long is the EVT290X-022?
The spacer is 220 mm / 8.66 in long, which is approximately 0.22 m / 0.72 ft. Its even 220 mm length is useful when a clean 20 cm increment is required.
What is the outside truss size?
The documented square geometry is 290x290 mm / 11.41x11.41 in.
What tubing sizes are used?
The main chords are 50 mm outside diameter with a 3 mm wall, and the diagonal braces are 25 mm outside diameter with a 3 mm wall.
What connection hardware is included?
The current product specifications list conical couplers, tapered pins, and R-clips.
Is it compatible with EVT290S and F34?
Yes, when the receiver spacing, coupler dimensions, geometry, and engineering data match the connected 290 mm square truss system.
Can I use 50 mm clamps on this spacer?
The 50 mm main chords accept compatible 50 mm clamps where their placement and loading are approved for the completed structure.

Need the correct spacer length for your truss layout?

Contact us for compatibility checks, dimensional planning, system matching, engineering coordination, and quantity pricing.
