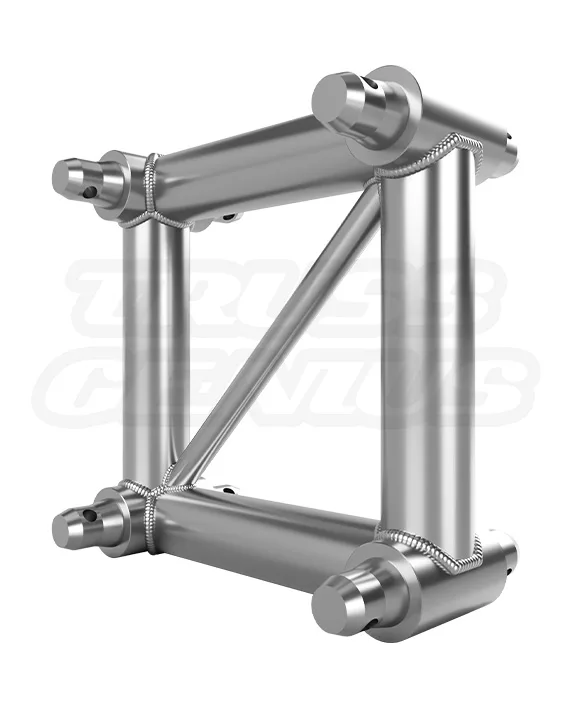

EVT290X-082CS 0.26-Foot Heavy Duty Truss Spacer - Durable Aluminum Truss Spacer, TUV-Certified

EVT290X-082CS | 0.26ft (0.082m)

Original price was: $441.00.Current price is: $294.00.

EVT290X-082CS — 0.082 Meter (0.26 ft) Heavy-Duty Square Aluminum Conical Truss Spacer

Dimensions
Overall Truss Length: 0.26 ft (0.082 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.11 in (3 mm) Wall Thickness
Brace Tubing: 0.98 in (25 mm) Diagonal Bracing with 0.11 in (3 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 7.71 lb (3.49 kg)

In stock

SKU: EVT290X-082CS Category:

82 mm Brushed Aluminum Square Truss Spacer Knowledge Center

82 mm Truss Spacer for 290 mm Systems.
A Short Conical Section for Precise Length Adjustment.

The EVT290X-082CS is an 82 mm / 3.23 in / 0.082 m / 0.26 ft brushed-aluminum truss spacer for precise length adjustment in compatible 290 mm square-truss runs. Its 290 x 290 mm geometry, 50 mm OD x 3 mm main chords, 25 mm OD x 3 mm diagonal bracing, EN AW-6082 T6 aluminum construction, brushed-aluminum finish, TUV certification, and integrated conical coupler portions support compatible system assembly. Includes 4 Coupler Pins and 4 R-Clips. The spacer does not independently establish allowable span, capacity, rigging condition, wind suitability, or loading for the completed structure.

Identity and Core Facts

Model / SKUEVT290X-082CS
Product ClassBrushed Aluminum Truss Spacer
Length82 mm / 3.23 in / 0.26 ft
Truss Size290 x 290 mm / 11.41 x 11.41 in
Weight7.71 lb / 3.49 kg
CertificationTUV Certified
82 mmOverall Length
290 mmSquare Truss Size
50 x 3 mmMain Chords
25 x 3 mmDiagonal Braces
7.71 lbProduct Weight

Product Overview

A Short Truss Spacer for Precise Length Adjustment.

The EVT290X-082CS adds 82 mm / 3.23 in to a compatible 290 mm square-truss run. Its short conical section is intended for precise length adjustment where a standard truss section would add more distance than the layout requires. It is a truss component within the finished system—not a stand-alone solution for span, capacity, rigging, stability, or support design.

82 mm Length Adjustment
Adds a 3.23 in truss section where a short incremental length is needed.
Brushed Aluminum Finish
Maintains a natural aluminum appearance alongside compatible brushed-aluminum truss sections.
Built-in Conical Coupler Portions
The conical coupler portions are integrated into the spacer; no separate couplers are included or required.
Included Hardware
Includes 4 Coupler Pins and 4 R-Clips.

Applications

Designed for Short-Length Truss Adjustments.

Use the EVT290X-082CS where a complete truss design needs a short 82 mm intermediate section. Typical applications include trade-show structures, lighting grids, stage structures, arch and frame closures, booth layouts, presentation structures, and custom assemblies where a standard truss section would add too much length. Final configuration, orientation, supports, attachments, loads, and rigging must be reviewed for the actual structure.

Display Structures
Helps preserve a consistent brushed-aluminum appearance while refining planned layout dimensions.
Lighting Grids
Provides a short adjustment section where standard truss lengths do not match the planned grid dimension.
Stage Structures
Supports planned layout refinements in compatible brushed-aluminum truss systems.
Arch and Frame Closures
Useful where a short additional section is required to complete an approved geometry.

Functional Details

Short Length with Full-Size 290 mm Square Truss Geometry.

The spacer combines an 82 mm straight segment with 290 mm square geometry, 50 mm main chords, 25 mm diagonal bracing, EN AW-6082 T6 aluminum alloy, brushed-aluminum finish, and integral conical coupler portions. It is intended to create a repeatable short adjustment inside a compatible truss run. It includes 4 Coupler Pins and 4 R-Clips for the integrated connection ends; it does not independently establish the load rating or suitability of the completed assembly.

82 mm Straight Segment
Provides a precise 0.082 m / 0.26 ft length adjustment in compatible truss runs.
EN AW-6082 T6 Aluminum
Uses the documented aluminum-alloy construction for this spacer component.
Built-in Conical Coupler Portions
The conical coupler portions are integrated into the spacer; no separate couplers are included or required.
50 mm Clamp Context
The 50 mm main chords may accept compatible clamps where their placement and loading are approved for the completed structure.

Technical Details

EVT290X-082CS Factual Product Reference.

Identification

Product Information

Model / SKUEVT290X-082CS
BrandEvolve Truss
Product TypeBrushed Aluminum Truss Spacer
CertificationTUV Certified

Overall Dimensions

Spacer Geometry

Length82 mm / 3.23 in / 0.26 ft
Width290 mm / 11.41 in
Height290 mm / 11.41 in
Weight7.71 lb / 3.49 kg

Tube Construction

Chord and Brace Sizes

Main Chords50 mm OD x 3 mm Wall
Diagonal Braces25 mm OD x 3 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishBrushed Aluminum

Connection Hardware

Included Components

Coupler PortionsBuilt into Spacer
Coupler Pins4 Included
R-Clips4 Included
Connection SystemConical Connection System

System Compatibility

EVT290S, F34, and Compatible 290 mm Square Truss Systems.

The EVT290X-082CS uses 290 mm square-truss geometry, 50 mm main chords, and built-in conical coupler portions. It is intended for compatible EVT290S, F34, and standard 290 mm square-truss systems with matching receiver spacing and conical interface geometry. Compatibility must be verified at the actual connection, including receiver geometry, full conical seating, pin engagement, and engineering data for the completed configuration.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections and related 290 mm square-truss components.
F34 Compatibility
Compatible with matching F34 290 mm square-truss geometry and conical receiver interfaces when the actual connection fits correctly.
Standard 290 mm Square Systems
May fit compatible standard 290 mm square systems using matching conical receiver geometry. Verify the physical interface before combining separately sourced or mixed-brand components.
Clamp Context
Compatible 50 mm clamps may be used on the main chords where their placement and loading are approved for the completed structure.

Assembly Planning

Installing the Spacer in a Compatible 290 mm Square Truss Run.

This spacer is one component of a completed truss assembly. Before use, verify the finished layout dimension, compatible truss geometry, component condition, full conical seating, hardware engagement, support conditions, and the approved load plan for the complete system.

01 — Confirm the Required Length
Verify that an 82 mm spacer produces the intended finished dimension before assembly.
02 — Inspect All Components
Check the spacer, built-in coupler portions, receivers, Coupler Pins, and R-Clips for damage or deformation.
03 — Align the Truss Geometry
Confirm the mating truss uses matching 290 mm square geometry and receiver spacing.
04 — Seat the Connection Ends
Bring the built-in conical ends and mating receivers together evenly without forcing or misalignment.
05 — Install Pins and R-Clips
Fully secure every connection with the 4 included Coupler Pins and 4 included R-Clips before applying load.
06 — Complete the Final Inspection
Verify alignment, hardware engagement, system geometry, support conditions, and the approved load plan before use.

Safety and Loading

Spacer Length Does Not Establish Allowable System Loading.

The 82 mm spacer is a dimensional component within a larger truss assembly. It does not independently establish the allowable span, capacity, rigging condition, support arrangement, wind suitability, or load rating of the completed structure. Allowable loading depends on the complete truss system, total span, support conditions, orientation, applied loads, connection details, and the applicable manufacturer data or required project-specific engineering review.

Use the applicable manufacturer load tables and engineering data for the complete assembled structure.
Do not support loads directly from truss connection points unless the complete configuration is designed and approved for the actual load arrangement.
Inspect the spacer, welds, main chords, diagonal braces, built-in coupler portions, Coupler Pins, and R-Clips before every use.
Do not use bent, cracked, heavily worn, or otherwise damaged components.
Account for dynamic, transverse, seismic, and environmental forces, including wind loads, in the complete structural plan.
Assembly should be completed by trained truss personnel and reviewed by a licensed professional engineer where required.

Evidence and Review

What This Page Confirms, and What the Installed Structure Must Still Establish.

This page confirms the documented product facts: 82 mm / 3.23 in length, 290 x 290 mm square geometry, 50 mm OD x 3 mm main chords, 25 mm OD x 3 mm diagonal bracing, EN AW-6082 T6 aluminum construction, brushed-aluminum finish, 7.71 lb / 3.49 kg weight, TUV certification, built-in conical coupler portions, and 4 included Coupler Pins with 4 included R-Clips. It does not establish allowable span, capacity, suspension method, support design, rigging configuration, wind suitability, attachment load, or stability for a specific completed structure.

Confirmed Product Facts
82 mm brushed-aluminum truss spacer, 290 mm square geometry, 50 mm main chords, 25 mm diagonal braces, EN AW-6082 T6 aluminum, TUV certification, and built-in conical connection portions.
Included Hardware
Includes 4 Coupler Pins and 4 R-Clips. The conical coupler portions are built into the spacer.
Installation-Specific Facts
System span, orientation, support condition, suspension, attachment loads, clamp placement, rigging hardware, wind exposure, and public-access controls must be determined for the specific installation.
Evidence Worth Retaining
Keep the current product drawing, manufacturer load data, completed layout, component and hardware schedule, inspection record, photos, and required approvals with the project file.
Documentation and Project Review
Product information on this page is based on current product documentation and is subject to change. Verify the current product drawing, built-in connection details, included hardware, compatibility, and installation instructions before ordering or assembling. For suspended, public-facing, outdoor, or load-bearing structures, obtain the project-specific review required by the applicable authority and design professional.

Frequently Asked Questions

EVT290X-082CS Questions.

How long is the EVT290X-082CS?

The spacer is 82 mm / 3.23 in long, which is approximately 0.082 m / 0.26 ft. It is intended for short precise length adjustments in a compatible 290 mm square-truss run.

What is the outside truss size?

The documented square geometry is 290 x 290 mm / 11.41 x 11.41 in.

Does this spacer include separate couplers?

No. The conical coupler portions are built into the spacer. Includes 4 Coupler Pins and 4 R-Clips.

What tubing sizes are used?

The main chords are 50 mm outside diameter with a 3 mm wall, and the diagonal braces are 25 mm outside diameter with a 3 mm wall.

How much does the spacer weigh?

The documented product weight is 7.71 lb / 3.49 kg.

Is it compatible with EVT290S and F34?

It is intended for compatible EVT290S, F34, and standard 290 mm square-truss systems when receiver spacing, conical interface geometry, and engineering data match the connected system.

Can I use 50 mm clamps on this spacer?

Compatible 50 mm clamps may be used on the main chords where their placement and loading are approved for the completed structure.

Does the spacer determine the load rating of the completed truss structure?

No. Allowable loading depends on the complete truss system, span, supports, orientation, connections, applied loads, and applicable manufacturer data or required project-specific engineering review.
