EVT290X-105CS 0.34-Foot Heavy Duty Truss Spacer - Durable Aluminum Truss Spacer, TUV-Certified

EVT290X-105CS | 0.34ft (0.105m)

Original price was: $451.00.Current price is: $300.00.

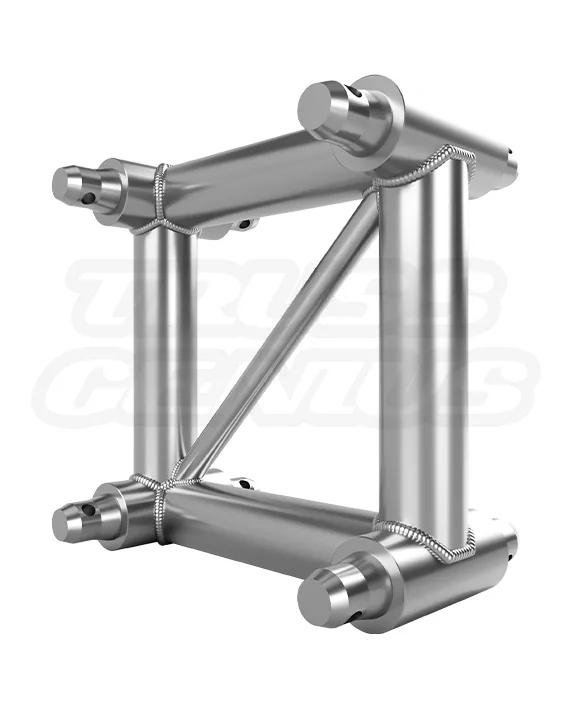

EVT290X-105CS — 0.105 Meter (0.34 ft) Heavy-Duty Square Aluminum Conical Truss Spacer

Dimensions
Overall Truss Length: 0.34 ft (0.105 m) Straight Segment
Overall Truss Width: 11.41 in (290 mm)

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.11 in (3 mm) Wall Thickness
Brace Tubing: 0.98 in (25 mm) Diagonal Bracing with 0.11 in (3 mm) Wall Thickness

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 8.69 lb (3.94 kg)

In stock

SKU: EVT290X-105CS Category:

105 mm Brushed Aluminum Truss Spacer Knowledge Center

105 mm Truss Spacer for F34 Systems.
Integrated Conical Connections for Compatible Truss Assembly.

The EVT290X-105CS is a 105 mm / 4.13 in / 0.105 m / 0.34 ft brushed-aluminum truss spacer for compatible F34 and 290 mm square-truss assemblies. Its 290 x 290 mm geometry, 50 mm OD x 3 mm main chords, 25 mm OD x 3 mm diagonal bracing, EN AW-6082 T6 aluminum construction, brushed-aluminum finish, TUV certification, and integrated conical coupler portions support compatible system assembly. Includes 4 Coupler Pins and 4 R-Clips. The spacer does not independently establish allowable span, capacity, rigging condition, wind suitability, or loading for the completed structure.

Identity and Core Facts

Model / SKUEVT290X-105CS
Product ClassBrushed Aluminum Truss Spacer
Length105 mm / 4.13 in / 0.34 ft
Truss Size290 x 290 mm / 11.41 x 11.41 in
Weight8.69 lb / 3.94 kg
CertificationTUV Certified
105 mmOverall Length
290 mmSquare Truss Size
50 x 3 mmMain Chords
25 x 3 mmDiagonal Braces
8.69 lbProduct Weight

Product Overview

A 105 mm Spacer for F34 Truss Assemblies.

The EVT290X-105CS adds a measured 105 mm / 4.13 in section within a compatible F34 or 290 mm square-truss layout. It is useful when a truss design calls for a defined intermediate length between larger standard sections. The spacer’s integrated conical connection portions provide the connection interface at both ends; it is not a stand-alone determination of span, capacity, rigging, stability, or support design.

105 mm Intermediate Section
Adds a documented 4.13 in length increment to compatible F34 truss assemblies.
Brushed Aluminum Finish
Matches the natural aluminum appearance of compatible brushed-finish truss sections.
Integrated Conical Connections
Conical coupler portions are built into the spacer for compatible truss assembly.
Included Hardware
Includes 4 Coupler Pins and 4 R-Clips.

Applications

Where a 105 mm Section Completes the Design Dimension.

The 105 mm spacer can be used in compatible F34 and 290 mm square-truss configurations where the calculated layout calls for a 0.105 m intermediate section. Typical applications include trade-show frames, exhibit structures, lighting grids, stage geometry, and repeated truss assemblies with dimension-specific requirements. The appropriate connection arrangement, support conditions, attachments, loads, and rigging must be determined for the complete installed structure.

Dimension-Specific Frames
Useful where a frame or display calculation calls for a 105 mm intermediate length.
F34 Lighting Grids
Provides a defined short section within compatible planned lighting-grid geometry.
Exhibit Structures
Supports repeatable system dimensions for booth frames and presentation structures.
Scenic Assemblies
Offers a measured connection segment for approved scenic or stage framework layouts.

Functional Details

F34 Geometry with Integrated Conical Connections.

The EVT290X-105CS carries a 290 x 290 mm square-truss profile in a 105 mm-long section. It uses 50 mm OD x 3 mm main chords, 25 mm OD x 3 mm diagonal bracing, EN AW-6082 T6 aluminum, and a brushed-aluminum finish. Built-in conical coupler portions create the interface for compatible connection points; four Coupler Pins and four R-Clips are included to secure those connections. These facts describe the component and do not substitute for load data or project-specific system review.

290 mm Square Profile
Maintains the documented F34-style 290 x 290 mm geometry through the spacer section.
50 mm Main Chords
Uses 50 mm OD x 3 mm-wall main chord tubing.
25 mm Diagonal Bracing
Uses 25 mm OD x 3 mm-wall diagonal brace tubing.
Built-In Connection Ends
Conical coupler portions are integral to the spacer; no loose couplers are provided.

Technical Details

EVT290X-105CS Factual Product Reference.

Identification

Product Information

Model / SKUEVT290X-105CS
BrandEvolve Truss
Product TypeBrushed Aluminum Truss Spacer
CertificationTUV Certified

Overall Dimensions

Spacer Geometry

Length105 mm / 4.13 in / 0.34 ft
Width290 mm / 11.41 in
Height290 mm / 11.41 in
Weight8.69 lb / 3.94 kg

Tube Construction

Chord and Brace Sizes

Main Chords50 mm OD x 3 mm Wall
Diagonal Braces25 mm OD x 3 mm Wall
MaterialAluminum Alloy EN AW-6082 T6
FinishBrushed Aluminum

Connection Hardware

Included Components

Coupler PortionsBuilt into Spacer
Coupler Pins4 Included
R-Clips4 Included
Connection SystemConical Connection System

System Compatibility

F34, EVT290S, and Compatible 290 mm Square Truss Systems.

The EVT290X-105CS has 290 mm square-truss geometry, 50 mm main chords, and built-in conical coupler portions. It is intended for compatible F34, EVT290S, and standard 290 mm square-truss systems with matching receiver spacing and conical interface geometry. Confirm actual receiver geometry, full conical seating, pin engagement, and manufacturer or engineering data before combining separately sourced or mixed-brand components.

F34 System Context
Designed for use where the mating F34 connection geometry and receiver spacing match.
EVT290S Compatibility
Integrates with compatible EVT290S sections and related 290 mm square-truss components.
Matched Conical Interfaces
Connection suitability requires matching interfaces, proper seating, pins, and R-Clips.
50 mm Clamp Context
Use compatible 50 mm clamps only where placement and loading are approved for the complete structure.

Assembly Planning

Installing a 105 mm Section in an F34 Truss Layout.

Plan the 105 mm segment as part of the whole F34 truss layout, not as an independent structural element. Verify that its placement produces the specified finished dimension and that the mating components, connection interfaces, support arrangement, and loading plan are appropriate for the completed assembly.

01 — Verify the Layout Dimension
Confirm that the drawing or field measurement calls for the 105 mm segment at that location.
02 — Review Component Condition
Inspect the spacer, integrated connection portions, receivers, Coupler Pins, and R-Clips before assembly.
03 — Match Interfaces
Confirm compatible F34 or 290 mm square-truss receiver spacing and conical interface geometry.
04 — Seat Connections Fully
Align each integrated conical end and mating receiver without forcing the connection.
05 — Secure the Hardware
Install the 4 included Coupler Pins and 4 included R-Clips as required for the connected ends.
06 — Inspect the Assembly
Confirm connection engagement, geometry, supports, and the approved load plan before use.

Safety and Loading

The Spacer Is a Component, Not a System Load Rating.

A 105 mm spacer does not independently determine allowable span, distributed or point load capacity, suspension method, support arrangement, wind suitability, or overall structural stability. Those decisions depend on the complete truss configuration, the connected components, orientation, support locations, attachments, rigging hardware, environmental conditions, and applicable manufacturer data or project-specific engineering review.

Use the applicable manufacturer load tables and engineering data for the complete assembled structure.
Do not support loads from a connection point unless the complete configuration is designed and approved for that arrangement.
Inspect the spacer, welds, main chords, diagonal braces, built-in connection portions, Coupler Pins, and R-Clips before every use.
Remove damaged, bent, cracked, heavily worn, or improperly fitting components from service.
Account for dynamic, transverse, seismic, and environmental forces, including wind, in the complete structural plan.
Use trained truss personnel and obtain licensed professional-engineer review where required.

Evidence and Review

Documented Component Facts and Site-Specific Decisions.

This page documents the EVT290X-105CS component: 105 mm / 4.13 in length; 290 x 290 mm square geometry; 50 mm OD x 3 mm main chords; 25 mm OD x 3 mm diagonal bracing; EN AW-6082 T6 aluminum; brushed-aluminum finish; 8.69 lb / 3.94 kg weight; TUV certification; built-in conical coupler portions; and 4 included Coupler Pins with 4 included R-Clips. It does not validate a particular span, rigging plan, support scheme, attachment load, weather condition, or final structural capacity.

Documented Facts
The model, dimensions, tubing, material, finish, weight, certification, integrated connection portions, and included hardware are product attributes.
Connection Verification
Actual receiver spacing, conical seating, Coupler Pin engagement, and R-Clip retention must be checked during assembly.
System Decisions
Span, orientation, supports, suspension, attachments, loads, rigging hardware, wind exposure, and public-access controls are project-specific.
Project Record
Retain current drawings, manufacturer load data, layout documents, component schedules, inspection records, photographs, and required approvals.
Documentation and Project Review
Product information on this page is based on current product documentation and is subject to change. Verify the current product drawing, built-in connection details, included hardware, compatibility, and installation instructions before ordering or assembling. For suspended, public-facing, outdoor, or load-bearing structures, obtain the project-specific review required by the applicable authority and design professional.
