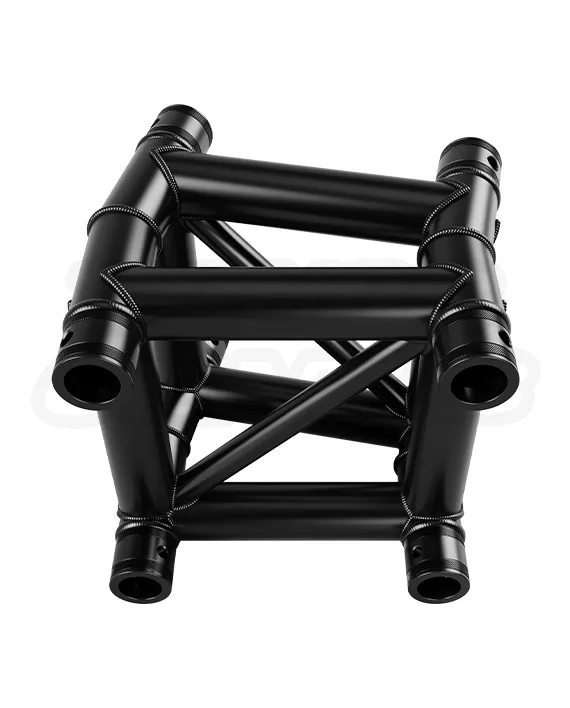

EVT290X‑12DA Black — 12 degree fixed‑angle aluminum corner for F34 (290 mm) square‑truss systems
EVT290X‑12DA Black — dimensional drawing showing 12 degree fixed‑angle corner layout and measurements
EVT290X‑12DA Black — 12 degree fixed‑angle aluminum corner for F34 (290 mm) square‑truss systems
EVT290X‑12DA Black — dimensional drawing showing 12 degree fixed‑angle corner layout and measurements

EVT290X-12DA Black | 12° Corner

Original price was: $601.00.Current price is: $420.00.

EVT290X-12DA Black — 12-Degree Fixed 2-Way Corner Square Aluminum Truss (Matte Black)

Dimensions
Overall Truss Length: 11.75 in (298.45 mm)
Overall Truss Width: 11.41 in (290 mm)
Angle: 12-Degrees

Construction (Heavy-Duty)
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.11 in (3 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.08 in (2 mm) Wall Thickness

Finish & Features
Surface: Matte Black Powder Coat Finish
Certification: TUV certified
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)
Compatibility: Fits F34, EVT290S, and all standard 290mm Square Truss systems
Weight: 8.0 lb (3.62 kg)

In stock

SKU: EVT290X-12DA-Black Category:

EVT290X Truss Systems Knowledge Center

EVT290X-12DA Black 2-Way 12-Degree Corner.
For F34 Square Truss Systems.

The EVT290X-12DA Black is a matte-black fixed 2-way, 12-degree corner for compatible F34-format and matching 290 mm square truss systems. It creates a defined 12-degree directional change where a planned sloped truss roof, canopy, stage, exhibit, lighting, AV, or display layout requires a fixed-angle section. Within a complete reviewed truss design, the corner can contribute to a planned rise over a horizontal run.

Product Facts

Model / SKUEVT290X-12DA Black
Corner ConfigurationFixed 2-Way 12° Corner
Overall Size298.88 × 320.64 × 297.55 mm
Truss Profile290 mm / 11.41 in Square
Component Weight8 lb / 3.63 kg
FinishMatte Black Powder Coat
12°Fixed Corner Angle
2-WayCorner Configuration
290 mmSquare Truss Profile
8 lbComponent Weight
1 SideHardware Included

12-Degree Corner Overview

A Fixed 2-Way Corner for a Planned Truss Directional Change.

The EVT290X-12DA Black is a fixed 2-way, 12-degree corner for compatible 290 mm square aluminum truss layouts. It changes the direction of one truss run by a fixed 12 degrees. It is not a variable-angle corner, a multi-way junction, a straight truss section, or a universal truss connector.

Fixed 12-Degree Angle
Provides a fixed 12-degree change in direction for a planned truss layout.
Two Connection Directions
Connects two compatible truss sections in the specified fixed-angle configuration.
Fixed Configuration
The corner angle is fixed. Use this component only where the project drawing calls for a 12-degree directional change.
Matte Black Finish
The matte black powder-coat finish is suited to visible truss layouts where the structure should visually recede.

What Does a 12-Degree Corner Connect?

Two Compatible Truss Runs at a Fixed 12-Degree Change.

The EVT290X-12DA Black connects two compatible truss directions. The corner establishes a fixed 12-degree directional change between the mating truss runs. In a complete planned configuration, that angle can be used as a fixed-angle section within a sloped roof or canopy layout.

First Truss Direction
Use one receiver direction to connect the first compatible truss run specified by the project drawing.
Second Truss Direction
Use the second receiver direction to continue the truss line at the fixed 12-degree change.
Planned Rise Over Run
The fixed angle can contribute to a planned rise over a horizontal run when incorporated into a complete reviewed truss design.
System Limits
The corner defines component geometry. It does not independently establish the completed system’s support, span, drainage, wind, or loading limits.

Where Is This 12-Degree Corner Used?

For Planned Sloped Truss Layouts with a Fixed 12-Degree Transition.

Use the EVT290X-12DA Black in compatible truss layouts where a planned roofline, canopy line, stage structure, exhibit, lighting framework, AV structure, or display requires a fixed 12-degree directional change. The matte black finish is suited to production, event, exhibit, stage, lighting, AV, and display environments where black truss is preferred.

01
Sloped Truss Roof Frames
Use in a planned roof-frame geometry where a fixed 12-degree truss transition is specified.
02
Canopy Structures
Use in a planned canopy truss layout requiring a controlled fixed-angle transition.
03
Stage and Scenic Structures
Use in compatible stage frames, scenic structures, backdrop systems, and presentation layouts with black truss.
04
Lighting and AV Frameworks
Use in planned lighting, video, camera, projection, audio, and cable-management truss layouts.

Why Choose Matte Black?

Choose a Finish That Helps the Truss Visually Recede.

Choose the EVT290X-12DA Black when the fixed-angle corner must match black truss components or when the truss should remain less visually prominent in a stage, exhibit, lighting, AV, display, or production environment. Matte black is a finish choice; it does not alter the component’s geometry, connection requirements, or project-specific engineering needs.

Match Black Truss
Use with compatible black truss sections and components where a coordinated dark finish is required.
Reduce Visual Presence
Select matte black where exposed truss should visually recede within the stage, exhibit, or display environment.
Different From Brushed Aluminum
Brushed aluminum is selected for a visible natural-metal appearance. Matte black is selected for a darker visual treatment.
Finish Does Not Set Capacity
Finish selection does not change load capacity, connection requirements, inspection requirements, engineering review, or safety obligations.

Included Connection Hardware

Hardware for One Connecting Side Only.

Included connection hardware is supplied for one connecting side of the EVT290X-12DA Black. The 2-way configuration does not mean hardware is included for both available connection directions. Confirm the current product package, project drawing, and connection schedule for the exact supplied hardware and for any additional compatible hardware required.

4 Conical Couplers
The supplied hardware set includes four conical couplers for one connecting side.
8 Coupler-Pins and 8 R-Clips
The supplied hardware set includes eight coupler-pins and eight R-clips for one connecting side.
Additional Hardware
Additional compatible conical couplers, coupler-pins, and R-clips may be required for the other connection position.

Technical Reference

EVT290X-12DA Black Specifications.

These values identify the EVT290X-12DA Black product. Confirm current manufacturer drawings, instructions, connection hardware, component condition, and technical documentation before ordering or assembling a compatible system.

Identification

Product Details

Model / SKUEVT290X-12DA Black
Product TypeFixed 2-Way 12-Degree Corner
Fixed Angle12 Degrees

Overall Size

Dimensions

Overall Width298.88 mm
Overall Height320.64 mm
Overall Depth297.55 mm
Weight8 lb / 3.63 kg

Construction

Material and Finish

MaterialAluminum Alloy EN AW-6082 T6
FinishMatte Black Powder Coat
Truss Profile290 mm / 11.41 in Square

Connections

System Interface

Corner Configuration2-Way Fixed Angle
Connection TypeConical Coupler System
Included Hardware ScopeOne Connecting Side Only
Included Hardware4 Couplers, 8 Pins, 8 R-Clips
CompatibilityFits F34, EVT290S, and all standard 290 mm Square Truss systems

System Compatibility

F34, EVT290S, and Compatible 290 mm Square Truss Systems.

The EVT290X-12DA Black has 290 mm square-truss geometry and conical connection receivers. It is intended for compatible F34, EVT290S, and standard 290 mm square-truss systems with matching receiver spacing and conical interface geometry. Confirm actual receiver geometry, full conical seating, pin engagement, component condition, and manufacturer or engineering data before combining separately sourced or mixed-brand components.

F34 System Context
Designed for use where the mating F34 connection geometry and receiver spacing match.
EVT290S Compatibility
Integrates with compatible EVT290S sections and related 290 mm square-truss components.
Matched Conical Interfaces
Connection suitability requires matching interfaces, full seating, coupler-pins, and R-clips.
50 mm Clamp Context
Use compatible 50 mm clamps only where placement and loading are approved for the complete structure.

How Is the 12-Degree Corner Connected?

Plan the Connection, Then Inspect Every Required Point.

Assembly should be completed by trained personnel using compatible components, the project drawing, the approved support or rigging plan, and sufficient hardware for every required connection. The supplied hardware covers one connecting side only.

01 — Inspect Components
Check chords, braces, welds, receivers, conical couplers, coupler-pins, and R-clips. Do not use damaged, worn, contaminated, or improperly fitting components.
02 — Confirm the Layout
Position the corner to match the approved 12-degree project layout before connection work begins.
03 — Plan Hardware
Use supplied hardware for its one included connecting side. Identify compatible hardware for every remaining required connection position.
04 — Align Mating Truss
Bring compatible truss faces together evenly. Connections should close without forcing, spreading, or pulling components into alignment.
05 — Secure the Connection
Fully install each required coupler-pin and secure every installed coupler-pin with its R-clip.
06 — Final Inspection
Verify retention, component condition, support planning, and the completed fixed-angle configuration before movement, lifting, rigging, or load application.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, debris, hardware condition, damage, and alignment. Do not modify the component or drive a coupler-pin against resistance.

Safety and Engineering

A Fixed 12-Degree Corner Is Not a Standalone Load, Span, or Roof Rating.

The EVT290X-12DA Black does not independently establish a span, load, wind, drainage, weatherproofing, suspension, freestanding-structure, roof, or canopy rating. Determine suitability from the complete configuration, including connected components, spans, orientation, supports, connection hardware, bracing, rigging method, applied loads, lighting, AV equipment, displays, signage, base plates, ballast or anchorage, coverings, environmental conditions, venue requirements, and applicable approvals.

Do not use a straight-section load-span table to independently rate this fixed-angle corner or the completed truss system.
Do not treat an individual corner as evidence that a sloped roof, canopy, stage structure, AV framework, exhibit structure, suspended configuration, or public-facing structure has adequate capacity.
Confirm project-specific support, rigging, bracing, base-plate, ballast, anchorage, covering, and drainage plans before erection or loading.
Assess wind, weather, banners, screens, displays, suspended equipment, public access, and other operational or environmental forces as part of the complete project review.
Inspect every conical coupler, coupler-pin, R-clip, clamp, base connection, sling, shackle, safety cable, and attachment point before use.
Use trained personnel and obtain the project-specific engineering, facility, venue, and regulatory review required for the intended use.
Documentation and Project Review
Product specifications, included hardware, compatibility information, pricing, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, component condition, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular entertainment-truss layout, span, loading condition, rigging plan, support arrangement, outdoor installation, suspended configuration, roof, canopy, drainage plan, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, theatrical, concert, touring, or otherwise regulated entertainment-truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Product Questions

EVT290X-12DA Black Frequently Asked Questions.

What is the EVT290X-12DA Black?

The EVT290X-12DA Black is a fixed 12-degree 2-way aluminum corner with a matte black powder-coat finish for compatible 290 mm square conical truss systems.

What hardware is included?

One hardware set is supplied for one connecting side: 4 conical couplers, 8 coupler-pins, and 8 R-clips. Confirm the current package and connection schedule for any additional compatible hardware required.

What truss systems are compatible?

It fits F34, EVT290S, and standard 290 mm square truss systems when receiver spacing, conical interface geometry, and all other relevant dimensions match. Mixed-brand fit should be verified before use.

Can the EVT290X-12DA Black be used in a sloped truss roof or canopy layout?

Its fixed 12-degree geometry can be incorporated into a sloped layout and can contribute to a planned rise over a horizontal run when the complete configuration is properly designed, reviewed, and approved for the intended use.

Building a Fixed 12-Degree Sloped Truss Layout?

The EVT290X-12DA Black connects two compatible truss directions at a fixed 12-degree angle for planned sloped roof, canopy, stage, exhibit, lighting, AV, and display structures. The matte black powder-coat finish suits layouts where black truss is preferred.

Contact UsRequest a Quote

Structural Solutions, Unmatched Innovation
