EVT290X-7DA | 7.5° Corner

Original price was: $541.00.Current price is: $360.00.

EVT290X-7DA — 7.5-Degree Fixed Angle 2-Way Corner

Dimensions & Specs

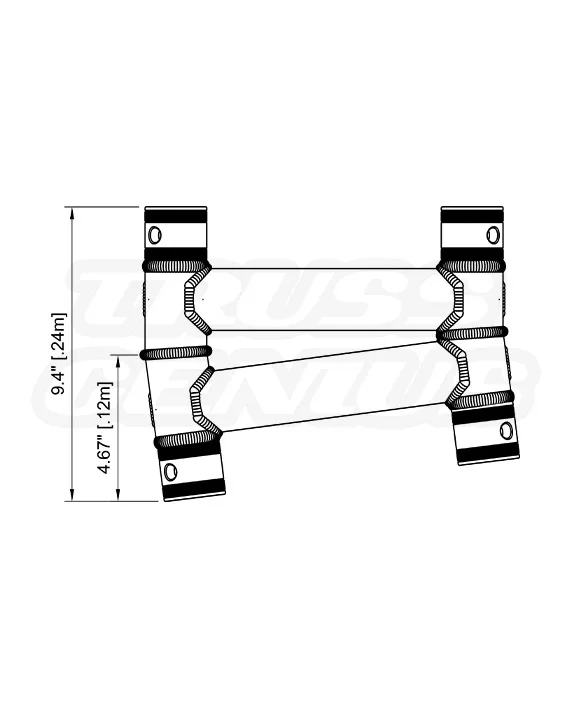

Overall Length: 9.4 in (238.76 mm)
Overall Width: 11.41 in (290 mm)
Angle: 7.5-Degrees
Type: Fixed Angle 2-Way Corner

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) OD / 0.11 in (3 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) / 0.078 in (2 mm) Wall Thickness
Series: Heavy-Duty Square Aluminum Truss

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV Certified
Included: Connecting hardware
Weight: 8.0 lb (3.62 kg)

In stock

SKU: EVT290X-7DA Category:

EVT290X Truss Systems Knowledge Center

EVT290X-7DA 2-Way 7.5-Degree Corner.
For F34 Square Truss Systems.

The EVT290X-7DA is a brushed-aluminum fixed 2-way, 7.5-degree corner for compatible F34, EVT290S, and matching 290 mm square truss systems. It provides a fixed 7.5-degree pitch angle for shallow-pitch truss rooflines, canopy frames, outdoor truss systems, sloped truss systems, pitched truss systems, and custom truss solutions.

Product Facts

Model / SKUEVT290X-7DA
Corner ConfigurationFixed 2-Way 7.5° Corner
Overall Size309.4 × 238.88 × 297.98 mm
Truss Profile290 mm / 11.41 in Square
Component Weight8 lb / 3.62 kg
FinishBrushed Aluminum
7.5°Fixed Pitch Angle
2-WayCorner Configuration
290 mmSquare Truss Profile
8 lbComponent Weight
1 SideHardware Included

7.5-Degree Corner Overview

A Fixed 7.5-Degree Pitch Corner for Sloped Square Truss Roofs and Canopy Frames.

The EVT290X-7DA is a fixed 2-way, 7.5-degree corner for compatible 290 mm square aluminum truss systems. It is the specified component for shallow-pitch rooflines, canopy frames, and non-90-degree truss structures where a straight section or 90-degree corner does not meet the required angle.

Fixed 7.5-Degree Corner
Provides the defined 7.5-degree pitch angle required in a shallow-pitch truss roofline or canopy frame.
2-Way Truss Connection
Connects two compatible square-truss sections in a fixed-angle corner configuration.
50 mm Main Chords
Uses 50 mm OD aluminum main tubing with a listed 3 mm wall thickness.
Brushed Aluminum Finish
Provides a visible natural-metal surface for truss structures where brushed aluminum components are preferred.

What Does the 7.5-Degree Corner Do?

A Fixed 7.5-Degree Pitch Angle for F34 Square Truss Roof and Canopy Frames.

The EVT290X-7DA provides the fixed 7.5-degree corner used for shallow-pitch F34 and compatible 290 mm square-truss rooflines, canopy frames, and other non-90-degree truss structures. Use fixed-angle corners as required by the roof or canopy frame design to form the required pitch profile.

Shallow Pitch Profile
Establishes a fixed 7.5-degree pitch angle in a square-truss roofline or canopy frame.
Paired Pitch Corners
Use fixed-angle corners as required by the roof or canopy frame design to form a shallow-pitch truss profile.
Continuous Roofline
Supports a continuous sloped truss line where the roof or canopy structure requires a gradual pitch change.
Water Runoff
When used in a complete sloped roof or canopy assembly with the appropriate covering, secondary framing, and drainage plan, the 7.5-degree pitch can improve water runoff.

Where Is This 7.5-Degree Corner Used?

For Outdoor, Sloped, Pitched, and Custom Truss Systems.

The EVT290X-7DA provides a fixed 7.5-degree corner for F34 and compatible 290 mm square-truss systems used in outdoor roof and canopy structures, sloped truss systems, pitched truss systems, and other custom truss solutions. Its shallow pitch supports a continuous angled truss line and can improve water runoff when used as part of a complete roof or canopy structure.

01
Outdoor Truss Systems
Add a fixed 7.5-degree pitch to outdoor stage roofs, canopy frames, and other compatible truss structures. Complete wind, covering, drainage, support, anchorage, and engineering requirements remain project-specific.
02
Sloped Truss Systems
Build shallow sloped truss lines where compatible 290 mm square sections require a controlled, fixed 7.5-degree transition.
03
Pitched Truss Systems
Use in planned truss roof and canopy configurations requiring a fixed shallow-pitch transition between compatible square-truss sections.
04
Custom Truss Solutions
Use in project-specific stage, exhibit, display, AV, or overhead truss structures where straight sections or standard 90-degree corners do not achieve the required slope or alignment.

Why Choose Brushed Aluminum?

Choose a Natural-Metal Finish for a Coordinated Truss Appearance.

Choose the EVT290X-7DA when the fixed-angle corner must match brushed-aluminum truss components or when a natural-metal appearance is preferred in a stage, exhibit, AV, display, or production environment. Brushed aluminum is a finish choice; it does not alter the component’s connection requirements, inspection requirements, or project-specific engineering needs.

Match Brushed Aluminum Truss
Use with compatible natural-finish truss sections and components where a coordinated brushed aluminum appearance is required.
Visible Natural-Metal Surface
Select brushed aluminum where the truss is intended to retain a visible aluminum appearance within the stage, exhibit, or display environment.
Different From Matte Black
Matte black is selected for a darker visual treatment. Brushed aluminum is selected for a natural-metal appearance.
Finish Does Not Set Capacity
Finish selection does not change load capacity, connection requirements, inspection requirements, engineering review, or safety obligations.

Included Connection Hardware

Hardware for One Connecting Side Only.

Included connection hardware is supplied for one connecting side of the EVT290X-7DA. The 2-way configuration does not mean hardware is included for both available connection directions. Confirm the current product package, project drawing, and connection schedule for the exact supplied hardware and for any additional compatible hardware required.

4 Conical Couplers
The supplied hardware set includes four conical couplers for one connecting side.
8 Coupler-Pins and 8 R-Clips
The supplied hardware set includes eight coupler-pins and eight R-clips for one connecting side.
Additional Hardware
Additional compatible conical couplers, coupler-pins, and R-clips may be required for the other connection position.

Technical Reference

EVT290X-7DA Specifications.

These values identify the EVT290X-7DA product. Confirm current manufacturer drawings, instructions, connection hardware, component condition, and technical documentation before ordering or assembling a compatible system.

Identification

Product Details

Model / SKUEVT290X-7DA
Product TypeFixed 2-Way 7.5-Degree Corner
Fixed Angle7.5 Degrees

Overall Size

Dimensions

Overall Width309.4 mm
Overall Height238.88 mm
Overall Depth297.98 mm
Weight8 lb / 3.62 kg

Construction

Material and Finish

MaterialAluminum Alloy EN AW-6082 T6
Main Tubing50 mm OD / 3 mm Wall
Brace Tubing20 mm OD / 2 mm Wall
FinishBrushed Aluminum

Connections

System Interface

Corner Configuration2-Way Fixed Angle
Connection TypeConical Coupler System
Included Hardware ScopeOne Connecting Side Only
Included Hardware4 Couplers, 8 Pins, 8 R-Clips
CompatibilityFits F34, EVT290S, and all standard 290 mm Square Truss systems

System Compatibility

F34, EVT290S, and Compatible 290 mm Square Truss Systems.

The EVT290X-7DA has 290 mm square-truss geometry, 50 mm main chords, and conical connection receivers. It is intended for compatible F34, EVT290S, and standard 290 mm square-truss systems with matching receiver spacing and conical interface geometry. Confirm actual receiver geometry, full conical seating, pin engagement, component condition, and manufacturer or engineering data before combining separately sourced or mixed-brand components.

F34 System Context
Designed for use where the mating F34 connection geometry and receiver spacing match.
EVT290S Compatibility
Integrates with compatible EVT290S sections and related 290 mm square-truss components.
Matched Conical Interfaces
Connection suitability requires matching interfaces, full seating, coupler-pins, and R-clips.
50 mm Clamp Context
Use compatible 50 mm clamps only where placement and loading are approved for the complete structure.

How Is the 7.5-Degree Corner Connected?

Plan the Connection, Then Inspect Every Required Point.

Assembly should be completed by trained personnel using compatible components, the project drawing, the approved support or rigging plan, and sufficient hardware for every required connection. The supplied hardware covers one connecting side only.

01 — Inspect Components
Check chords, braces, welds, receivers, conical couplers, coupler-pins, and R-clips. Do not use damaged, worn, contaminated, or improperly fitting components.
02 — Confirm the Layout
Position the corner to match the required 7.5-degree angle in the truss structure before connection work begins.
03 — Plan Hardware
Use supplied hardware for its one included connecting side. Identify compatible hardware for every remaining required connection position.
04 — Align Mating Truss
Bring compatible truss faces together evenly. Connections should close without forcing, spreading, or pulling components into alignment.
05 — Secure the Connection
Fully install each required coupler-pin and secure every installed coupler-pin with its R-clip.
06 — Final Inspection
Verify retention, component condition, support planning, and the completed fixed-angle configuration before movement, lifting, rigging, or load application.
If a Connection Does Not Close
Stop assembly. Check receiver spacing, coupler fit, debris, hardware condition, damage, and alignment. Do not modify the component or drive a coupler-pin against resistance.

Safety and Engineering

A Fixed 7.5-Degree Corner Is Not a Standalone Load, Span, or Roof Rating.

The EVT290X-7DA does not independently establish a span, load, wind, drainage, weatherproofing, suspension, freestanding-structure, roof, or canopy rating. Determine suitability from the complete configuration, including connected components, spans, orientation, supports, connection hardware, bracing, rigging method, applied loads, lighting, AV equipment, displays, signage, base plates, ballast or anchorage, coverings, environmental conditions, venue requirements, and applicable approvals.

Do not use a straight-section load-span table to independently rate this fixed-angle corner or the completed truss system.
Do not treat an individual corner as evidence that a sloped roof, canopy, stage structure, AV framework, exhibit structure, suspended configuration, or public-facing structure has adequate capacity.
Confirm project-specific support, rigging, bracing, base-plate, ballast, anchorage, covering, and drainage plans before erection or loading.
Assess wind, weather, banners, screens, displays, suspended equipment, public access, and other operational or environmental forces as part of the complete project review.
Inspect every conical coupler, coupler-pin, R-clip, clamp, base connection, sling, shackle, safety cable, and attachment point before use.
Use trained personnel and obtain the project-specific engineering, facility, venue, and regulatory review required for the intended use.
Documentation and Project Review
Product specifications, included hardware, compatibility information, pricing, and availability are subject to change without notice. Verify current product drawings, manufacturer instructions, connection hardware, component condition, and applicable engineering information before ordering, assembling, or using this product. This page does not approve a particular entertainment-truss layout, span, loading condition, rigging plan, support arrangement, outdoor installation, suspended configuration, roof, canopy, drainage plan, or public-facing structure. For suspended, load-bearing, public-facing, outdoor, theatrical, concert, touring, or otherwise regulated entertainment-truss systems, obtain the project-specific review required by the applicable authority and a licensed structural engineer.

Product Questions

EVT290X-7DA Frequently Asked Questions.

What is the EVT290X-7DA?

The EVT290X-7DA is a fixed 7.5-degree 2-way aluminum corner with a brushed aluminum finish for compatible 290 mm square conical truss systems.

What hardware is included?

One hardware set is supplied for one connecting side: 4 conical couplers, 8 coupler-pins, and 8 R-clips. Confirm the current package and connection schedule for any additional compatible hardware required.

What truss systems are compatible?

It fits F34, EVT290S, and standard 290 mm square truss systems when receiver spacing, conical interface geometry, and all other relevant dimensions match. Mixed-brand fit should be verified before use.

Can the EVT290X-7DA improve water runoff in a roof or canopy frame?

When incorporated into a complete sloped truss roof or canopy frame, its fixed 7.5-degree pitch angle can help create a continuous sloped roofline that improves water runoff. Final drainage performance depends on the full assembly, including the covering, secondary framing, drainage path, support locations, deflection, wind exposure, and project-specific engineering.

Building a Shallow-Pitch F34 Truss Roof or Canopy Frame?

The EVT290X-7DA provides a fixed 7.5-degree corner for compatible 290 mm square-truss rooflines, canopy frames, outdoor truss systems, sloped truss systems, pitched truss systems, and custom truss solutions. The brushed aluminum finish suits structures where a natural-metal truss appearance is preferred.
