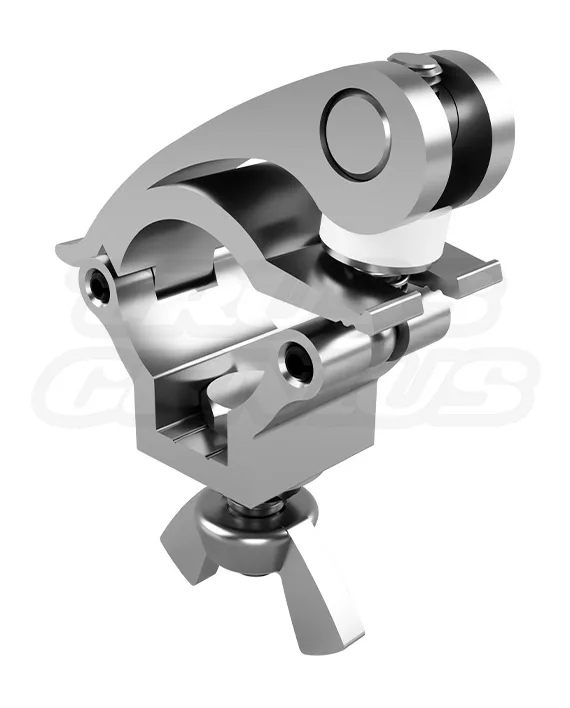

EVT35C-AJQ Light Duty Truss Clamp, secure and durable 35mm truss mounting solution
33 35 Tube Sizes
EVT35C-AJQ Light Duty Truss Clamp, secure and durable 35mm truss mounting solution
33 35 Tube Sizes

EVT35C-AJQ

Original price was: $25.00.Current price is: $16.00.

EVT35C-AJQ
Light Duty 1.37-Inch Clamp with Quick Release Fastening Handle
Great for small lighting fixtures or light-duty applications
Minimum Tube Size 33mm
Maximum Tube Size 35mm
Maximum Load 75 Kgs.
Profile Width 30mm
Weight - 0.36 Lbs.

In stock

SKU: EVT35C-AJQ Category:

EVT35C Clamp Knowledge Center

Fast Fixture Attachment.
Built for 33 to 35 mm Tubing.

The EVT35C-AJQ is a light-duty aluminum clamp with a quick-release fastening handle for attaching small lighting fixtures and accessories to compatible 33 to 35 mm tubing. Its compact profile, M10 attachment bolt, and tool-free collar adjustment make it well suited for portable lighting systems and smaller truss installations.

Product Facts

Model EVT35C-AJQ
Clamp Type Quick-Release Light-Duty Clamp
Tube Range 33 to 35 mm
Maximum Load 75 kg
Weight 0.36 lb
Material 6061-T6 Aluminum
33 to 35 mm Tube Compatibility
75 kg Maximum Load
30 kg Maximum Shear Load
M10 Attachment Bolt
0.36 lb Clamp Weight

Product Overview

A Compact Clamp for Fast Light-Duty Setup.

The EVT35C-AJQ combines a hinged aluminum collar with a quick-release fastening handle and M10 fixture attachment bolt.

Quick-Release Handle
Opens, closes, and tightens the clamp without requiring a separate tool for the collar.
33 to 35 mm Tube Range
Fits compatible tubing within the specified minimum and maximum diameters.
M10 Attachment Point
The 30 mm long M10 bolt provides a standard fixture mounting connection.
Lightweight Aluminum Body
6061-T6 aluminum construction keeps the clamp strong, compact, and easy to handle.

Common Applications

Designed for Small Fixtures and Accessories.

The EVT35C-AJQ is intended for light-duty mounting applications on compatible tubing.

01
LED Lighting Fixtures
Attach compact LED pars, wash lights, and similar lightweight fixtures.
02
Portable DJ Systems
Mount small fixtures to compatible 35 mm lighting stands and portable truss.
03
Trade Show Displays
Secure lightweight lighting and display accessories to compact truss structures.
04
Photo and Video Setups
Mount small lights and accessories to compatible support tubing.
05
Decorative Event Lighting
Support compact fixtures used for uplighting, accent lighting, and visual effects.

Who It’s For

Built for Teams Using Compact Lighting Equipment.

Best suited for professionals who need a lightweight, reusable clamp for smaller fixtures and 33 to 35 mm tubing.

Mobile DJs
For compact lighting bars, stands, and portable event setups.
Event Decorators
For lightweight accent lighting and decorative display accessories.
Trade Show Exhibitors
For small fixtures mounted to compatible booth truss and tubing.
Photo and Video Crews
For portable lighting and accessory mounting on set.
Small Venue Technicians
For compact lighting systems and light-duty production applications.
Rental Companies
For reusable 35 mm clamp inventory and small fixture packages.

Included Components

Supplied as a Complete Clamp Assembly.

The clamp is supplied with the hardware required for its built-in fastening and fixture attachment functions.

Aluminum Clamp Body
Hinged collar sized for compatible 33 to 35 mm tubing.
Quick-Release Handle
Used to open, close, and tighten the collar around the tube.
M10 Attachment Bolt
30 mm long bolt for securing a compatible fixture or accessory.
Spring Lock Washer
Helps maintain tension at the fixture attachment point.

Technical Reference

Complete Clamp Specifications

Tube range, load values, profile, attachment hardware, material, weight, and certification.

Identification

Product Details

ModelEVT35C-AJQ
SKUEVT35C-AJQ
BrandEvolve Truss
Clamp TypeLight-Duty Quick-Release Clamp

Tube Fit & Size

Dimensions

Minimum Tube Size33 mm / 1.29 in
Maximum Tube Size35 mm / 1.37 in
Profile Width30 mm / 1.18 in
Clamp Weight0.36 lb / 0.16 kg

Load Data

Rated Values

Maximum Load75 kg / 165 lb
Maximum Shear Load30 kg / 66 lb
Tensile Strength11.64 kN
Application ClassLight-Duty Fixture Mounting

Construction & Hardware

System Details

Material6061-T6 Aluminum
Attachment BoltM10 x 30 mm
Included WasherSpring Lock Washer
CertificationTUV Nord Certified

Clamp Compatibility

Fits Compatible 33 to 35 mm Tubing.

Tube diameter, fixture weight, attachment hardware, and the rating of the complete support system must all be verified before use.

EVT220S Main Chords
Compatible with EVT220S truss using 35 mm main chord tubing.
35 mm Lighting Stands
Fits compatible round stand tubing within the specified diameter range.
33 to 35 mm Pipe and Tube
May be used on structurally suitable round tubing within the stated range.
M10 Fixture Hardware
Designed for fixtures or accessories that accept the supplied M10 mounting bolt.

Installation Overview

Position the Clamp. Then Tighten the Handle.

Fully inspect the clamp, tube, fixture, and all attachment hardware before installation.

01 — Open the Collar
Turn the quick-release handle counterclockwise until the collar can open.
02 — Position the Clamp
Place the clamp around compatible 33 to 35 mm tubing and close the collar.
03 — Reset the Handle
Return the quick-release handle and washer to the fastening position above the collar.
04 — Confirm Placement
Verify the clamp and fixture are correctly oriented before tightening.
05 — Tighten Securely
Turn the handle clockwise until the clamp is secure without damaging the tube.
06 — Install a Safety Cable
Attach an independently rated secondary safety to the fixture where required.

Safety & Load Planning

The Clamp Rating Does Not Replace System-Level Engineering.

The safe working condition depends on the clamp, fixture, attachment bolt, supporting tube, truss system, orientation, load direction, and complete installation.

Do not exceed the clamp load rating or the lower rating of the supporting truss, stand, tube, fixture, or attachment hardware.
Observe the separate 30 kg maximum shear-load value when the installation places a shear load on the clamp.
Inspect the clamp body, hinge, handle, threads, bolt, washer, and tube-contact surfaces before every use.
Do not use the clamp if it is cracked, bent, worn, stripped, loose, corroded, or otherwise damaged.
Use an independently rated safety cable for overhead fixtures and accessories.
Confirm the clamp is fully closed, correctly positioned, and securely tightened before applying load.
A licensed professional engineer must review structures, lighting plots, and clamp uses when required.

Product Questions

Frequently Asked Questions

What tube sizes fit the EVT35C-AJQ?

The specified tube range is 33 mm minimum to 35 mm maximum.

What is the maximum load?

The listed maximum load is 75 kg. The product also has a separate maximum shear-load value of 30 kg, so load direction and the complete installation must be considered.

What attachment bolt is included?

An M10 attachment bolt measuring 30 mm long with a spring lock washer is included.

Does it fit EVT220S truss?

Yes. EVT220S uses 35 mm main chords, which fall within the clamp’s specified range.

Is a safety cable still required?

A separately rated safety cable is recommended for overhead fixtures and may be required by the venue or applicable rules.

Need clamps for a 35 mm truss or lighting system?

Contact us for clamp selection, fixture compatibility, safety cables, EVT220S components, and quantity pricing.
