Name: EVT50A‑S082 — 82 mm (3.2 in) Female Truss Spacer for 50 mm Tubing, Compatible with F34 and 290 mm Conical Systems
Brand: Evolve Truss
SKU: EVT50A-S082
Price: 18.00 USD
Availability: InStock

EVT290S Conical Truss System Knowledge Center

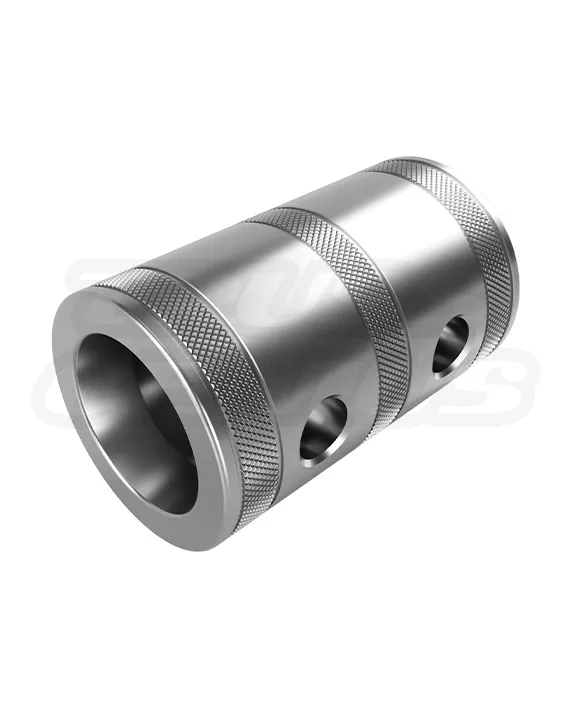

EVT50A-S082 82 mm / 3.2 in Female Truss Spacer.
A Female-to-Female Spacer for 50 mm Tubing and Modular 290 mm Conical Truss Builds.

The EVT50A-S082 is an 82 mm / 3.2 in female-to-female aluminum truss spacer for compatible 50 mm / 2 in tubing and 290 mm conical truss systems. Its receiver holes on both ends create a fixed spacing bridge between adjoining compatible female truss ends. The spacer changes connection geometry at one joint; it is not a truss section, independent support point, or direct load-attachment location. Connecting hardware is not included; see the Technical Reference for required connection hardware. Verify fit, full coupler seating, pin engagement, retention, and the complete engineered structure before lifting or applying load.

Product Facts

Model / SKUEVT50A-S082

Product ClassFemale Truss Spacer

Fixed Spacing82 mm / 3.2 in

Connection FormFemale-to-Female Conical Receivers

Tube Interface50 mm / 2 in Tubing

FinishBrushed Aluminum

82 mmFixed Spacing

3.2 inFixed Spacing

Female-to-FemaleConical Receiver Form

50 mmTube Interface

Brushed AluminumFinish

Product Overview

An 82 mm Female Spacer for One Compatible 50 mm Tube and 290 mm Conical Truss Connection.

The EVT50A-S082 is a female-to-female spacer with receiver holes at both ends. It creates a fixed 82 mm / 3.2 in spacing bridge in a compatible 50 mm tubing and 290 mm conical truss assembly. The female receiver configuration interfaces with compatible conical connection hardware; consult the Technical Reference for the required hardware for one connection.

Fixed 82 mm Spacing

Adds a fixed 82 mm / 3.2 in bridge at one selected connection. It does not provide adjustable travel or telescoping length.

Female-to-Female Receivers

Receiver holes on both ends interface with compatible conical connection hardware and adjoining female truss receivers.

Brushed Aluminum Finish

A brushed aluminum finish designed to visually integrate with standard aluminum truss components.

Connection-Level Component

The spacer changes one joint. It is not a truss section, separate support point, or direct load-attachment location.

What It Changes

It Adds 82 mm at One Joint. It Does Not Establish a New Structural Rating.

When installed in a compatible conical connection, the spacer creates a fixed 82 mm / 3.2 in bridge between adjoining truss ends. It does not independently establish allowable span, load capacity, pick-point location, support arrangement, or approval for the modified structure. Evaluate the complete system after the connection geometry has changed.

Changes

Adds a fixed 82 mm / 3.2 in bridge between adjoining compatible female truss ends.

Does Not Change

Does not independently establish a load rating, allowable span, pick-point location, or support plan.

Connection Hardware

Connecting hardware is not included. Refer to Technical Reference for the required hardware for one completed connection.

Does Not Permit

Does not permit direct attachment or support of loads from the spacer connection point.

Selection Guidance

Select the S082 When The Layout Requires an 82 mm Female-to-Female Bridge.

Use the EVT50A-S082 when the documented layout requires a fixed 82 mm / 3.2 in spacing bridge between compatible female truss ends and calls for a female-to-female receiver configuration. Do not use it as an adjustable fitting, a generic extension, a repair for damaged truss, or a substitute for a different measured correction.

Measured 82 mm Difference

Use when the approved layout identifies a fixed 82 mm correction at one specific compatible connection.

Female Receiver Requirement

Use where the system requires a receiver-to-receiver spacer configuration within a compatible conical truss connection.

Custom Layout Alignment

Use in a reviewed scenic, exhibit, architectural, lighting, or technical layout where 82 mm is the required correction.

Not an Adjustable Coupler

Do not use to force alignment, create an unmeasured correction, or replace a required engineered connection solution.

Technical Reference

EVT50A-S082 Product Specifications.

Identification

Product Details

Model / SKUEVT50A-S082

BrandEvolve Truss

Product TypeFemale Truss Spacer

Connection FormFemale-to-Female Conical Receivers

Verified Dimensions

Spacing Reference

Fixed Spacing82 mm / 3.2 in

Tube Interface50 mm / 2 in Tubing

Overall DimensionsNot Listed in Supplied Product Data

Product WeightNot Listed in Supplied Product Data

Construction

Material and Finish

MaterialEN AW-6061 T6 Aluminum Alloy

FinishBrushed Aluminum

Functional Output82 mm Female-to-Female Spacing Bridge

Connection Hardware

Required per Connection

Included HardwareNone

Conical Coupler1 Compatible Coupler Required

Coupler Pins2 Required

R-Clips2 Required

System Compatibility

F34, EVT290S, and Compatible 290 mm Conical Truss Systems.

The EVT50A-S082 is designed for compatible 50 mm / 2 in tubing and 290 mm conical-connector truss systems, including F34 and EVT290S. Before mixing brands or separately sourced components, verify actual receiver spacing, conical-coupler dimensions, chord geometry, pin alignment, full seating, and the complete structural plan.

EVT290S Compatibility

Designed to integrate with compatible EVT290S components when the complete connection is properly selected, fitted, and installed.

F34 Compatibility

Compatible with F34 290 mm square geometry and matching conical connection hardware when the actual interface fits correctly.

Connection Fit Check

Verify the selected connection hardware fully fits and seats in the female spacer receiver and adjoining truss receiver.

Mixed-System Verification

Test-fit mixed-brand or separately sourced components on the ground before lifting and verify the completed connection and structure.

Installation Checks

Confirm the 82 mm Requirement. Then Verify the Complete Connection.

The female spacer creates a bridge within a conical truss connection. Install it only after confirming the required 82 mm correction, inspecting the components, test-fitting the connection, and verifying full seating, pins, retention hardware, and the complete structural plan.

01 — Confirm the Correction

Confirm that the approved layout requires a fixed 82 mm / 3.2 in bridge at the selected connection.

02 — Inspect Both Receivers

Inspect the spacer receiver holes and adjoining truss receiver for damage, deformation, wear, or elongation before use.

03 — Confirm Hardware

Review the Technical Reference and select the connection hardware required for the compatible system and completed connection.

04 — Test-Fit Before Lifting

Confirm the compatible conical connection seats fully in the female spacer receiver and associated truss receiver without forcing the connection.

05 — Install Retaining Hardware

Install the pins and retaining hardware required by the completed connection configuration.

06 — Inspect the Complete Structure

Verify the completed connection and surrounding structure against the approved plan before any load is applied or the structure is lifted.

Safety and Engineering

The Spacer Changes Connection Geometry. It Does Not Override System Limits.

The EVT50A-S082 is a structural connection component. It does not independently establish a load rating for the modified structure. Do not exceed the capacity of the spacer or the truss system it modifies. Do not support loads directly from the spacer connection point. Review the complete structure—including the modified connection—for the actual installation.

Do not exceed the capacity of the spacer or the truss system it modifies.

Do not attach or support loads directly from the female spacer connection point.

Do not use the spacer to force a misaligned connection or compensate for damaged truss components.

Verify the selected conical connection fully seats in both the female spacer receiver and adjoining truss receiver.

Install the pins and retention hardware required by the completed connection before lifting or applying load.

Do not use fewer connectors, pins, or retainers than the approved connection configuration requires.

Test-fit mixed-brand connections on the ground before lifting.

Have the complete structure reviewed by a qualified authority or licensed professional engineer where required.

Product Questions

Frequently Asked Questions.

What does the EVT50A-S082 do?

It creates a fixed 82 mm / 3.2 in female-to-female spacing bridge between compatible truss ends within a compatible conical truss connection.

Is connecting hardware included?

No. The spacer is supplied without connecting hardware. See Technical Reference for the required hardware per connection.

What tubing and truss systems does it fit?

It is designed for compatible 50 mm / 2 in tubing and 290 mm conical truss systems, including F34 and EVT290S. Verify physical fit and the complete connection before use.

Can it be used as a load point?

No. Do not attach or support loads directly from the spacer connection point. The complete structure must be evaluated for the actual installation.

Can I combine this spacer with other spacers?

Do not stack or combine spacers unless the exact configuration has been approved for the complete structure. A combined arrangement changes connection geometry and requires review.

Are its overall dimensions and weight listed?

The supplied product data confirms the 82 mm / 3.2 in fixed spacing and 50 mm / 2 in tube interface but does not list overall dimensions or product weight. Confirm the current technical drawing or manufacturer documentation if those values are required.

Need to create an 82 mm bridge in a 50 mm tube or 290 mm conical truss layout?

Contact us for product identification, connection-hardware planning, layout review, spacer quantities, technical drawings, and engineering coordination.
