EVT50C-AEC 2-Inch Medium Duty Clamp with Welded Lifting Eye Nut, reliable and versatile truss clamp

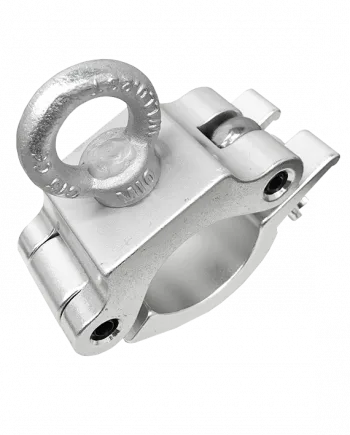

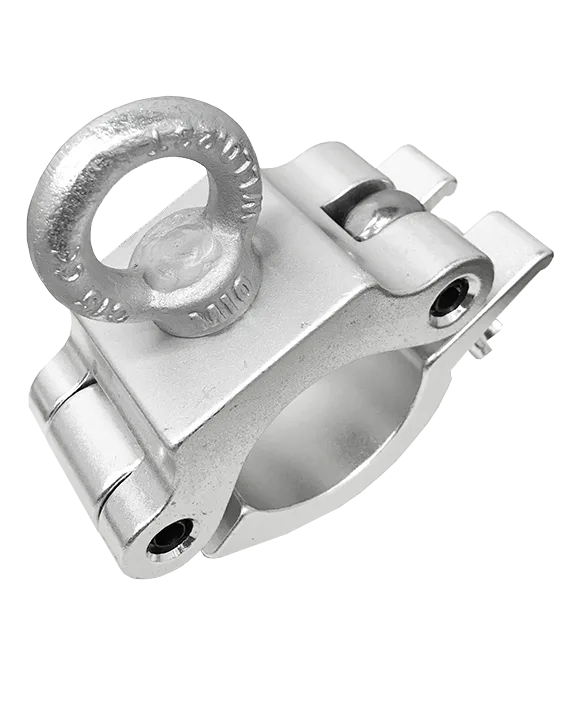

Eye Clamp with Welded Eyenut
EVT50C-AEC 2-Inch Medium Duty Clamp with Welded Lifting Eye Nut, reliable and versatile truss clamp
Eye Clamp with Welded Eyenut

EVT50C-AEC

$27.00

Aluminum-Finished Medium-Duty Stage Lighting Clamp with Eye Nut
Enhance your stage and lighting setups with the EVT50C-BEC’s striking aluminum finish. Tailored for professionals, this clamp strikes a balance between functionality and visual appeal.

  • Key Features: This sleek aluminum-finished clamp is equipped with a lifting eye nut, making it the optimal choice for suspending non-moving and non-swinging objects.
  • Application: Ideal for wire ropes, rigging chains, and spansets in upscale events, theaters, and concert venues.
  • Eye Diameter: Precision-engineered at 25.5mm to accommodate a broad range of rigging configurations.
  • Tube Size Range: Adaptable by design, it fits tubes ranging from 48mm to 51mm in diameter.
  • Safety & Durability: With a robust maximum load capacity of 200 Kgs, it assures safety without compromising on aesthetics.
  • Profile Specifications: Boasts a 50mm profile width and has a lightweight build at just 1.30 Lbs.

In search of a blend of resilience and sophistication in stage lighting accessories? The aluminum-finished EVT50C-BEC clamp stands out as a prime choice.

DOWNLOAD 3D FILE

In stock

SKU: EVT50C-AEC Category:

Product Description

EVT50C-AEC
Aluminum Medium Duty Clamp with Welded Lifting Eye Nut for Stage and Lighting Truss
2-Inch Pro Clamp with Welded Lifting Eye Nut can be used to mount (non-moving and non-swinging) objects like Shackles, Gac Flex Round Slings, and other Rigging Lifting Equipment.

How to attach EVT50C-AEC to Trussing, Tube, or Pipe
1. Release the wing nut by turning it counterclockwise to release the bolt and open the collar.
2. Place the EVT50C-AEC on the Truss, Tube, or Pipe and close the collar.
3. Put the bolt back in place with the washer and wing nut above the collar.
4. Make sure the EVT50C-AEC is set in its proper place on the Truss, Tube, or Pipe before tightening the wing nut.
5. Turn the wing nut clockwise to tighten and secure the EVT50C-AEC into place.

Do not exceed the load capacity of the EVT50C-AEC or Truss System. The EVT50C-AEC should be fully inspected before use. In the occurrence of any damage or defect, the EVT50C-AEC should not be used. The use of safety cables is recommended for maximum security. The purchase of this product in no way shall be conceived as authorizing or approving a specific installation or usage of the clamp. A licensed professional engineer shall review all structures, lighting plots, or other clamp uses.

EVT50C-AEC Specifications:
M10 Round Eye Hook Attachment
Tensile Strength 9.81 kN.
Made of the Highest Quality 6061-T6 Alloy Aluminum.
TUV Nord Certified
