Do I need tools to install this clamp?

No tools are required for the clamp mechanism itself. It features a quick-release lever handle that snaps securely into place. You will only need a wrench to attach your light fixture to the M10 bolt.

What tube sizes does the EVT50C-AQR actually fit, and can it be used on smaller decorative truss?

The clamp fits tubes with an outer diameter between 48 mm and 51 mm (approximately 1.89 in to 2.0 in), which covers standard 50 mm truss main chords and 2-inch scaffold pipe. It will not fit smaller decorative truss tubes such as 35 mm (1.37 in) bracing found on mini truss systems like the EVT220 series. Always verify the outer diameter of your tubing before purchasing.

Is this clamp safe for overhead lifting?

Yes, provided it is used within its Working Load Limit (WLL). Always perform a visual inspection before use to ensure the lever mechanism is fully engaged and the bolt is secure. Secondary safety cables should always be used for overhead fixtures.

Is this product load-rated and certified?

Yes. The EVT50C-AQR is TUV Nord certified and rated at 220 lb (100 kg). Always follow local codes, use secondary safety cables for overhead applications, and inspect the clamp mechanism before every use.

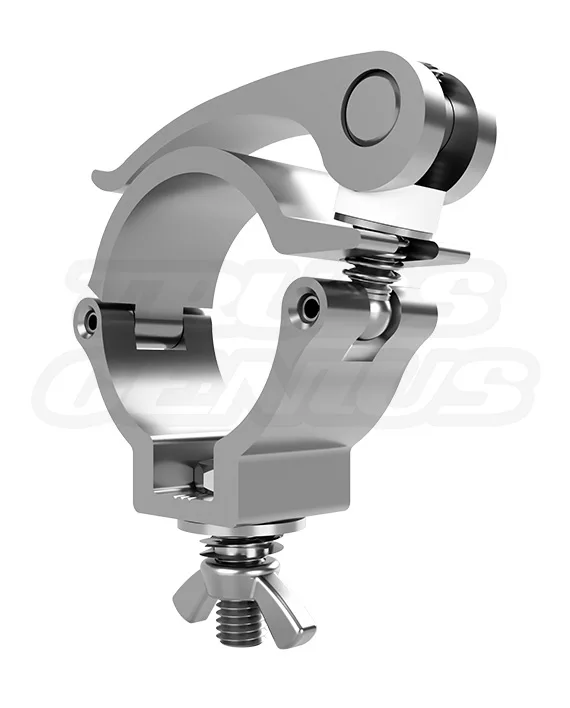

Quick Release Pipe and Tube Clamp - 50mm (2 inch) OD Coupler (EVT50C-AQR)

EVT50C Product Knowledge Center

Mount Faster.
Work Tool-Free.

The EVT50C-AQR is a professional quick-release clamp for 48–51 mm round tubing and 50 mm truss chords. Its lever-action collar allows technicians to mount, reposition, and remove compatible fixtures without using a wrench on the clamp mechanism.

Product Facts

Model EVT50C-AQR

Product Type Quick-Release Clamp

Tube Range 48–51 mm OD

Rated Capacity 220 lb / 100 kg

Material 6061-T6 Aluminum

Certification TÜV Nord

48–51 mm Tube Diameter

220 lb Rated Capacity

0.35 lb Product Weight

M10 × 30 mm Fixture Bolt

TÜV Nord Certified

Product Overview

One-Handed Positioning. Fast, Repeatable Mounting.

The EVT50C-AQR combines a wrap-around aluminum collar with a quick-release lever and an integrated M10 fixture attachment point.

Tool-Free Clamp Operation

Open, position, tighten, and release the clamp without using a wrench on the collar mechanism.

One-Handed Positioning

Hold the fixture or accessory in position while operating the clamp handle with the other hand.

Lightweight Construction

The 6061-T6 aluminum body weighs approximately 0.35 lb, helping limit unnecessary added rig weight.

Ready for Fixture Attachment

Includes an M10 × 30 mm bolt, wing nut, and spring lock washer for compatible yokes and accessory brackets.

Key Features

Designed to Reduce Mounting Time.

Core features for temporary production, permanent installation, and frequently reconfigured mounting applications.

Quick-Release Lever

Opens and secures the collar without hex keys, ratchets, or a separate clamp wrench.

48–51 mm Tube Range

Fits standard 50 mm truss chords and round tubing within the specified outside-diameter range.

Included M10 Hardware

Supplied with an M10 × 30 mm bolt, wing nut, and spring lock washer.

6061-T6 Aluminum Body

Provides a lightweight clamp body for professional fixture and accessory mounting.

Certified Capacity

TÜV Nord certified with a rated capacity of 220 lb / 100 kg when properly installed and used within applicable requirements.

Who It’s For

Built for Crews That Need Fast Fixture Changes.

Best suited for professionals who repeatedly mount, reposition, transport, or service equipment on 48–51 mm round tubing.

Event Lighting Technicians

For LED pars, small wash lights, and effect fixtures during fast load-ins, focusing sessions, and strikes.

Audio & AV Installers

For antenna brackets, small speakers, cable-management accessories, and signal-distribution hardware.

Trade Show & Exhibit Crews

For signage brackets, tablet mounts, display arms, and small monitors on modular booth structures.

Facility & Warehouse Teams

For utility lighting, sensor mounts, and compatible accessories installed on qualifying round pipe.

Mobile DJs & Solo Operators

For portable lighting rigs where quick setup, teardown, and reduced loose hardware improve efficiency.

Technical Reference

Complete Product Specifications

Product dimensions, construction details, fit range, included hardware, and rated capacity.

Product Details

Identification

Model / SKU EVT50C-AQR

Brand Evolve Truss

Product Type Quick-Release Clamp

Connection Style Wrap-Around Lever Lock

Size & Weight

Dimensions

Overall Width 3.43 in / 87 mm

Overall Height 4.13 in / 105 mm

Overall Depth 1.18 in / 30 mm

Product Weight 0.35 lb / 0.16 kg

Fit & Capacity

Operating Range

Minimum Tube OD 1.89 in / 48 mm

Maximum Tube OD 2.00 in / 51 mm

Rated Capacity 220 lb / 100 kg

Certification TÜV Nord

Construction

Materials & Hardware

Body Material 6061-T6 Aluminum

Fixture Bolt M10 × 30 mm

Included Hardware Wing Nut & Lock Washer

Compatibility F34, EVT290S, EVT290I & Standard 50 mm Chords

System Compatibility

Fits Standard 48–51 mm Round Tubing.

Compatible with qualifying F34-style truss, EVT290S, EVT290I, and standard round pipe within the specified outside-diameter range.

Truss Compatibility

Fits standard 50 mm main chords used on compatible F34-style, EVT290S, and EVT290I truss systems.

Pipe Compatibility

Fits round pipe and tubing with an actual outside diameter between 48 mm and 51 mm.

Not for 35 mm Tubes

Do not use on smaller 35 mm decorative truss tubes or EVT220-series main chords.

Verify Before Installation

Confirm the actual tube diameter, fixture slot size, handle clearance, and application requirements before use.

Installation Overview

Basic Mounting Procedure

Follow the fixture manufacturer’s instructions, applicable safety requirements, and project-specific rigging procedures.

01 — Inspect

Inspect the clamp body, lever, pivot, bolt, nut, washer, and contact surfaces.

02 — Open

Release and rotate the handle to open the clamp collar.

03 — Position

Seat the clamp fully around a verified 48–51 mm round tube.

04 — Tighten

Rotate and secure the quick-release handle until the clamp is firmly locked.

05 — Attach Fixture

Secure the compatible fixture yoke or bracket to the M10 bolt using the supplied hardware.

06 — Add Secondary Safety

Install an independently rated safety cable for every overhead fixture.

View compatible safety cables for overhead fixture applications

Safety & Rigging

Inspect Every Clamp. Secure Every Fixture.

The rated capacity does not eliminate the need for proper installation, inspection, secondary attachment, load evaluation, and compliance with applicable codes and manufacturer instructions.

Do not exceed the rated capacity of 220 lb / 100 kg.

Use only on round tubing with an actual outside diameter between 48 mm and 51 mm.

Inspect the lever, collar, pivot, bolt, nut, washer, and contact surfaces before every use.

Remove the clamp from service if it is bent, cracked, worn, loose, or unable to lock fully.

Maintain sufficient clearance for the quick-release handle to rotate and lock completely.

Use an independently rated safety cable for every overhead fixture or accessory.

Installation must be performed by trained personnel in accordance with applicable requirements.

Product Questions

Frequently Asked Questions

Do I need tools to operate the clamp?

No tool is required to open or secure the quick-release collar. A suitable tool may still be required when attaching or tightening the fixture hardware.

What tube sizes does it fit?

It is designed for round tubing with an outside diameter between 48 mm and 51 mm, including compatible standard 50 mm truss chords.

Can it be used on EVT220 truss?

No. EVT220-series tubing is smaller than the specified 48–51 mm clamp range.

What hardware is included?

Each clamp includes an M10 × 30 mm attachment bolt, wing nut, and spring lock washer.

Is a safety cable still required?

Yes. Every overhead fixture must use an independently rated secondary safety attachment installed according to applicable requirements.
