EVT50C-ATC
$26.00
EVT50C-ATC

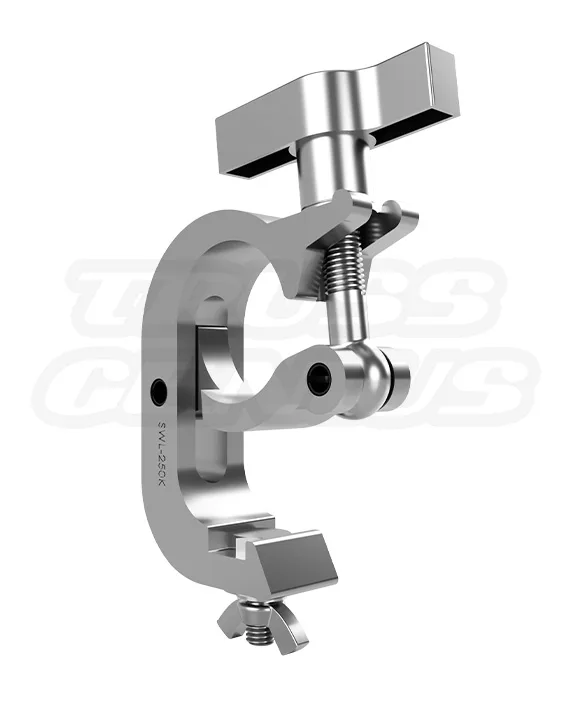

Hook style fastening clamp with large T-Handle allowing a single person to mount light fixtures to truss very easily.
Just remove and then tighten wing nut to mount lighting fixtures or other equipment to clamp.
Minimum Tube Size 48mm
Maximum Tube Size 51mm
Maximum Load 250 Kgs.
Profile Width 30mm
Weight – 1.02 Lbs.
In stock
Product Description
EVT50C-ATC
Heavy-Duty 2-Inch Hook Style Fastening Clamp
How to attach EVT50C-ATC to Trussing, Tube, or Pipe
1. Release the Large T-Handle by turning it counterclockwise to release the bolt and open the collar.
2. Place the EVT50C-ATC on the Truss, Tube, or Pipe and close the collar.
3. Place the large t-handle back into place with the washer and large t-handle above the collar.
4. Make sure the EVT50C-ATC is set in its proper place on the Truss, Tube, or Pipe before tightening the large t-handle.
5. Turn the large t-handle clockwise to tighten and secure the EVT50C-ATC into place.
Do not exceed the load capacity of the EVT50C-ATC or Truss System. The EVT50C-ATC should be fully inspected before use. In the occurrence of any damage or defect, the EVT50C-ATC should not be used. The use of safety cables is recommended for maximum security.
EVT50C-ATC Specifications:
M10 (30mm Long) Attachment Bolt with Spring Lock Washer
Max Shear Load 50 Kgs.
Tensile Strength 11.27 kN.
Made of the Highest Quality 6061-T6 Alloy Aluminum.
TUV Nord Certified
