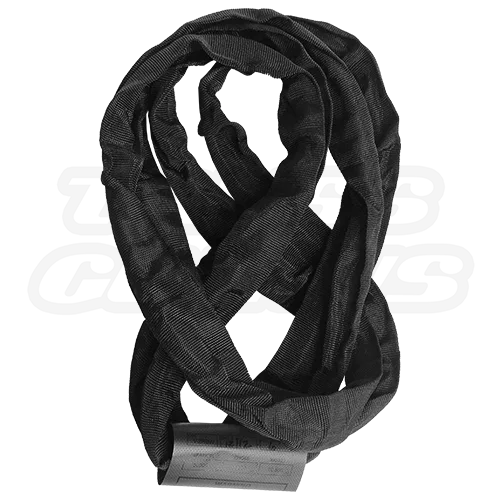

6 ft GAC Flex steel‑core roundsling with black protective jacket for overhead rigging and truss suspension

GAC Flex Roundsling | 6 ft (1.82 m)

Original price was: $121.00.Current price is: $80.00.

6ft Black Steel Core Round Sling (GAC Flex) — Heat-Resistant Stage Rigging Sling

Dimensions & Specs
Length: 6 ft (1.82 m)
Core Material: Galvanized Aircraft Cable (GAC)
Jacket Material: Black Polyester (Stage-Ready)
Temp Rating: Up to 400°F (204°C) – Ideal for Lighting Fixtures

Load Capacities (WLL)
Vertical WLL: 5,300 lb (2,404 kg)
Choke WLL: 4,250 lb (1,927 kg)
Basket WLL: 10,600 lb (4,808 kg)
Compliance: Meets all current rigging codes

Finish & Features
Finish: Discrete Matte Black for Theatrical Use
Features: Highly flexible wire rope core, Heat resistant
Origin: Made in the USA
Weight: 3 lb (1.36 kg)

In stock

SKU: GACFLEX-RS6 Category:

GAC Flex Rigging Knowledge Center

Steel-Core Strength.
Soft-Sling Truss Protection.

The GACFLEX-RS6 is a 6 ft steel-core wire rope roundsling designed for professional overhead truss suspension. A continuous galvanized aircraft cable core provides zero-stretch performance and heat resistance, while the double-wall black polyester jacket helps protect aluminum truss chords from direct steel contact.

Product Facts

Model GAC Flex RS6
SKU GACFLEX-RS6
Product Type Wire Rope Roundsling
Length 6 ft / 1.82 m
Core Material Galvanized Aircraft Cable
Jacket Double-Wall Black Polyester
6 ft Sling Length
5,300 lb Vertical WLL
4,250 lb Choker WLL
10,600 lb Basket WLL
3 lb Product Weight

Product Overview

Wire Rope Performance Inside a Protective Fabric Jacket.

The GAC Flex roundsling combines the strength and low-stretch behavior of galvanized aircraft cable with the soft handling characteristics of a traditional spanset.

Galvanized Steel Core
A continuous aircraft cable core provides strength, heat resistance, and stable load behavior.
Soft Truss Contact
The polyester jacket helps prevent the steel core from scratching or denting aluminum truss chords.
Zero-Stretch Performance
The steel core minimizes the bounce and elongation associated with standard synthetic slings.
Built-In Inspection Window
A hook-and-loop access flap allows visual inspection of the internal cable core.

Common Applications

Designed for Professional Overhead Rigging.

Intended for qualified riggers working with theatrical, event, industrial, broadcast, and suspended truss systems.

01
Suspended Aluminum Truss
Wrap and support truss chords while protecting the aluminum surface.
02
Concert and Touring Systems
Use in repeatable stage-rigging layouts where stable load behavior is important.
03
Theatrical Lighting Grids
Suitable for environments where nearby fixtures can generate significant heat.
04
Broadcast and Film Stages
Support overhead truss, lighting, and production equipment in dark studio environments.
05
Industrial Rigging
Use for qualified lifting applications within the tagged working load limits.

Who It’s For

Built for Qualified Rigging Professionals.

This is professional overhead rigging equipment and should be selected, inspected, and installed by personnel trained in sling use and load control.

Event Production Companies
For concert, corporate, theatrical, and temporary event rigging.
Rigging Companies
For overhead suspension systems requiring steel-core roundsling performance.
Rental Companies
For professional rigging inventory serving multiple venues and productions.
Broadcast and Film Crews
For overhead grids, lighting truss, and dark studio installations.
Industrial Riggers
For controlled lifting and suspension applications within rated limits.
Safety Managers
For inspection programs requiring visible access to the internal wire rope core.

Product Features

Engineered for Strength, Visibility, and Inspection.

Double-Wall Jacket
Black polyester construction protects the core and blends into theatrical environments.
Inspection Access
Hook-and-loop closure provides access for checking the cable for broken wires or corrosion.
Heat-Resistant Core
The steel core is better suited than standard synthetic slings for heat-intensive lighting environments.
Project-Specific Secondary Safety
Whether an independent backup or secondary safety is required must be determined from the engineered rigging plan, the truss or supported system data, venue rules, and applicable regulations.

Technical Reference

Complete Product Specifications

Length, working load limits, materials, jacket construction, weight, and inspection features.

Identification

Product Details

ModelGAC Flex RS6
SKUGACFLEX-RS6
BrandEvolve Truss
Product TypeWire Rope Roundsling

Size and Weight

Dimensions

Length6 ft / 72 in / 1.82 m
Product Weight3 lb / 1.36 kg
ColorBlack
Stretch CharacteristicZero-Stretch Steel Core

Working Load Limits

Hitch Ratings

Vertical WLL5,300 lb / 2,404 kg
Choker WLL4,250 lb / 1,927 kg
Basket WLL10,600 lb / 4,808 kg
Rating ControlFollow Sling Tag and Hitch Configuration

Construction and Compliance

Materials

Core MaterialGalvanized Aircraft Cable
Jacket MaterialDouble-Wall Black Polyester
Inspection WindowHook-and-Loop Closure
ComplianceMeets Current Theatrical Rigging Codes
Secondary SafetyRefer to the Engineered Rigging Plan and Supported System Requirements

Inspection Procedure

Inspect the Jacket. Then Check the Steel Core.

Inspection is required before every use. The built-in access window allows the internal cable to be checked without removing the sling from the truss.

01 — Read the Tag
Confirm the sling identity, length, hitch ratings, and inspection status are legible.
02 — Inspect the Jacket
Check for cuts, tears, heat damage, abrasion, chemical damage, or exposed core.
03 — Open the Inspection Window
Use the hook-and-loop flap to expose the galvanized aircraft cable core.
04 — Check the Cable
Look for broken wires, corrosion, kinking, crushing, distortion, or other damage.
05 — Check the Full Circumference
Rotate and inspect the sling so hidden damage is not missed.
06 — Remove Damaged Slings
Immediately remove the sling from service if any reject condition is found.

Hitch Selection

Match the Sling Rating to the Actual Hitch.

Working load limits change with the hitch configuration. Use the rating printed on the sling tag and account for sling angle, load shape, and edge conditions.

Vertical Hitch
Listed WLL: 5,300 lb. Keep the load centered and prevent side loading.
Choker Hitch
Listed WLL: 4,250 lb. Ensure the choke seats correctly and does not bear on hardware.
Basket Hitch
Listed WLL: 10,600 lb under the specified basket configuration and loading conditions.
Protect Against Sharp Edges
Use suitable edge protection whenever the sling contacts corners or abrasive surfaces.

Safety and Rigging

Never Exceed the Tagged Working Load Limit.

Safe use depends on hitch type, sling angle, load geometry, edge conditions, temperature, support structure, attachment hardware, and the complete rigging plan.

Do not exceed the working load limit printed on the sling tag for the selected hitch.
Inspect the polyester jacket and galvanized cable core before every use.
Remove the sling from service if broken wires, corrosion, jacket tears, heat damage, or distortion are found.
Do not expose the sling to direct flame or temperatures above the manufacturer’s stated limit.
Protect the sling from sharp edges, pinch points, abrasion, and contact with incompatible chemicals.
Do not knot, twist, shorten, or modify the sling.
Rigging must be performed by qualified personnel using an approved load plan.
Consult the project engineer and the engineering data for the truss, structure, or equipment being suspended to determine whether secondary or backup rigging is required.

Product Questions

Frequently Asked Questions

What is inside the GAC Flex roundsling?

The load-bearing core is continuous galvanized aircraft cable enclosed inside a double-wall black polyester jacket.

How do I inspect the internal cable?

Open the hook-and-loop inspection window and visually check the cable for broken wires, corrosion, kinks, crushing, or distortion.

What are the working load limits?

The listed ratings are 5,300 lb vertical, 4,250 lb choker, and 10,600 lb basket. Always follow the sling tag and actual hitch conditions.

Why use a steel-core roundsling around aluminum truss?

The steel core provides heat resistance and low stretch, while the polyester jacket helps protect the aluminum chord surface.

Can the sling be used near lighting fixtures?

It is designed for heat-intensive lighting environments, but it must never be exposed to direct flame or temperatures above the manufacturer’s rating.

Need steel-core roundslings for a truss system?

Contact us for sling selection, hitch planning, truss compatibility, inspection guidance, quantity pricing, and rigging accessories.
