The modular design of the IB-4048 F32 I-Beam Aluminum Truss allows portability and ease of set-up. The IB-4048 is a medium-duty truss ideal for applications requiring small trusses. The F32 Truss Series are fabricated according to TUV specifications and made with the highest quality 6082-T6 alloy aluminum. The F32 Truss consists of an upper and a lower main chord, including welded diagonal bracings. The trusses are connected using the simple, fast, and secure conical connection system, consisting of the conical receiver and the conical coupler, always secured together for safety, with the coupler pin and r-clip.
Custom Powder Coat Finishes Available Upon Request
Our line of 50mm 1.96″ – Clamps were developed explicitly for this truss system.
Do not exceed the load capacity of the IB-4048. No loads are permitted or should be supported from the connection point of the trusses. The IB-4048 should be thoroughly inspected before use. If any damage or defect occurs, the IB-4048 should not be used. Handle the truss segments with care and caution. Don’t drop them, drag them, and don’t throw truss segments on top of each other. Truss assembly should be carried out by those who are familiar with trussing. Do not attach the truss with damaged or fewer coupler connectors than required. Ensure the coupler connectors are installed correctly and that the coupler pin and cotter pins are in place and secured.
Model Number: IB-4048
Truss Series: F32
Brand Name: Global Truss America
Place of Origin: Shenzhen, China
Material: Aluminum Alloy AW-6082 T6
Measurement System: Metric

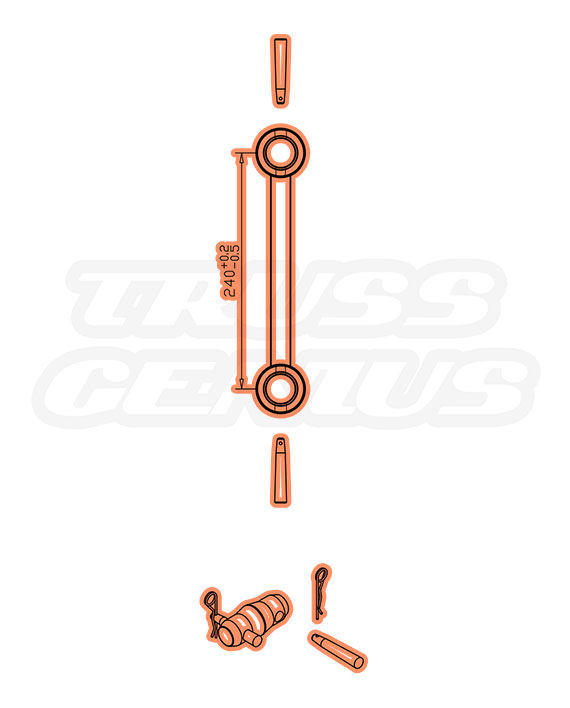

Overall Truss Diameter: 290mm x 290mm
Main Tubing Outer Diameter: 50mm
Main Tubing Wall Thickness: 2mm
Brace Tubing Outer Diameter: 20mm
Brace Tubing Wall Thickness: 2mm
Finish: Brushed Aluminum
Shape: I-Beam Straight Section
Product Weight: 1.70Kgs
