XT-SQ164
Original price was: $560.00.$230.00Current price is: $230.00.

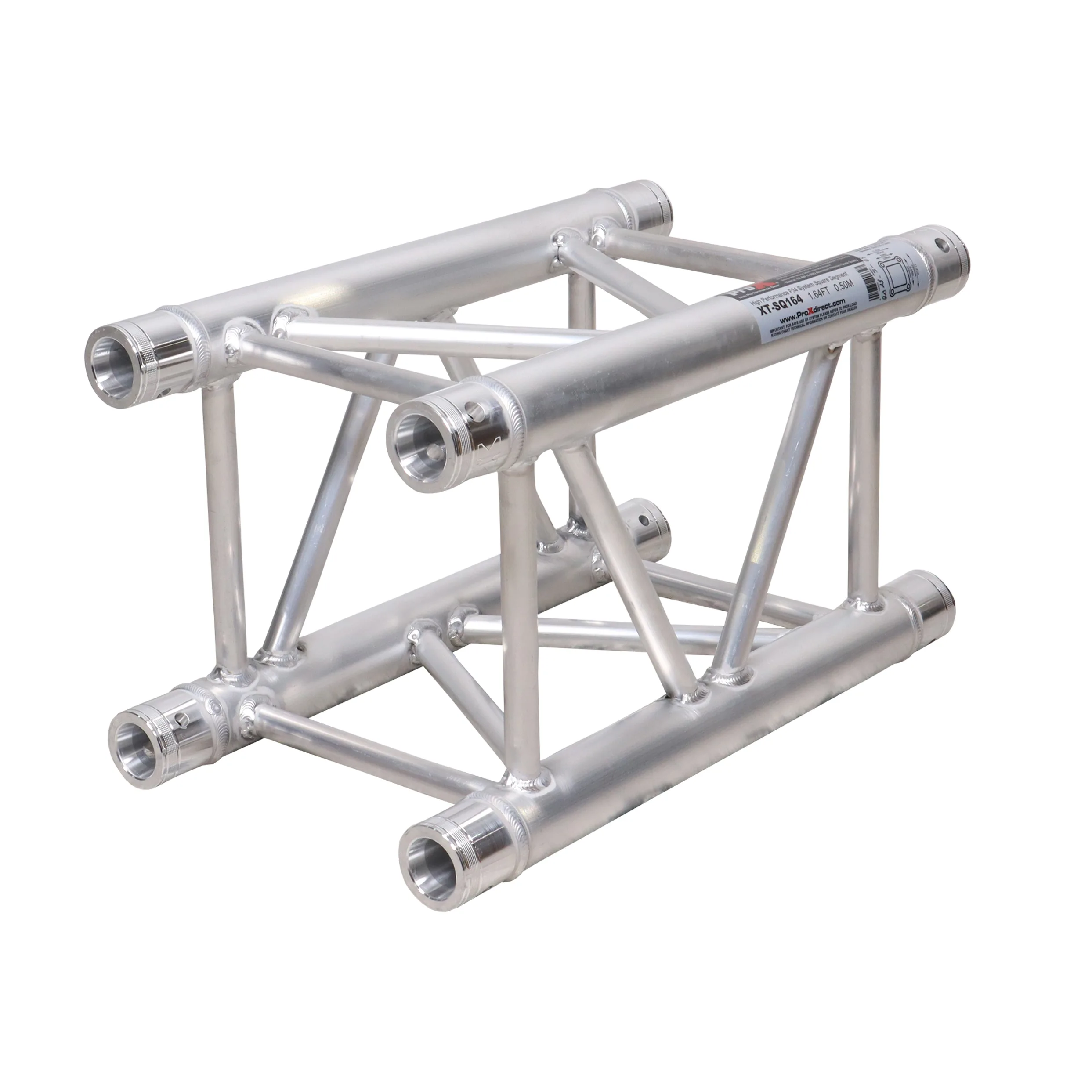

0.5 Meter (1.64 ft) ProX XT-SQ F34 Square Truss Section
Dimensions & Material Specifications
Length: 0.5 m (1.64 ft)
Profile: 290 mm (11.42 in) square
Alloy: EN AW-6082 T6 aluminum
Weight: 13 lb (5.9 kg)
Construction, Welding & Certification
Main Tubes: 50 mm (2 in) OD, 2 mm (0.08 in) wall.
Cross Bracing: 20 mm (0.75 in) diagonal tubes, 2 mm wall.
Finish: Natural Brushed Aluminum (Custom Powder Coating Available Upon Request)
Certification: TUV certified aluminum welding.
Connecting Hardware Included
4 Conical Couplers
8 Tapered Pins
8 R-Clips
F34 Compatibility & System Fit
Existing Systems: Built to industry-standard F34 dimensions. Connects with F34 and other standard 290 mm square truss systems that use conical connectors.
In stock
