What is included in the EVT290T-Arcata booth kit?

The kit includes all the necessary medium-duty triangular aluminum truss segments and the required conical connecting hardware to build the complete 10x10 frame.

Is the EVT290T-Arcata compatible with other 290mm truss systems?

Yes. The EVT290T-Arcata is fabricated from EN AW-6082 T6 aluminum alloy with standard 290mm triangular geometry and conical coupler connections, making it fully compatible with F33 and other standard 290mm triangular truss systems that use conical connectors. It can also be expanded by adding straight segments from the EVT290T series to adjust height, width, or depth.

How many people are needed to assemble this booth?

Minimum 2-3 people recommended. Assembly uses a conical connection system that requires only a steel hammer — no specialized tools or power equipment. The structure should be assembled by personnel familiar with truss rigging techniques, and all installations should be reviewed by a licensed professional engineer.

Can I pick up this booth locally?

Yes, local pickup is available for the EVT290T-Arcata. Simply select the On-Site Pickup option during checkout.

10x10 Trade Show Exhibit Display Booth | EVT290T-Arcata

Original price was: $9,840.00.Current price is: $4,920.00.

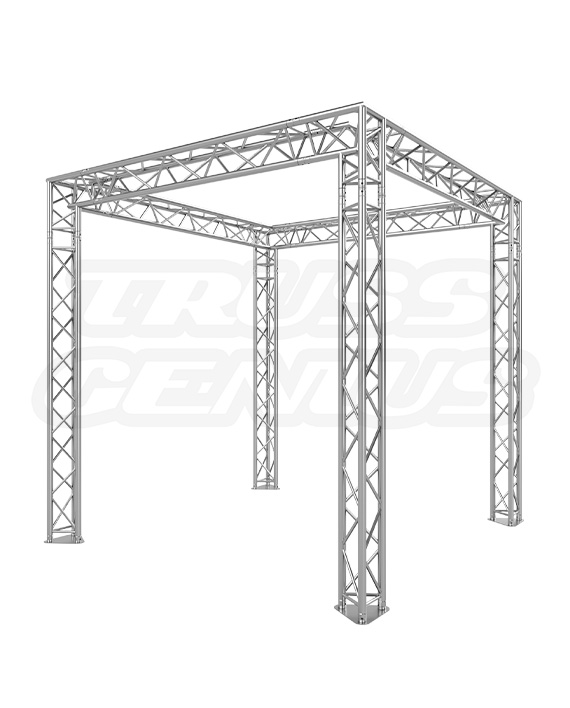

10x10 Trade Show Booth - Triangular Aluminum Truss Display System (EVT290T-Arcata)

Dimensions & Specs
Footprint: 9.84 ft x 9.84 ft (3 m x 3 m)
Overall Height: 9.84 ft (3 m)
Truss Profile: 11.41 in (290 mm) Triangle Truss
Coverage: ~100 sq ft
Type: Modular Triangle Truss System

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) OD / 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing / 0.08 in (2 mm) Wall Thickness
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)

Finish & Features
Surface: Aluminum Brush Finish
Certification: TUV Certified
Compatibility: Fits all standard 290mm / F33 Truss Systems
Weight: 276 lb (125.19 kg)

In stock

SKU: EVT290T-TSB-10x10-ARCATA Categories: 10x10 Trade Show Booths, Engineered Truss Systems

Product Details & Resources

EVT290T Triangular Booth System Knowledge Center

A Stronger Overhead Presence for the Show Floor.
Built with 290 mm Triangular Truss for Professional 10x10 Exhibits.

The EVT290T-Arcata is a complete 10x10 medium-duty triangular aluminum truss booth built from EVT290T 290 mm truss. It provides a professional overhead structure for trade shows, branded environments, lighting, signage, retail displays, and modular event builds.

System Facts

ModelEVT290T-Arcata

SKUEVT290T-TSB-10x10-ARCATA

Booth Footprint9.84x9.84 ft

Overall Height9.84 ft / 3 m

Truss Profile290 mm Triangular

System Weight276 lb / 125.19 kg

10x10 ftBooth Class

290 mmTriangular Profile

276 lbSystem Weight

50 mmMain Chords

ConicalConnection System

System Overview

A Professional 10x10 Triangular Truss Booth Built for Trade Shows, Lighting, and Modular Event Use.

The EVT290T-Arcata combines a 10x10 footprint, 9.84 ft overall height, and modular conical construction in one complete fixed booth configuration.

10x10 Booth Footprint

Provides a large branded display area for inline or island-style configurations.

Fixed 10x10 Layout

Designed to assemble as the specified 10x10 booth configuration shown for this system.

Light-Duty EVT290T Truss

Uses 290 mm square truss with 35 mm main chords for a compact exhibit profile.

Reusable Booth System

The booth can be transported, disassembled, and rebuilt in the same 10x10 configuration for future events.

Common Applications

Designed for Trade Shows and Branded Environments.

Trade Show Exhibits

Create a branded overhead structure for 10x10 exhibit spaces.

Product Displays

Frame product demonstrations, shelving, graphics, and display counters.

Branded Activations

Support banners, signage, lighting, and branded visual elements.

Temporary Retail

Build pop-up and promotional environments with reusable truss components.

Corporate Events

Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x10 Display System.

Exhibit Builders

For modular client booths and repeat trade-show installations.

Marketing Agencies

For branded activations, launches, and promotional environments.

Event Production Companies

For corporate displays, sponsor areas, and temporary event structures.

Rental Companies

For repeat-use 10x10 booth inventory that can be deployed across multiple events.

Retail Brands

For pop-up shops, product showcases, and temporary branded spaces.

In-House Exhibit Teams

For companies attending multiple events with reusable components.

Configuration

One Complete 10x10 Booth. Triangular Truss Orientation Must Follow the Approved Layout.

The supplied EVT290T-Arcata kit assembles as the specified 10x10 booth shown for the system. The triangular spans must use the approved apex orientation shown in the system documentation and engineering review.

Specified 10x10 Layout

The included component set is intended to build the complete Arcata 10x10 booth configuration.

Apex Orientation

Use the approved triangular truss orientation for the final structure. Do not rotate spans without engineering approval.

Repeatable Assembly

The booth can be disassembled, transported, and rebuilt in the same specified configuration.

Optional Expansion

Larger footprints or different layouts require additional EVT290T components and a new engineering review.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290T-Arcata

SKUEVT290T-TSB-10x10-ARCATA

BrandEvolve Truss

System Type10x10 Light-Duty Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint9.84x9.84 ft / 3x3 m

Overall Width118.11 in / 3 m

Overall Depth118.11 in / 3 m

Overall Height9.84 ft / 3 m / 118.11 in

System Weight276 lb / 125.19 kg

Truss Construction

EVT290T System

Truss ProfileEVT290T 290 mm / 11.41 in Triangular

Main Chords50 mm / 1.96 in OD, 2 mm Wall

Brace Tubing20 mm / 0.78 in, 2 mm Wall

MaterialEN AW-6082 T6 Aluminum

FinishBrushed Aluminum

CertificationTUV Specifications

Assembly and Compatibility

System Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly Crew3 to 4 People

Assembly ToolSmall Hammer

Minimum Crew2 to 3 People Recommended

System Compatibility

EVT290T, F33, and Standard 290 mm Triangular Truss Systems.

The EVT290T-Arcata uses 290 mm triangular truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290T Compatibility

Integrates with compatible EVT290T straight sections, corners, and expansion components.

F33 Compatibility

Compatible with matching F33 290 mm triangular truss geometry and conical hardware.

Standard 290 mm Triangular Systems

Verify receiver spacing, connection geometry, and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components

Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.

02 — Build the Overhead Crown

Assemble the upper 10x10 rectangular structure at floor level.

03 — Install Base Components

Position and secure the bases according to the specified 10x10 booth layout.

04 — Add Vertical Sections

Raise the crown in a controlled sequence and install the vertical supports.

05 — Lock Every Connection

Verify all couplers, tapered pins, and R-clips are fully seated.

06 — Final Inspection

Confirm plumb, level, ballast, clearances, and attachment security before use.

Published Load and Stability Reference

Loading and Ballast Must Match the Approved Triangular Orientation.

Total Distributed Load

140 lb per linear foot total, based on 70 lb per top chord and subject to engineering review.

Bottom Chord Load

80 lb per linear foot on the bottom chord only.

Center Point Load

630 lb per span on the bottom chord only. Point and distributed loads must not be treated as concurrent unless engineering documentation states otherwise.

Rear Scrim or Banner

Use 800 lb of ballast at each corner, or engineered anchorage to a concrete slab, when a rear scrim or banner is installed.

Load values depend on the final span, support positions, orientation, and load distribution. A licensed professional engineer must review the completed structure, loads, ballast, anchorage, and venue conditions.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290T-compatible components and connection hardware.

Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.

Do not apply loads directly at truss connections unless specifically allowed by the engineering data.

Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.

Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be configured in different layouts?

No. The EVT290T-Arcata is designed to assemble in one specified 10x10 booth configuration.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT290T main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x10 truss exhibit?

Contact us for assembly support, graphics and lighting planning, additional EVT290T components, engineering, CAD files, and quantity pricing.
