Name: 10x20 Truss Exhibit Display - EVT220S-Blythe
Brand: Evolve Truss
SKU: EVT220S-TSB-10x20-BLYTHE
Price: 6162.00 USD
Availability: InStock

EVT220S Booth System Knowledge Center

A Modular 10x20 Truss Exhibit.
Reconfigurable for Two Booth Layouts.

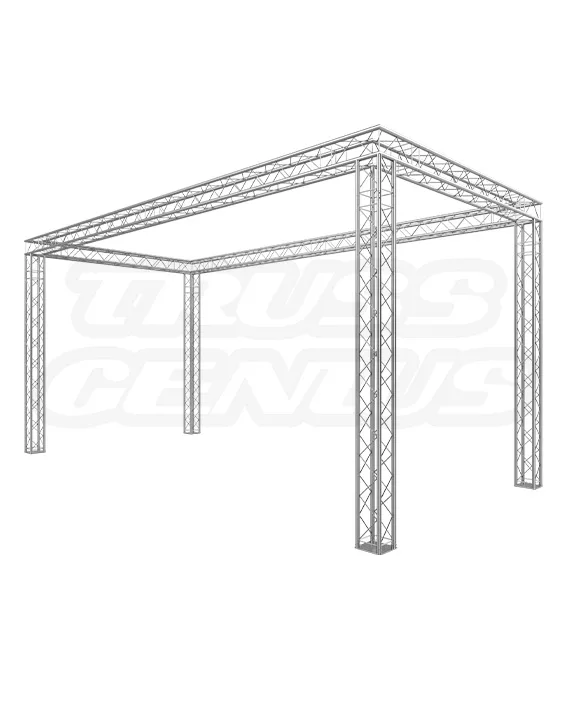

The EVT220S-Blythe is a 10x20 light-duty square aluminum truss booth designed for trade shows, exhibits, product displays, branded activations, and temporary retail environments. Built from EVT220S 220 mm square truss, the system can be reconfigured into an inline layout or a smaller island-style booth and is typically assembled by a crew of three to four people.

System Facts

ModelEVT220S-Blythe

SKUEVT220S-TSB-10x20-BLYTHE

Booth Footprint10x20 ft

Overall Height9.84 ft / 3 m

Truss SeriesEVT220S

System Weight232 lb

10x20 ftBooth Footprint

220 mmSquare Truss

35 mmMain Chords

232 lbSystem Weight

2 LayoutsReconfiguration Options

System Overview

A Lightweight Exhibit Structure Built for Repeat Use.

The EVT220S-Blythe combines a 10x20 footprint, 9.84 ft overall height, modular conical truss construction, and a reconfigurable layout for trade-show use.

10x20 Exhibit Footprint

Provides a large branded display area for inline or island-style configurations.

Two Booth Layouts

The system can be reconfigured into an inline booth or a smaller island layout.

Light-Duty EVT220S Truss

Uses 220 mm square truss with 35 mm main chords for a compact exhibit profile.

Reusable Modular System

Components can be transported, reassembled, expanded, or reused in future layouts.

Common Applications

Designed for Trade Shows and Branded Environments.

Trade Show Exhibits

Create a branded overhead structure for 10x20 exhibit spaces.

Product Displays

Frame product demonstrations, shelving, graphics, and display counters.

Branded Activations

Support banners, signage, lighting, and branded visual elements.

Temporary Retail

Build pop-up and promotional environments with reusable truss components.

Corporate Events

Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x20 Display System.

Exhibit Builders

For modular client booths and repeat trade-show installations.

Marketing Agencies

For branded activations, launches, and promotional environments.

Event Production Companies

For corporate displays, sponsor areas, and temporary event structures.

Rental Companies

For inventory that can serve more than one exhibit layout.

Retail Brands

For pop-up shops, product showcases, and temporary branded spaces.

In-House Exhibit Teams

For companies attending multiple events with reusable components.

Configuration Options

One System. Up to Two Booth Designs.

10x20 Inline Layout

Use the full footprint for a traditional inline exhibit with overhead branding.

Small Island Layout

Reconfigure the components into a smaller island-style display.

Expandable Platform

Additional EVT220S components can be added for larger or custom layouts.

Reusable Components

Straight sections, corners, bases, and hardware can be reassigned to future designs.

Included Components

Complete Truss System with Connecting Hardware.

The system includes the EVT220S truss components required for the shown booth configuration, along with all couplers, tapered pins, and R-clips.

EVT220S Truss Sections

Light-duty 220 mm square aluminum truss components for the booth structure.

Corners and Junctions

Required connecting geometry for the specified booth layouts.

Base Components

Support components for the freestanding exhibit structure.

Conical Hardware

All couplers, tapered pins, and R-clips are included.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT220S-Blythe

SKUEVT220S-TSB-10x20-BLYTHE

BrandEvolve Truss

System Type10x20 Light-Duty Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint10x20 ft / 3.04 x 6.09 m

Overall Width118.08 in

Overall Depth236.16 in

Overall Height118.08 in / 9.84 ft / 3 m

System Weight232 lb

Truss Construction

EVT220S System

Truss Profile220 mm / 8.66 in Square

Main Chords35 mm / 1.37 in OD, 2 mm Wall

MaterialEN AW-6061 T6 Aluminum

FinishBrushed Aluminum

CertificationTUV Specifications

Assembly and Compatibility

System Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly Crew3 to 4 People

Assembly ToolSteel Hammer

Clamp Requirement35 mm Clamps Only

Truss CompatibilityEVT220S, F24 and Standard 220 mm Square Truss Systems

System Compatibility

EVT220S, F24, and Standard 220 mm Square Truss.

The Blythe system is designed around EVT220S 220 mm square truss and is listed as compatible with F24 and standard 220 mm square truss systems.

EVT220S Compatibility

Direct fit within the EVT220S light-duty square truss family.

F24 Compatibility

Listed as compatible with F24 truss geometry.

220 mm Systems

May be expanded with matching standard 220 mm square truss components.

35 mm Clamp Requirement

Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components

Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.

02 — Build the Overhead Crown

Assemble the upper 10x20 rectangular structure at floor level.

03 — Install Base Components

Position and secure the bases according to the approved booth layout.

04 — Add Vertical Sections

Raise the crown in a controlled sequence and install the vertical supports.

05 — Lock Every Connection

Verify all couplers, tapered pins, and R-clips are fully seated.

06 — Final Inspection

Confirm plumb, level, ballast, clearances, and attachment security before use.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT220S-compatible components and connection hardware.

Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.

Do not apply loads directly at truss connections unless specifically allowed by the engineering data.

Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.

Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be reconfigured?

Yes. The system is listed for up to two booth designs: an inline layout and a smaller island-style layout.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT220S main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x20 truss exhibit?

Contact us for booth layout support, graphics and lighting planning, additional EVT220S components, engineering, CAD files, and quantity pricing.
