What does the EVT220T-Balboa booth system actually include in the box?

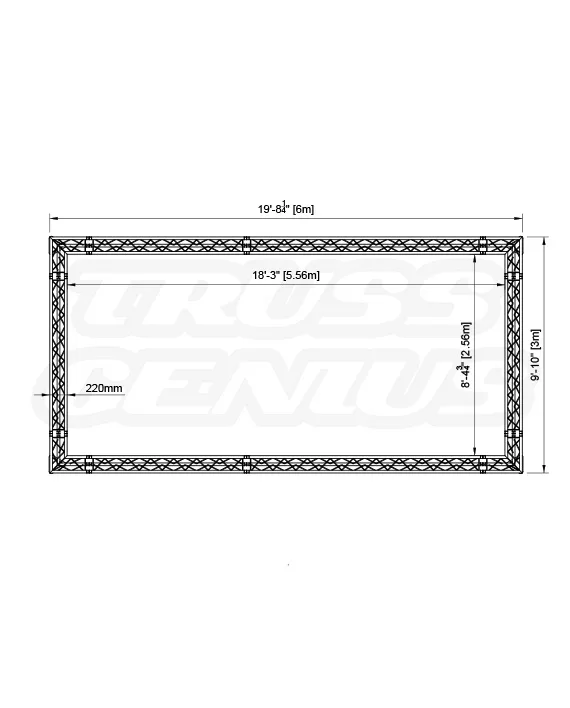

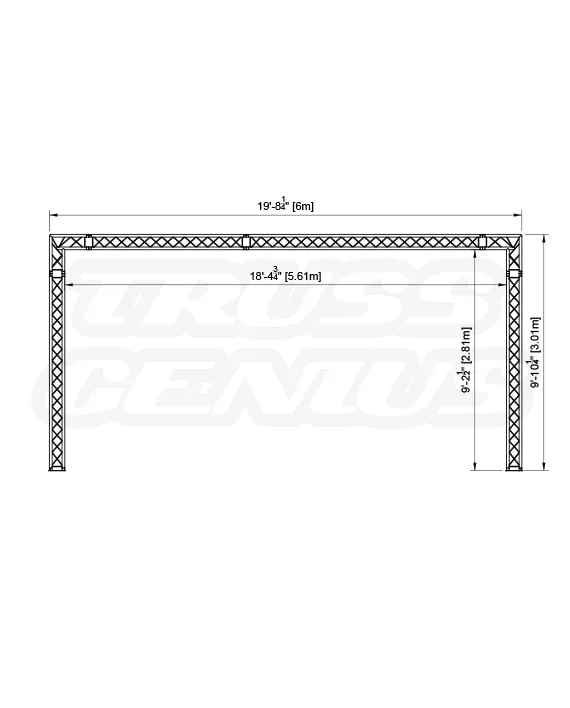

The EVT220T-Balboa includes the complete set of EVT220T triangular aluminum truss sections and hardware needed to build the 10x20 booth structure, plus a detailed 3D technical drawing with dimensions and part labels for assembly guidance. The listing does not include graphics, fabric panels, lighting, or flooring — those are supplied separately by the exhibitor. If you need a formal engineering report for your show venue, that is available as a separate service and should be requested during the purchasing process.

Can this booth expand beyond 10x20 after purchase?

Yes. The EVT220T-Balboa is built on the EVT220T light-duty triangular truss system, and additional EVT220T sections can be purchased separately to extend the structure into a larger configuration. This makes the initial 10x20 investment a foundation rather than a ceiling — you can grow the booth footprint as your trade show budget expands without replacing the original system.

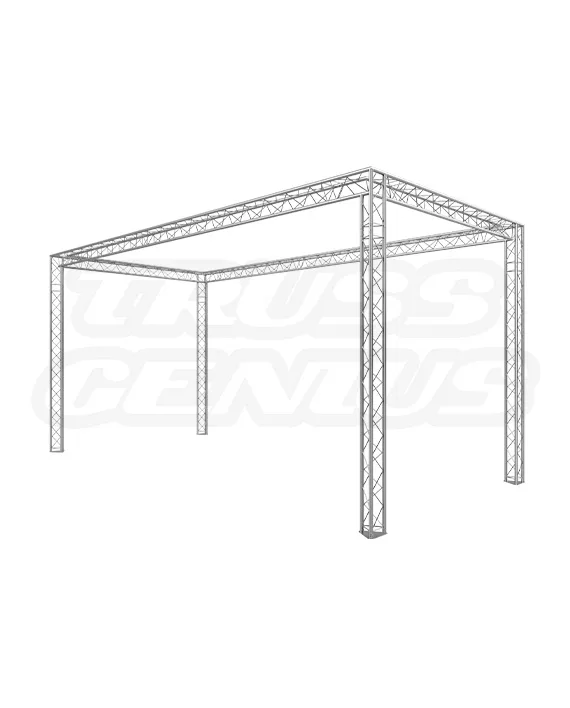

EVT220T-Balboa 10x20 trade show exhibit display booth built with light-duty triangular aluminum truss in brushed aluminum finish

10x20 Trade Show Exhibit Display Booth | EVT220T-Balboa

Original price was: $9,060.00.Current price is: $4,530.00.

Light-Duty Triangular Aluminum Truss Booth
Create up to 2 (two) different booth configurations

Truss System Dimensions
Overall Truss System Height: 9.84 ft (3 m)
Overall Truss System Width: 9.84 ft (3 m)
Overall Truss System Length: 19.64 ft (5.98 m)
Approximate Coverage: 200 sq ft

Truss Dimensions
Overall Truss Width: 8.66 in (220 mm)
Main Tubing: 1.37 in (35 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.31 in (8 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness

Construction & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 200 lb (90.71 kg)

In stock

SKU: EVT220T-TSB-10x20-BALBOA Category: 10x20 Trade Show Booths

Product Details & Resources

EVT220T Triangular Booth System Knowledge Center

Stretch the Brand Across a Full 20-Foot Exhibit.
A Lightweight Triangular Truss System with Two Supported Booth Layouts.

The EVT220T-Balboa is a complete 10x20 lightweight triangular aluminum truss trade show booth built from EVT220T 220 mm truss. It can be assembled in two supported booth layouts, handled by a 3-to-4-person crew, and expanded with additional EVT220T components for larger exhibit configurations.

System Facts

ModelEVT220T-Balboa

SKUEVT220T-TSB-10x20-BALBOA

Booth Footprint10x20 ft

Overall Height9.84 ft / 3 m

Supported LayoutsUp to 2 Designs

System Weight200 lb / 90.72 kg

10x20 ftPrimary Footprint

220 mmTriangular Profile

200 lbSystem Weight

3–4Recommended Crew

ConicalConnection System

System Overview

A Flexible 10x20 Triangular Truss Exhibit System Built for Exhibits, Retail and Showroom Displays, and Banner Frames.

The EVT220T-Balboa combines a 9.84x19.64x9.84 ft cube footprint, lightweight triangular geometry, conical assembly, and a clean brushed aluminum finish for professional display environments.

9.84-Foot Cube Footprint

Creates a compact 9.84x19.64x9.84 ft booth structure for standard exhibit spaces.

Lightweight Triangular Geometry

The system can be reconfigured into an inline booth or a smaller island layout.

Light-Duty EVT220T Truss

Uses 220 mm triangular truss with 35 mm main chords for a compact exhibit profile.

Reusable Modular System

Components can be transported, reassembled, expanded, or reused in future layouts.

Common Applications

Designed for Trade Shows and Branded Environments.

Trade Show Booths

Create a branded overhead structure for 10x20 exhibit spaces.

Product Displays

Frame product demonstrations, shelving, graphics, and display counters.

Branded Activations

Support banners, signage, lighting, and branded visual elements.

Temporary Retail

Build pop-up and promotional environments with reusable truss components.

Corporate Events

Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x20 Display System.

Trade Show Exhibitors

For modular client booths and repeat trade-show installations.

Marketing Agencies

For branded activations, launches, and promotional environments.

Banner and Sign Frames Companies

For corporate displays, sponsor areas, and temporary event structures.

Exhibit and Rental Companies

For inventory that can serve more than one exhibit layout.

Retail Brands

For pop-up shops, product showcases, and temporary branded spaces.

In-House Exhibit Teams

For companies attending multiple events with reusable components.

Configuration Options

One Component Set. Up to Two Supported Booth Designs.

The EVT220T-Balboa component set supports the primary 10x20 inline booth and a smaller island-style layout. Use only the documented configurations and have the final structure reviewed for the venue, loads, and accessories.

10x20 Inline Layout

Uses the complete system to create the full 10x20 exhibit footprint.

Smaller Island Layout

Reconfigures the included component set into the supported compact island-style design.

Reusable System

The system can be disassembled, transported, and rebuilt for future events.

Future Expansion

Additional EVT220T sections may be purchased separately for larger configurations.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT220T-Balboa

SKUEVT220T-TSB-10x20-BALBOA

BrandEvolve Truss

System Type10x20 Light-Duty Triangular Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint10x20 ft / 3.04x6.09 m

Overall Width118.11 in / 3 m

Overall Depth118.11 in / 3 m

Overall Height9.84 ft / 3 m / 118.08 in

System Weight200 lb / 90.72 kg

Truss Construction

EVT220T System

Truss ProfileEVT220T 220 mm / 8.66 in Triangular

Main Chord Tubing35 mm / 1.37 in OD, 2 mm Wall

MaterialEN AW-6061 T6 Aluminum

FinishBrushed Aluminum

CertificationTUV Specifications

Assembly and Compatibility

System Requirements

Connection TypeConical Connection System

Assembly Crew3 to 4 People

Assembly ToolSteel Hammer

Distributed Load CapacityApprox. 65 lb per Linear Foot

Warranty1-Year Limited Warranty Against Manufacturing Defects

System Compatibility

EVT220T, F23, and Standard 220 mm Triangular Truss Systems.

The EVT220T-Balboa uses 220 mm triangular truss geometry, 35 mm main chords, and a matching conical connection system. Verify receiver spacing, coupler dimensions, and engineering data before combining components from different systems.

EVT220T Compatibility

Integrates with compatible EVT220T straight sections, corners, and expansion components.

F23 Compatibility

Compatible with matching F23 220 mm triangular truss geometry and conical hardware.

Standard 220 mm Systems

Verify connection geometry and engineering data before combining systems.

35 mm Clamp Requirement

Use properly rated 35 mm clamps only. Standard 50 mm clamps will not fit.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components

Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.

02 — Build the Overhead Crown

Assemble the upper 10x20 rectangular structure at floor level.

03 — Install Base Components

Position and secure the bases according to the approved booth layout.

04 — Add Vertical Sections

Raise the crown in a controlled sequence and install the vertical supports.

05 — Lock Every Connection

Verify all couplers, tapered pins, and R-clips are fully seated.

06 — Final Inspection

Confirm plumb, level, ballast, clearances, and attachment security before use.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT220T-compatible components and connection hardware.

Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.

Do not apply loads directly at truss connections unless specifically allowed by the engineering data.

Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.

Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be reconfigured?

Yes. The system is listed for up to two booth designs: an inline layout and a smaller island-style layout.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT220T main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x20 truss exhibit?

Contact us for booth layout support, graphics and lighting planning, additional EVT220T components, engineering, CAD files, and quantity pricing.
