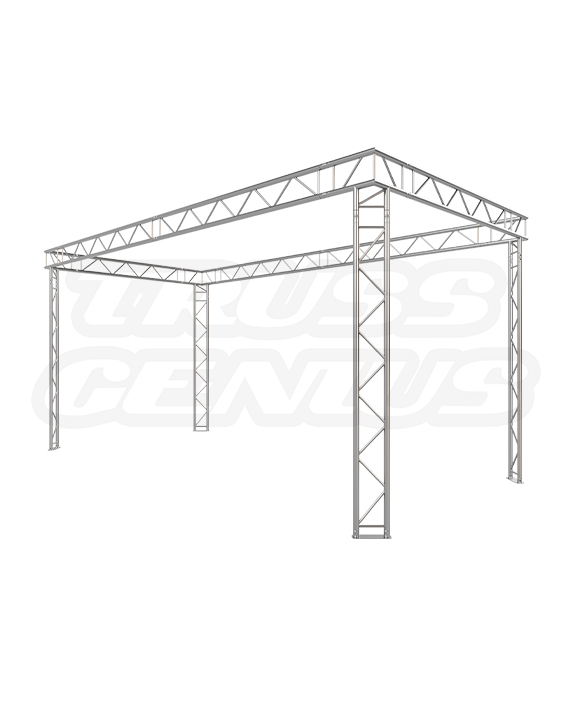

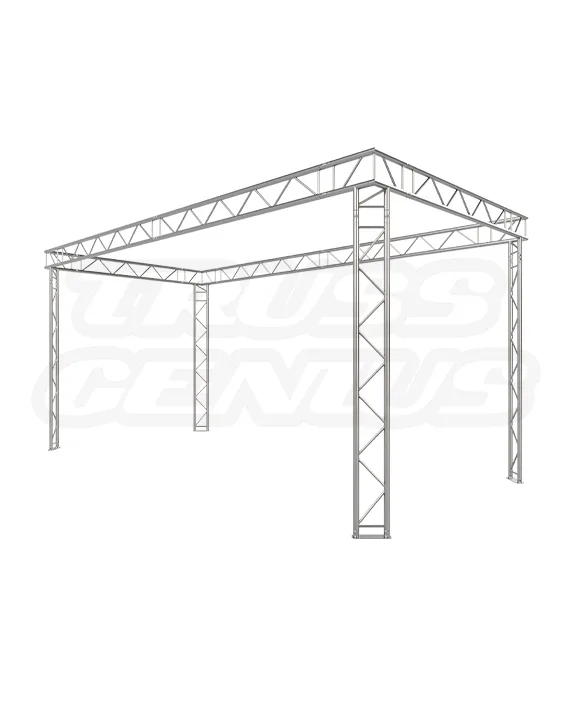

10x20 Trade Show Exhibit Display Booth | EVT290I-Bodega

Original price was: $8,264.00.Current price is: $4,132.00.

Medium-Duty I-Beam Aluminum Truss Booth
Create up to 2 (two) different booth configurations

Truss System Dimensions
Overall Truss System Height: 9.84 ft (3 m)
Overall Truss System Width: 9.84 ft (3 m)
Overall Truss System Length: 19.68 ft (6 m)
Approximate Coverage: 200 sq ft

Truss Dimensions
Overall Truss Width: 11.41 in (290 mm)
Main Tubing: 1.96 in (50 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness

Construction & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 208 lb (94.34 kg)

In stock

SKU: EVT290I-TSB-10x20-BODEGA Category:

EVT290I I-Beam Booth System Knowledge Center

10 x 20 Trade Show Booth.
Portable Aluminum Truss Exhibit Display by EVT290I-Bodega.

The EVT290I-Bodega is a complete 10 x 20 trade show exhibit display booth built from EVT290I 290 mm I-Beam aluminum truss. Its ladder-style profile packs efficiently for transport while creating an open-air structure for graphics, lighting, signage, product displays, demonstrations, retail activations, and repeat event use.

Confirmed Product Facts

ModelEVT290I-Bodega
SKUEVT290I-TSB-10x20-BODEGA
Booth Footprint9.84 x 19.69 ft / 3 x 6 m
Overall Height9.84 ft / 3 m
System Weight208 lb / 94.35 kg
Included Hardware22 Couplers, 52 Pins, 52 R-Clips
10 x 20 ftTrade Show Booth
290 mmI-Beam Truss Profile
208 lbSystem Weight
22 / 52 / 52Couplers / Pins / R-Clips
3–4Typical Assembly Crew

Product Overview

A Complete 10 x 20 Trade Show Booth for Larger Branded Environments.

The Bodega provides an approximately 200 sq ft exhibit footprint with a 9.84 ft overall height. It uses EVT290I I-Beam truss, a two-chord ladder-style profile that stacks flatter than square box truss for efficient storage and transport. The supplied component set must be assembled only in its current documented configuration.

10 x 20 Exhibit Area
Provides approximately 200 sq ft for planned brand presentation, product displays, demonstrations, and visitor engagement.
Complete Booth Structure
Includes the truss structure and conical connection hardware for the documented Bodega booth system.
Portable I-Beam Profile
The ladder-style profile stacks efficiently for transport and storage between events.
Repeat Event Use
Disassemble, transport, and rebuild the documented booth configuration for future events.

Common Applications

Built for 10 x 20 Trade Shows, Exhibits, and Branded Environments.

Select the EVT290I-Bodega where a 10 x 20 trade show booth supports the approved exhibit footprint, attendee flow, brand presentation, and installed display components.

Trade Show Exhibits
Create a larger exhibit area for brand messaging, demonstrations, meetings, and visitor engagement.
Product Displays
Frame display counters, shelving, graphics, lighting, signage, and product demonstrations.
Branded Activations
Support planned banners, visual branding, lighting, and related display elements.
Corporate and Retail Events
Build reusable sponsor, hospitality, pop-up, promotion, and product-showcase environments.

Why I-Beam Truss

A Flat-Stacking Truss Profile for Portable Booth Logistics.

EVT290I is a 290 mm I-Beam or ladder-style aluminum truss. Its two main chords and diagonal rungs create a lower-profile member than square box truss, helping the booth pack and stack efficiently between events.

Flat-Packing Profile
I-Beam members stack efficiently to reduce transport and storage volume compared with box truss.
50 mm Main Chords
The current product specification identifies 50 mm outer-diameter main chord tubing with a 2 mm wall.
Configured Orientation Matters
Install truss members in the orientation specified by current documentation and the approved booth layout.

Included Components

A Complete Truss Structure and Confirmed Connection Hardware.

The Bodega kit includes EVT290I truss components, bases, corners, and the conical connection hardware needed for the documented booth configuration. Confirm the current packing list and technical drawing before assembly.

EVT290I Truss Sections
Form the overhead frame and vertical supports of the documented booth assembly.
Corners and Bases
Provide the documented frame connections and floor-contact support components.
22 Couplers, 52 Coupler-Pins, 52 R-Clips
The package includes 22 conical couplers, 52 tapered coupler-pins, and 52 r-clips for the documented system connections.
Small Hammer Required
Use a steel hammer to seat tapered pins during conical connection assembly.

Technical Reference

EVT290I-Bodega Confirmed Specifications.

Identification

Booth System

ModelEVT290I-Bodega
SKUEVT290I-TSB-10x20-BODEGA
Product Type10 x 20 Trade Show Exhibit Display Booth
System Weight208 lb / 94.35 kg

Dimensions

Overall Size

Booth Footprint9.84 x 19.69 ft / 3 x 6 m
Overall Height9.84 ft / 3 m
CoverageApproximately 200 sq ft

Truss Construction

EVT290I System

Truss Profile290 mm I-Beam / Ladder Truss
MaterialAluminum Alloy EN AW-6082 T6
Main Chords50 mm OD / 2 mm Wall
Diagonal Braces20 mm OD / 2 mm Wall
FinishBrushed Aluminum

Included Hardware

Connection Supply

Conical Couplers22 Included
Tapered Coupler-Pins52 Included
R-Clips52 Included
Assembly ToolSmall Steel Hammer
Typical Crew3 to 4 People

System Compatibility

EVT290I and Matching 290 mm I-Beam Conical Truss Systems.

The standard Bodega booth uses EVT290I 290 mm I-Beam truss and matching conical connection hardware. Nominal size or apparent physical fit does not independently establish compatibility, capacity, or approval for a revised booth structure.

EVT290I Compatibility
The standard system is built around compatible EVT290I straight sections, corners, bases, and conical hardware.
F32-Format Components
Confirm receiver details, connection dimensions, couplers, coupler-pins, r-clips, and truss orientation before combining systems.
Before Mixing Systems
Confirm chord spacing, component condition, layout, installed loads, and engineering data for the complete revised structure.

Assembly Overview

Build the Overhead Frame First. Then Add the Vertical Supports.

The Bodega is typically assembled by three to four people using a steel hammer for tapered-pin conical connections. Follow the current technical drawing, packing list, and manufacturer instructions for the supplied configuration.

01 — Organize Components
Lay out truss sections, corners, bases, 22 couplers, 52 coupler-pins, and 52 r-clips by documented position.
02 — Build the Overhead Frame
Assemble the upper 10 x 20 rectangular structure at floor level.
03 — Position Bases
Position and secure base components according to the current documented booth layout.
04 — Add Vertical Supports
Raise the frame in a controlled sequence and install vertical supports as specified.
05 — Check Connections
Verify every included coupler, tapered coupler-pin, and r-clip is fully seated and engaged.

Safety and Engineering

Exhibit Loads, Bases, and Overhead Elements Must Be Evaluated as One System.

The supplied kit is intended for its documented Bodega booth configuration. Added banners, lighting, signage, displays, clamps, accessories, or altered layouts change the completed system and require review using current manufacturer documentation and qualified technical guidance. Do not use damaged, incomplete, or improperly oriented components.

Follow the current technical drawing and manufacturer instructions for assembly and truss orientation.
Confirm bases, venue conditions, clearances, and the installed exhibit plan before opening to attendees.
Inspect every truss section, base, coupler, tapered coupler-pin, and r-clip before each installation.
Obtain qualified review before changing layouts or adding loads beyond the documented configuration.

Trade Show Booth Questions

EVT290I-Bodega Frequently Asked Questions.

Is the EVT290I-Bodega a 10 x 20 trade show booth?

Yes. The Bodega is a complete 10 x 20 aluminum truss exhibit display booth with an approximately 9.84 x 19.69 ft footprint.

What connection hardware is included?

The complete system includes 22 conical couplers, 52 tapered coupler-pins, and 52 r-clips.

How many people are typically needed for assembly?

The documented typical assembly crew is three to four people.

What tool is required for the connections?

A small steel hammer is used to seat tapered pins in the conical connection system.

What is the confirmed main-chord size?

The current product specifications identify 50 mm outer-diameter main chords with a 2 mm wall thickness.
