Can this booth be split into two separate 10x10 booths at different shows?

Not directly — the EVT290S-Bigsur is engineered as a complete 10x20 system and the components are sized and configured for that layout. However, because the system is built from standard EVT290S series sections, the components can theoretically be reconfigured with additional EVT290S corner blocks and sections into different booth footprints. Any reconfiguration beyond the 4 documented layouts must be reviewed by a licensed structural engineer before use.

What is the difference between the 190 lb/lf rating on the 10-ft spans and the 110 lb/lf rating on the 20-ft spans?

Load capacity in a truss system decreases as span length increases — the longer the unsupported distance between support points, the more deflection and bending stress the truss experiences under the same load. The 10-foot horizontal spans in this booth can carry 190 lb per linear foot because they are shorter and stiffer under load. The 20-foot spans carry a lower 110 lb per linear foot because the longer unsupported distance reduces the allowable load. Never apply loads based on the shorter span rating across the longer spans.

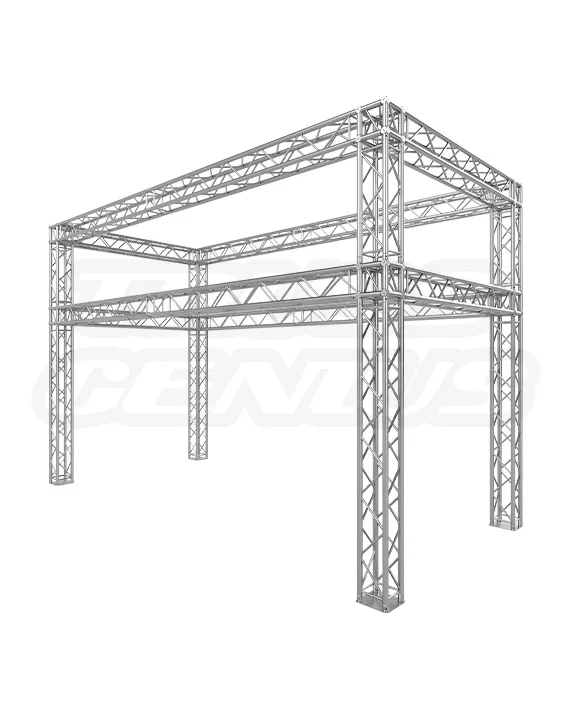

10x20 Trade Show Exhibit Display Booth EVT290S-Bigsur, robust and versatile exhibition solution

20-Foot Truss Trade Show Booth with Banner Openings Front View

20-Foot Truss Trade Show Booth with Banner Openings

10x20 Trade Show Exhibit Display Booth | EVT290S-Bigsur

Original price was: $31,744.00.Current price is: $15,872.00.

10x20 Truss Display System — Medium-Duty Square Aluminum Truss Booth

Dimensions & Specs
Footprint: 19.98 ft x 9.84 ft (6 m x 3 m)
Overall Height: 13.38 ft (4.07 m)
Truss Profile: 11.41 in (290 mm) Square Truss
Structure: Dual-tier square truss system with banner-ready overhead spans
Banner Spans: 20 ft x 3.5 ft and 10 ft x 3.5 ft scrims on all four overhead spans
Coverage: ~200 sq ft
Configurations: Up to 4 different 10x20 trade show booth layouts

Construction
Material Type: Aluminum Alloy EN AW-6082 T6
Main Tubing: 1.96 in (50 mm) OD / 0.08 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing / 0.08 in (2 mm) Wall Thickness
Connection Type: Conical Connection System (Includes Couplers, Tapered Pins, and R-Clips)

Finish & Features
Surface: Aluminum Brush Finish
Weight: 924 lb (419.11 kg)
Included: All Couplers, Tapered Pins, and R-Clips
Engineer-Certified: Verified load ratings for trade show exhibit booth deployments

In stock

SKU: EVT290S-TSB-10x20-BIGSUR Categories: 10x20 Trade Show Booths, Engineered Truss Systems

Product Details & Resources

EVT290S Reconfigurable Booth System Knowledge Center

Rise Above the Standard 10x20 Exhibit.
A 13.38-Foot Banner-Ready Truss System with Four Documented Layouts.

The EVT290S-Bigsur is an engineer-certified 10x20 square aluminum truss display system built from EVT290S 290 mm truss. Its 13.38 ft height, banner-ready design, verified span ratings, and four documented layouts make it suitable for trade shows, branded environments, lighting, monitor arrays, rigged signage, inline exhibits, and compact island configurations.

System Facts

ModelEVT290S-Bigsur

SKUEVT290S-TSB-10x20-BIGSUR

Primary Footprint19.98x9.84 ft

Overall Height13.38 ft / 4.07 m

Supported LayoutsUp to 4 Designs

System Weight924 lb / 419.11 kg

10x20 ftPrimary Footprint

13.38 ftOverall Height

924 lbSystem Weight

4Documented Layouts

ConicalConnection System

System Overview

Verified Capacity Meets 13.38 Feet of Exhibit Presence.

The EVT290S-Bigsur combines a 19.98x9.84 ft primary footprint, a 13.38 ft overall height, and four documented booth layouts. Published distributed-load references support substantial lighting, monitor arrays, and rigged signage when the system is assembled and loaded according to its engineering documentation.

13.38-Foot Height

Creates a taller visual profile for banners, signage, lighting, and branded architectural elements.

Four Documented Layouts

The same component set supports inline, compact-island, and hybrid booth configurations.

Banner-Ready Design

The system is designed to accommodate banner and scrim applications when properly ballasted or anchored.

Engineer-Certified System

Published load references and structural documentation support professional planning and review.

Common Applications

Designed for Trade Shows and Branded Environments.

Trade Show Exhibits

Create a branded overhead structure for 10x20 exhibit spaces.

Product Displays

Frame product demonstrations, shelving, graphics, and display counters.

Branded Activations

Support banners, signage, lighting, and branded visual elements.

Temporary Retail

Build pop-up and promotional environments with reusable truss components.

Corporate Events

Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x20 Display System.

Exhibit Builders

For modular client booths and repeat trade-show installations.

Marketing Agencies

For branded activations, launches, and promotional environments.

Event Production Companies

For corporate displays, sponsor areas, and temporary event structures.

Rental Companies

For repeat-use 10x20 booth inventory that can be deployed across multiple events.

Retail Brands

For pop-up shops, product showcases, and temporary branded spaces.

In-House Exhibit Teams

For companies attending multiple events with reusable components.

Configuration Options

One Engineered Component Set. Up to Four Documented Booth Layouts.

The EVT290S-Bigsur reconfigures into up to four documented booth layouts, including inline, compact-island, and hybrid configurations. Reconfiguration beyond those documented layouts requires additional components and review by a licensed structural engineer.

Primary 10x20 Inline Layout

Uses the component set to create the full 19.98x9.84 ft exhibit footprint.

Compact-Island Layouts

The system supports documented smaller island-style configurations with open visitor access.

Hybrid Configurations

Additional documented arrangements provide flexibility for different event footprints and branding needs.

Beyond Four Layouts

Any configuration beyond the documented layouts requires additional EVT290S components and licensed engineering review.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290S-Bigsur

SKUEVT290S-TSB-10x20-BIGSUR

BrandEvolve Truss

System Type10x20 Reconfigurable Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint19.98x9.84 ft / 6x3 m

Documented LayoutsUp to 4 Configurations

Coupler MaterialS45C Carbon Steel

Overall Width118.08 in / 3 m

Overall Depth239.76 in / 6 m

Overall Height160.56 in / 13.38 ft / 4.07 m

System Weight924 lb / 419.11 kg

Truss Construction

EVT290S System

Truss ProfileEVT290S 290 mm / 11.41 in Square

Main Chords50 mm / 1.96 in OD, 2 mm Wall

Brace Tubing20 mm / 0.78 in Diagonal, 2 mm Wall

MaterialEN AW-6082 T6 Aluminum

FinishBrushed Aluminum

CertificationTUV Specifications

Assembly and Compatibility

System Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly Crew3 to 4 People

Assembly ToolsSmall Hammer

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The EVT290S-Bigsur uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Verify receiver spacing, coupler dimensions, and engineering data before combining components.

EVT290S Compatibility

Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.

F34 Compatibility

Compatible with matching F34 290 mm square truss geometry and conical hardware.

Standard 290 mm Systems

Verify connection geometry and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components

Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.

02 — Build the Overhead Crown

Assemble the upper 10x20 rectangular structure at floor level.

03 — Install Base Components

Position and secure the bases according to the specified 10x20 booth layout.

04 — Add Vertical Sections

Raise the crown in a controlled sequence and install the vertical supports.

05 — Lock Every Connection

Verify all couplers, tapered pins, and R-clips are fully seated.

06 — Final Inspection

Confirm plumb, level, ballast, clearances, and attachment security before use.

Published Load and Stability Reference

Span Length Changes the Allowable Distributed Load.

10-Foot Spans

Published distributed-load reference: 190 lb per linear foot.

20-Foot Spans

Published distributed-load reference: 110 lb per linear foot.

Rear Scrim Ballast

Use 650 lb of ballast at each corner, or direct anchorage to a concrete slab, when a rear scrim is installed.

Engineering Review

A licensed structural engineer must review the final layout, loads, ballast, anchorage, graphics, and venue conditions.

Never apply the 10-foot span rating to a 20-foot span. Published capacity depends on span length, support positions, load placement, and the approved configuration.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290S-compatible components and connection hardware.

Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.

Do not apply loads directly at truss connections unless specifically allowed by the engineering data.

Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.

Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be configured in different layouts?

No. The EVT290S-Bigsur is designed to assemble in one specified 10x20 booth configuration.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT290S main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x20 truss exhibit?

Contact us for assembly support, graphics and lighting planning, additional EVT290S components, engineering, CAD files, and quantity pricing.
