What is the main structural difference between the EVT290S-Borego and the EVT290S-Bigsur?

Both are 10x20 square truss booth systems built on the same EVT290S series components, but configured differently. The Borego is a 4-column island structure with a dual-bay overhead frame at 9.84 ft (3m) tall and 532 lb total weight. The Bigsur is a taller enclosed-style structure at 13.38 ft (4.07m) with 924 lb total weight and up to 4 reconfigurable layouts. Choose the Borego when ceiling clearance is limited or when a lower-profile open structure better fits the application.

Can the dual-bay overhead frame support independent displays in each bay simultaneously?

Yes. The dual-bay design creates two structurally independent overhead spans within the 10x20 footprint. Each bay can support its own screen, lighting rig, or canopy independently. Loads in each bay must stay within the EVT290S system's rated load limits and must not be combined into a single center point load that exceeds the rated capacity. A licensed structural engineer must review all loading configurations before use.

How should I inspect the booth components before each use?

Before each assembly, inspect all truss sections for cracks, bends, dents, or weld damage. Check all couplers, tapered pins, and R-clips for wear or deformation. Ensure all conical connections are fully seated and secured, and all M10 hex bolts are torqued to specification before loading the structure. Remove any damaged component from service immediately and mark it "DO NOT USE."

10x20 Trade Show Truss Booth – Square Aluminum Truss Display System (EVT290S-Borego)

EVT290S Dual-Bay Booth System Knowledge Center

Create Two Overhead Zones Inside One 10x20 Exhibit.
A Four-Column Island Structure with a Dual-Bay Square-Truss Frame.

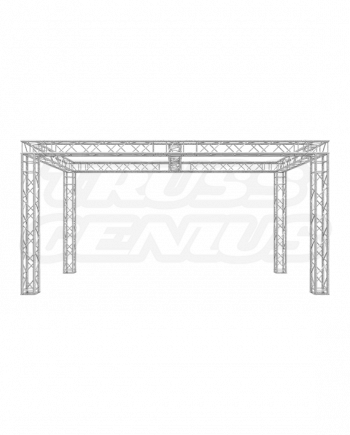

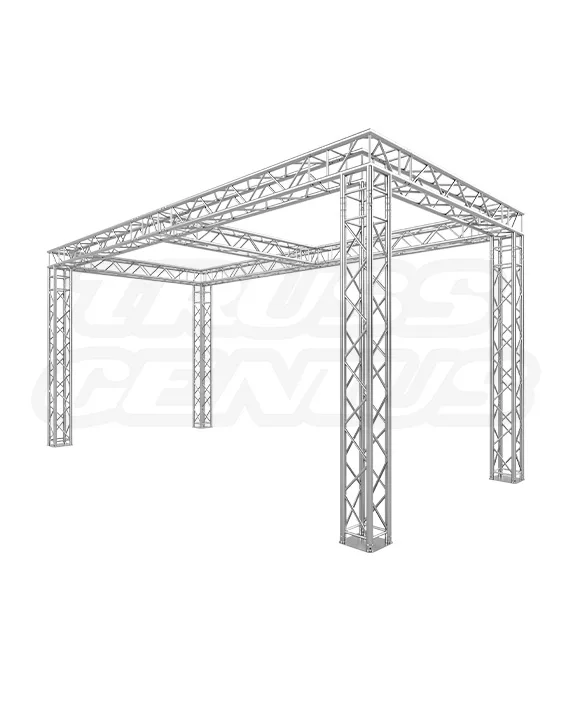

The EVT290S-Borego is a 10x20 square aluminum truss booth built around four vertical columns and a dual-bay overhead frame. The open island-style structure creates two distinct overhead spans for trade shows, exhibitions, virtual reality activations, lighting, signage, and branded environments.

System Facts

ModelEVT290S-Borego

SKUEVT290S-TSB-10x20-BOREGO

Footprint19.98x9.84 ft

Overall Height9.84 ft / 3 m

StructureDual-Bay Overhead Frame

System Weight532 lb / 241.31 kg

10x20 ftBooth Class

Dual-BayOverhead Design

532 lbSystem Weight

4Vertical Columns

ConicalConnection System

System Overview

Two Overhead Bays. One Open 10x20 Island Structure.

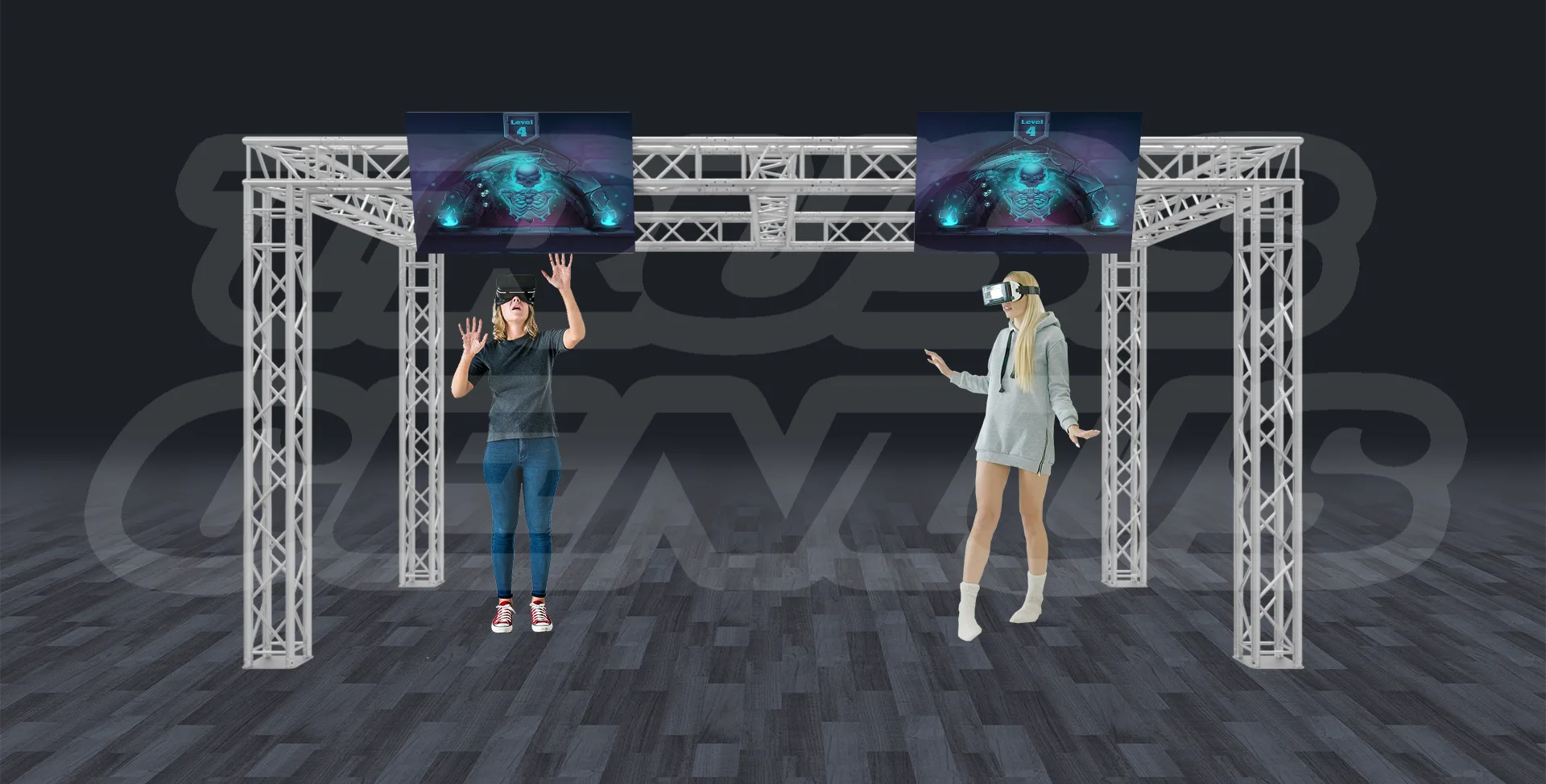

The EVT290S-Borego combines four vertical columns with a dual-bay overhead square-truss frame. The result is an open structure with approximately 200 sq ft of coverage and two distinct overhead zones for displays, lighting, scenic elements, or virtual reality applications.

Four-Column Island Frame

Four vertical supports create an open-sided exhibit structure with clear access around the perimeter.

Dual-Bay Overhead Design

Two overhead spans create separate structural zones within the 10x20 footprint.

Approximately 200 sq ft

The system covers roughly 200 square feet for exhibits, activations, displays, and immersive environments.

EVT290S Square Truss

Uses 290 mm square truss with 50 mm main chords and 20 mm diagonal bracing.

Common Applications

Designed for Trade Shows and Branded Environments.

Trade Show Exhibits

Create a branded overhead structure for 10x20 exhibit spaces.

Product Displays

Frame product demonstrations, shelving, graphics, and display counters.

Branded Activations

Support banners, signage, lighting, and branded visual elements.

Temporary Retail

Build pop-up and promotional environments with reusable truss components.

Corporate Events

Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x20 Display System.

Exhibit Builders

For modular client booths and repeat trade-show installations.

Marketing Agencies

For branded activations, launches, and promotional environments.

Event Production Companies

For corporate displays, sponsor areas, and temporary event structures.

Rental Companies

For repeat-use 10x20 booth inventory that can be deployed across multiple events.

Retail Brands

For pop-up shops, product showcases, and temporary branded spaces.

In-House Exhibit Teams

For companies attending multiple events with reusable components.

System Design

Four Columns. One Specified Dual-Bay Booth Configuration.

The EVT290S-Borego component set is designed to assemble as the documented four-column island structure with a dual-bay overhead frame. Different dimensions or alternate layouts require separately selected EVT290S components and a revised system plan.

Specified Borego Layout

The included components build the complete 10x20 dual-bay booth shown for this system.

Two Overhead Spans

The frame creates two distinct bays that can support separate display concepts subject to engineering review.

Open Island Access

The four-column arrangement preserves open access and visibility around the structure.

Optional Expansion

Larger footprints or modified layouts require additional EVT290S components and new engineering documentation.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290S-Borego

SKUEVT290S-TSB-10x20-BOREGO

BrandEvolve Truss

System Type10x20 Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint19.98x9.84 ft / 6x3 m

Structure4-Column Island with Dual-Bay Overhead Frame

CoverageApproximately 200 sq ft

Overall Width118.08 in / 3 m

Overall Depth239.76 in / 6 m

Overall Height118.08 in / 9.84 ft / 3 m

System Weight532 lb / 241.31 kg

Truss Construction

EVT290S System

Truss ProfileEVT290S 290 mm / 11.41 in Square

Main Chords50 mm / 1.96 in OD, 2 mm Wall

Brace Tubing20 mm / 0.78 in Diagonal, 2 mm Wall

MaterialEN AW-6082 T6 Aluminum

FinishBrushed Aluminum

CertificationTUV Specifications

Assembly and Compatibility

System Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly Crew3 to 4 People

Assembly ToolsSteel Hammer and M10 Hex Allen Wrench

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The EVT290S-Borego uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Verify receiver spacing, coupler dimensions, and engineering data before combining components.

EVT290S Compatibility

Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.

F34 Compatibility

Compatible with matching F34 290 mm square truss geometry and conical hardware.

Standard 290 mm Systems

Verify connection geometry and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components

Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.

02 — Build the Overhead Crown

Assemble the upper 10x20 rectangular structure at floor level.

03 — Install Base Components

Position and secure the bases according to the specified 10x20 booth layout.

04 — Add Vertical Sections

Raise the crown in a controlled sequence and install the vertical supports.

05 — Lock Every Connection

Verify all couplers, tapered pins, and R-clips are fully seated.

06 — Final Inspection

Confirm plumb, level, ballast, clearances, and attachment security before use.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290S-compatible components and connection hardware.

Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.

Do not apply loads directly at truss connections unless specifically allowed by the engineering data.

Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.

Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be configured in different layouts?

No. The EVT290S-Borego is designed to assemble in one specified 10x20 booth configuration.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT290S main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x20 truss exhibit?

Contact us for assembly support, graphics and lighting planning, additional EVT290S components, engineering, CAD files, and quantity pricing.
