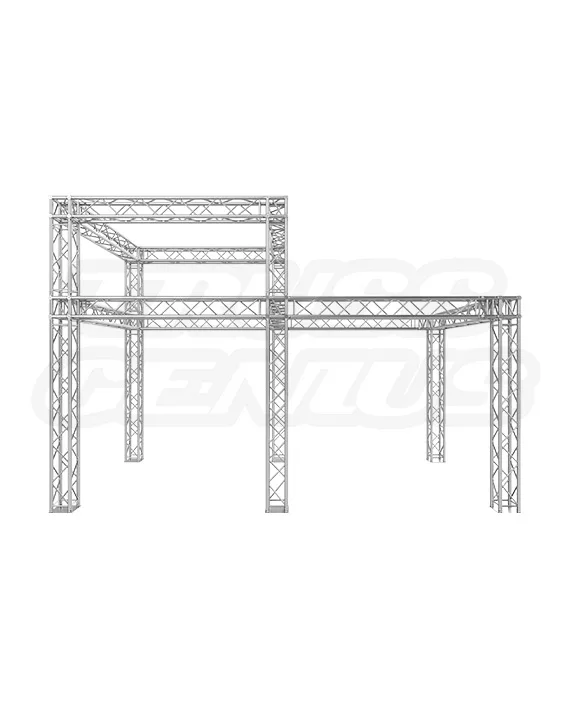

10x20 Trade Show Exhibit Display Booth EVT290S-Button - Front View
Front view of 10x20 Trade Show Exhibit Display Booth EVT290S-Button, featuring durable aluminum truss components for exhibitions.
10x20 Trade Show Exhibit Display Booth EVT290S-Button - Front View
Front view of 10x20 Trade Show Exhibit Display Booth EVT290S-Button, featuring durable aluminum truss components for exhibitions.

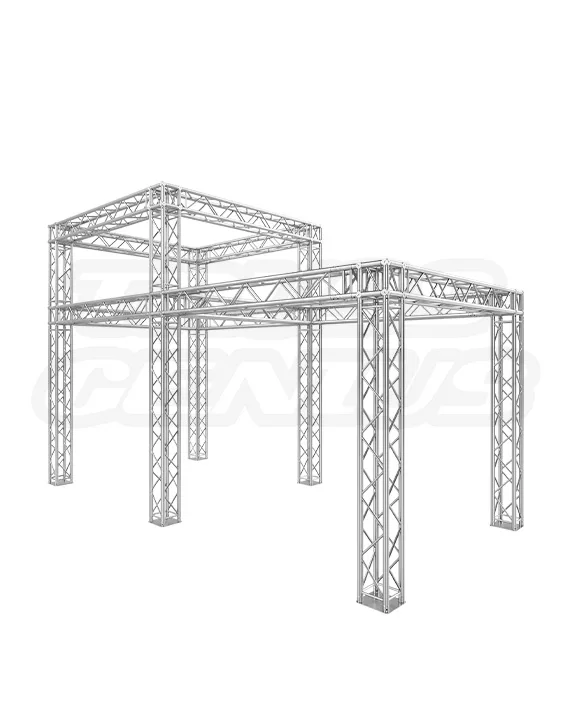

10x20 Trade Show Exhibit Display Booth | EVT290S-Button

Original price was: $45,926.00.Current price is: $22,963.00.

Medium-Duty Square Aluminum Truss Booth

Truss System Dimensions
Overall Truss System Height: 13.38 ft (4.07 m)
Overall Truss System Width: 9.84 ft (3 m)
Overall Truss System Length: 19.98 ft (6 m)
Approximate Coverage: 200 sq ft

Truss Dimensions
Overall Truss Width: 11.41 in (290 mm)
Main Tubing: 1.96 in (50 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness

Construction & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 924 lb (419.11 kg)

In stock

SKU: EVT290S-TSB-10x20-BUTTON Categories: ,

EVT290S Two-Level Booth System Knowledge Center

Build More Visual Impact into the Same 10x20 Footprint.
A 13.38-Foot Two-Level Truss Structure Designed to Stand Above the Show Floor.

The EVT290S-Button is a 10x20 two-level square aluminum truss booth built from EVT290S 290 mm truss. Its 13.38 ft overall height creates a taller architectural presence for trade shows, virtual reality activations, exhibitions, lighting, signage, and branded event environments.

System Facts

ModelEVT290S-Button
SKUEVT290S-TSB-10x20-BUTTON
Footprint19.98x9.84 ft
Overall Height13.38 ft / 4.07 m
DesignTwo-Level Structure
System Weight924 lb / 419.11 kg
10x20 ftBooth Footprint
13.38 ftOverall Height
924 lbSystem Weight
4–6Recommended Crew
ConicalConnection System

System Overview

A Taller Exhibit Profile. Designed Around a Two-Level Truss Structure.

The EVT290S-Button combines a 19.98x9.84 ft footprint with a 13.38 ft overall height and approximately 200 sq ft of coverage. Its two-level design creates additional vertical presence for exhibits that need to stand out across a busy show floor.

Two-Level Design
The taller structural layout creates a stronger architectural statement than a standard single-height booth.
13.38-Foot Height
The elevated profile provides additional visual clearance for lighting, signage, graphics, and branded elements.
Approximately 200 sq ft
The system covers roughly 200 square feet for trade shows, exhibitions, virtual reality, and event environments.
EVT290S Square Truss
Uses medium-duty 290 mm square truss with 50 mm main chords and 20 mm diagonal bracing.

Common Applications

Designed for Trade Shows and Branded Environments.

01
Trade Show Exhibits
Create a branded overhead structure for 10x20 exhibit spaces.
02
Product Displays
Frame product demonstrations, shelving, graphics, and display counters.
03
Branded Activations
Support banners, signage, lighting, and branded visual elements.
04
Temporary Retail
Build pop-up and promotional environments with reusable truss components.
05
Corporate Events
Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x20 Display System.

Exhibit Builders
For modular client booths and repeat trade-show installations.
Marketing Agencies
For branded activations, launches, and promotional environments.
Event Production Companies
For corporate displays, sponsor areas, and temporary event structures.
Rental Companies
For repeat-use 10x20 booth inventory that can be deployed across multiple events.
Retail Brands
For pop-up shops, product showcases, and temporary branded spaces.
In-House Exhibit Teams
For companies attending multiple events with reusable components.

System Design

One Two-Level Component Set. Suitable for Small-Island or Inline Booth Use.

The EVT290S-Button is described for small-island or inline booth use. The final arrangement must follow the supplied technical drawing and receive structural review for the venue, loads, graphics, lighting, and access requirements.

Two-Level Structure
The included component set creates the documented taller Button booth design.
Inline Booth Use
The system may be used for an inline booth when the final arrangement complies with venue height and access rules.
Small-Island Booth Use
The structure may also be used as a small-island booth when reviewed for open-side access and venue conditions.
Future Expansion
Additional EVT290S pieces may be selected separately to create a larger engineered structure.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290S-Button
SKUEVT290S-TSB-10x20-BUTTON
BrandEvolve Truss
System Type10x20 Two-Level Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint19.98x9.84 ft / 6x3 m
DesignTwo-Level Structure
CoverageApproximately 200 sq ft
Structure4-Column Island with Two-Level Truss Structure
CoverageApproximately 200 sq ft
Overall Width9.84 ft / 3 m
Overall Depth19.98 ft / 6 m
Overall Height13.38 ft / 4.07 m
System Weight924 lb / 419.11 kg

Truss Construction

EVT290S System

Truss ProfileEVT290S 290 mm / 11.41 in Square
Main Chords50 mm / 1.96 in OD, 2 mm Wall
Brace Tubing20 mm / 0.78 in Diagonal, 2 mm Wall
MaterialEN AW-6082 T6 Aluminum
FinishBrushed Aluminum
CertificationTUV Specifications

Installation Planning

Assembly Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips
Assembly ToolsSteel Hammer and M10 Hex Allen Wrench
Assembly Crew4 to 6 People and/or a Qualified Rigging Crew as Required
Access and Rigging EquipmentPersonnel Lifts and/or Rigging Equipment Appropriate for the Final Assembly Method

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The EVT290S-Button uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.
F34 Compatibility
Compatible with matching F34 290 mm square truss geometry and conical hardware.
Standard 290 mm Square Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
50 mm Clamp Compatibility
Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components
Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.
02 — Build the Overhead Crown
Assemble the upper 10x20 rectangular structure at floor level.
03 — Install Base Components
Position and secure the bases according to the specified 10x20 booth layout.
04 — Add Vertical Sections
Raise the crown in a controlled sequence and install the vertical supports.
05 — Lock Every Connection
Verify all couplers, tapered pins, and R-clips are fully seated.
06 — Final Inspection
Confirm plumb, level, ballast, clearances, and attachment security before use.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290S-compatible components and connection hardware.
Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.
Do not apply loads directly at truss connections unless specifically allowed by the engineering data.
Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.
Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.
Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be configured in different layouts?

No. The EVT290S-Button is designed to assemble in one specified 10x20 booth configuration.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT290S main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x20 truss exhibit?

Contact us for assembly support, graphics and lighting planning, additional EVT290S components, engineering, CAD files, and quantity pricing.
