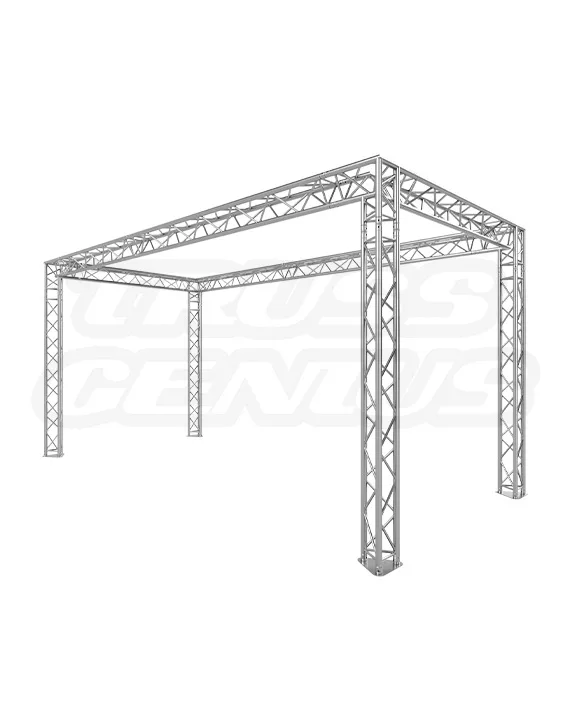

10x20 Trade Show Exhibit Display Booth | EVT290T-Bishop

Original price was: $11,836.00.Current price is: $5,918.00.

10' x 20' Modular Triangular Trade Show Truss Booth

Create up to 2 (two) different booth configurations.

Truss System Dimensions
Overall System Height: 9.84 ft (3 m)
Overall System Width: 9.84 ft (3 m)
Overall System Length: 19.68 ft (6 m)
Approximate Coverage: 200 sq ft

Truss Dimensions
Overall Truss Width: 11.41 in (290 mm)
Main Tubing: 1.96 in (50 mm) Outer Diameter with 0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing with 0.078 in (2 mm) Wall Thickness

Construction & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Included: Connecting hardware
Weight: 354 lb (160.57 kg)

In stock

SKU: EVT290T-TSB-10x20-BISHOP Category: 10x20 Trade Show Booths

Product Details & Resources

EVT290T Triangular Booth System Knowledge Center

Give a 20-Foot Exhibit More Structure Without Closing It In.
A Medium-Duty Triangular Truss Booth with Two Supported Layouts and Open Sightlines.

The EVT290T-Bishop is a complete 10x20 triangular aluminum truss trade show booth built from EVT290T 290 mm truss. It supports up to two documented configurations, including inline and smaller island-style layouts, and is designed for a typical 3-to-4-person assembly crew.

System Facts

ModelEVT290T-Bishop

SKUEVT290T-TSB-10x20-BISHOP

Booth Footprint9.84x19.69 ft

Overall Height9.84 ft / 3 m

Supported LayoutsUp to 2 Designs

System Weight354 lb / 160.57 kg

10x20 ftPrimary Footprint

290 mmTriangular Profile

354 lbSystem Weight

3–4Recommended Crew

ConicalConnection System

System Overview

A 20-Foot Exhibit Structure with an Open Triangular Profile Built for Inline Displays, Small Island Layouts, Lighting, and Signage.

The EVT290T-Bishop combines a 9.84x19.69 ft footprint, 9.84 ft overall height, medium-duty triangular geometry, and two supported booth configurations.

10x20 Booth Footprint

Provides a large branded display area for inline or island-style configurations.

Two Supported Layouts

The included component set supports the documented 10x20 inline layout and smaller island-style configuration.

Medium-Duty EVT290T Truss

Uses 290 mm triangular truss with 50 mm main chords for a stronger open-frame exhibit structure.

Reusable Booth System

The booth can be transported, disassembled, and rebuilt in the same 10x20 configuration for future events.

Common Applications

Designed for Trade Shows and Branded Environments.

Trade Show Exhibits

Create a branded overhead structure for 10x20 exhibit spaces.

Product Displays

Frame product demonstrations, shelving, graphics, and display counters.

Branded Activations

Support banners, signage, lighting, and branded visual elements.

Temporary Retail

Build pop-up and promotional environments with reusable truss components.

Corporate Events

Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x20 Display System.

Exhibit Builders

For modular client booths and repeat trade-show installations.

Marketing Agencies

For branded activations, launches, and promotional environments.

Event Production Companies

For corporate displays, sponsor areas, and temporary event structures.

Rental Companies

For repeat-use 10x20 booth inventory that can be deployed across multiple events.

Retail Brands

For pop-up shops, product showcases, and temporary branded spaces.

In-House Exhibit Teams

For companies attending multiple events with reusable components.

Configuration Options

One Component Set. Up to Two Supported Booth Designs.

The EVT290T-Bishop supports the primary 10x20 inline layout and a smaller island-style configuration. Use only the documented arrangements and confirm that the final layout is acceptable for the venue, graphics, lighting, and loads.

10x20 Inline Layout

Uses the complete component set to create the full 9.84x19.69 ft exhibit footprint.

Smaller Island Layout

Reconfigures the included components into the supported compact island-style booth design.

Reusable System

The booth can be disassembled, transported, and rebuilt for future events.

Future Expansion

Additional EVT290T sections may be selected separately for larger configurations.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290T-Bishop

SKUEVT290T-TSB-10x20-BISHOP

BrandEvolve Truss

System Type10x20 Light-Duty Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint9.84x19.69 ft / 3x6 m

Overall Width118.11 in / 3 m

Overall Depth118.11 in / 3 m

Overall Height9.84 ft / 3 m / 118.08 in

System Weight354 lb / 160.57 kg

Truss Construction

EVT290T System

Truss ProfileEVT290T 290 mm / 11.41 in Triangular

Main Chords50 mm / 1.96 in OD, 2 mm Wall

Brace Tubing20 mm / 0.78 in, 2 mm Wall

MaterialEN AW-6082 T6 Aluminum

FinishBrushed Aluminum

CertificationTUV Specifications

Assembly and Compatibility

System Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly Crew3 to 4 People

Assembly ToolSmall Hammer

Minimum Crew2 to 3 People Recommended

System Compatibility

EVT290T, F33, and Standard 290 mm Triangular Truss Systems.

The EVT290T-Bishop uses 290 mm triangular truss geometry, 50 mm main chords, and a matching conical connection system. Verify receiver spacing, coupler dimensions, and engineering data before combining components.

EVT290T Compatibility

Integrates with compatible EVT290T straight sections, corners, and expansion components.

F33 Compatibility

Compatible with matching F33 290 mm triangular truss geometry and conical hardware.

Standard 290 mm Systems

Verify connection geometry and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components

Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.

02 — Build the Overhead Crown

Assemble the upper 10x20 rectangular structure at floor level.

03 — Install Base Components

Position and secure the bases according to the specified 10x20 booth layout.

04 — Add Vertical Sections

Raise the crown in a controlled sequence and install the vertical supports.

05 — Lock Every Connection

Verify all couplers, tapered pins, and R-clips are fully seated.

06 — Final Inspection

Confirm plumb, level, ballast, clearances, and attachment security before use.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290T-compatible components and connection hardware.

Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.

Do not apply loads directly at truss connections unless specifically allowed by the engineering data.

Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.

Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be configured in different layouts?

No. The EVT290T-Bishop is designed to assemble in one specified 10x20 booth configuration.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT290T main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x20 truss exhibit?

Contact us for assembly support, graphics and lighting planning, additional EVT290T components, engineering, CAD files, and quantity pricing.
