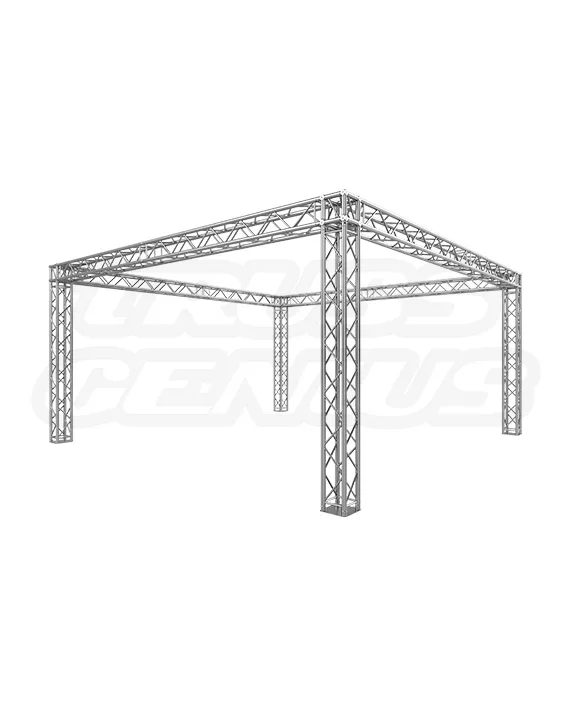

EVT290S-Carson 20x20 medium-duty square aluminum truss system configured as a trade show exhibit display booth in brushed aluminum finish

Trade Show Exhibit Display Booth 20x20 F34-301

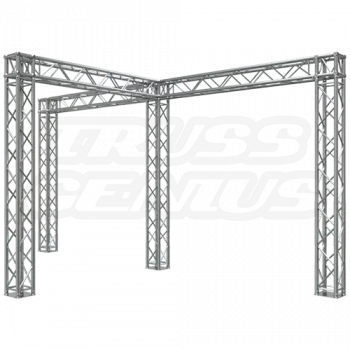

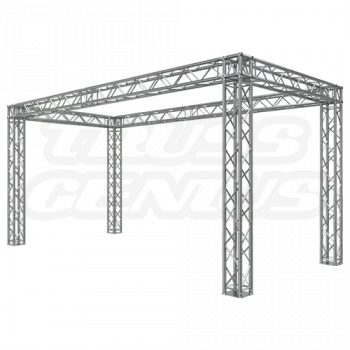

Trade Show Exhibit Display Booth 10x20 F34-201

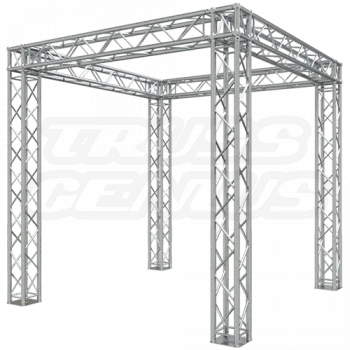

10x10 Trade Show Booth Designs and Displays | Truss Genius

20x20 Trade Show Exhibit Display Booth | EVT290S-Carson

Original price was: $19,704.00.Current price is: $9,852.00.

Medium-Duty Square Aluminum Truss Booth – Motion Capture
Create up to 4 (four) different booth configurations

Truss System Dimensions
Overall Truss System Height: 9.97 ft (3 m)
Overall Truss System Width: 19.68 ft (6 m)
Overall Truss System Length: 19.68 ft (6 m)
Approximate Coverage: 400 sq ft

Truss Dimensions
Overall Truss Width: 11.41 in (290 mm)
Main Tubing: 1.96 in (50 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness

Construction & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 530 lb (240.40 kg)

In stock

SKU: EVT290S-TSB-20x20-CARSON Category: 20x20 Trade Show Booths

Product Details & Resources

EVT290S Booth and Motion Capture System Knowledge Center

A Reconfigurable 20x20 Truss System.
Built for Exhibits, Motion Capture, and Large-Format Installations.

The EVT290S-Carson is a complete 20x20 medium-duty square aluminum truss system that can be reconfigured into four structural layouts. It serves trade show exhibitors, motion capture studios, live event production teams, and research facilities that need a rigid, repeatable overhead structure for approved lighting, signage, cameras, monitors, and branded display elements.

System Facts

ModelEVT290S-Carson

System Type20x20 Reconfigurable Truss System

Coverage400 sq ft

Overhead Height9.97 ft / 3 m

Configurations4 Structural Layouts

System Weight530 lb / 240.40 kg

20x20 ftSystem Footprint

400 sq ftCoverage

4 LayoutsConfigurations

530 lbSystem Weight

3–4 PeopleAssembly Crew

System Overview

A 20x20 Structural Platform with a Central Structural Focal Point.

The EVT290S-Carson combines a compact 20x20 footprint, 3 m height, 290 mm square truss, and a cross-braced roof centered on a four-way block.

20x20 Exhibit Footprint

Creates a 19.68 x 19.68 ft island exhibit with approximately 400 sq ft of coverage.

Reconfigurable Overhead Grid Roof

Creates added visual interest and central mounting opportunities for lighting, signage, or audio.

EVT290S Construction

Uses 290 mm square aluminum truss with 50 mm main chords and 20 mm braces.

Complete Modular System

Includes the required truss components and conical connecting hardware.

Common Applications

Designed for Branding, Lighting, and Product Presentation.

Trade Show Island Booths

Create a high-visibility 10x10 booth with overhead structure.

Product Displays

Frame products, demos, counters, shelving, and interactive displays.

Lighting Displays

Use the roof and center block for approved lighting positions.

Branded Activations

Support signage, graphics, banners, and promotional content.

Corporate Events

Create sponsor, hospitality, registration, or marketing spaces.

Who It’s For

Built for Teams That Need A Reusable Professional Booth.

Exhibit Builders

For repeatable 10x10 client installations.

Marketing Agencies

For branded launches, activations, and convention displays.

Rental Companies

For modular exhibit inventory that can be reused and expanded.

Event Producers

For sponsor booths, demos, and temporary branded spaces.

Retail Brands

For pop-ups, product showcases, and temporary retail environments.

In-House Exhibit Teams

For companies attending multiple shows with one reusable system.

System Features

Strong Visual Geometry. Professional Modular Construction.

Central Four-Way Block

Connects the roof crossover at the center of the booth.

Cross-Braced Roof

Adds visual structure and central mounting locations.

Standard 50 mm Chords

Accepts standard 50 mm / 2-inch clamps.

Conical Connections

Uses couplers, tapered pins, and R-clips for repeat assembly.

Brushed Aluminum Finish

Provides a clean professional appearance for trade-show environments.

Expandable EVT290S Platform

Additional EVT290S components can be added for custom layouts.

Included Components

Complete Island Booth Structure with Conical Hardware.

The system includes the truss sections, corners, center block, support components, and all couplers, tapered pins, and R-clips required for the shown configuration.

EVT290S Straight Sections

290 mm square truss components for the legs, perimeter, and crossover.

Corners and Junctions

Required geometry for the booth crown and vertical supports.

Four-Way Center Block

Central junction for the reconfigurable overhead grid roof design.

Conical Hardware

All couplers, tapered pins, and R-clips are included.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290S-Carson

SKUEVT290S-TSB-20x20-CARSON

BrandEvolve Truss

System Type10x10 Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

System Footprint20x20 ft / 6 x 6 m

Overall Width236.16 in

Overall Depth236.16 in

Overhead Height9.97 ft / 3 m

System Weight530 lb / 240.40 kg

Truss Construction

EVT290S System

Truss Profile290 mm / 11.41 in Square

Main Tubing50 mm / 1.96 in OD, 2 mm Wall

Brace Tubing20 mm / 0.78 in, 2 mm Wall

MaterialEN AW-6082 T6 Aluminum

FinishBrushed Aluminum

Assembly and Compatibility

System Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly ToolSmall Hammer

Clamp CompatibilityStandard 50 mm / 2-Inch Clamps

Assembly Crew3 to 4 People

Assembly ToolsSteel Hammer and M10 Hex Allen Wrench

Configuration Options4 Distinct Structural Layouts

Truss CompatibilityEVT290S, F34 and Standard 290 mm Square Truss Systems

CertificationTUV Specifications

Warranty1-Year Limited Warranty

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The Avalon booth is built from EVT290S and may be expanded with matching standard 290 mm square truss components.

EVT290S Compatibility

Direct fit within the EVT290S square truss family.

F34 Compatibility

Compatible with matching F34-style 290 mm square truss geometry.

Standard 290 mm Systems

Can be expanded with compatible standard 290 mm square truss components.

50 mm Clamp Compatibility

Uses standard 50 mm / 2-inch clamps for compatible accessories.

Assembly Overview

Build the Crown and Reconfigurable Overhead Grid First. Then Add the Vertical Supports.

Assemble the perimeter crown, center block, and crossover sections at floor level before raising the structure and installing the vertical supports.

01 — Organize Components

Lay out straight sections, corners, center block, bases, couplers, pins, and R-clips.

02 — Build the Perimeter Crown

Connect the four upper sides into the square roof perimeter.

03 — Install the Reconfigurable Overhead Grid

Connect the crossover sections to the center four-way block and roof corners.

04 — Position Base Components

Place and secure the bases according to the approved layout.

05 — Add Vertical Supports

Raise the crown in a controlled sequence and connect the legs.

06 — Final Inspection

Verify every coupler, tapered pin, R-clip, base, ballast point, and attachment.

Safety and Engineering

Booth Loads and Overhead Attachments Must Be Evaluated as One System.

Final capacity depends on the booth configuration, lighting, signs, audio, monitors, graphics, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290S-compatible components and connection hardware.

Do not place loads directly at truss connections unless permitted by the applicable engineering data.

Evaluate all lighting, signs, audio equipment, monitors, graphics, and suspended elements before installation.

Use ballast or engineered anchorage appropriate to the actual configuration, loading, and venue conditions. Sandbags are recommended for added stability in high-traffic or outdoor environments.

Use approved secondary retention for suspended fixtures and accessories where required.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

What is the benefit of the reconfigurable overhead grid design?

The central cross-braced roof uses a four-way center block, creating a strong visual focal point and useful central mounting positions for approved lighting, signage, or audio equipment.

What is the booth footprint?

The structural footprint is 19.68 x 19.68 ft, or 6 x 6 m, providing approximately 400 sq ft of coverage.

What clamps fit the truss?

Standard 50 mm / 2-inch clamps fit the main chords.

What hardware is included?

All conical couplers, tapered pins, and R-clips required for the shown configuration are included.

Can the system be expanded?

Yes. It can be expanded with additional EVT290S and compatible standard 290 mm square truss components.

Are CAD files available?

STEP and DWG files are available upon request.

Need a 20x20 system for a show, studio, or activation?

Contact us for booth layout support, lighting and signage planning, additional EVT290S components, CAD files, engineering coordination, and quantity pricing.
