Name: 20x20 Trade Show Exhibit Display Booth | EVT290S-Calexo
Brand: Evolve Truss
SKU: EVT290S-TSB-20x20-CALEXO
Price: 19723.00 USD
Availability: InStock

EVT290S Booth System Knowledge Center

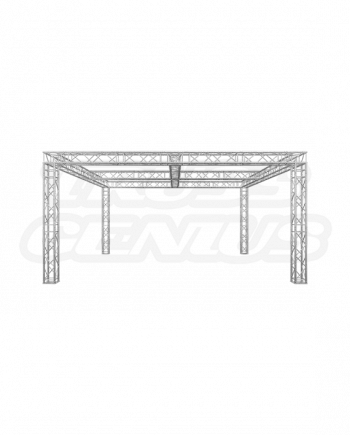

A Complete 20x20 Truss Exhibit.
Built with Center Cross Beams.

The EVT290S-Calexo is a sleek and sturdy 20x20 square aluminum truss booth designed with center cross beams for branding, lighting, signage, and decorative elements. Built from EVT290S 290 mm square truss, the system can be configured as an island or inline booth and is typically assembled by a crew of three to four people.

System Facts

ModelEVT290S-Calexo

SKUEVT290S-TSB-20x20-CALEXO

Booth Footprint19.68x19.68 ft

Overall Height9.84 ft / 3 m

Truss SeriesEVT290S

System Weight832 lb / 377.38 kg

20x20 ftBooth Footprint

400 sq ftApproximate Coverage

290 mmSquare Truss

832 lbSystem Weight

3–4 PeopleTypical Assembly Crew

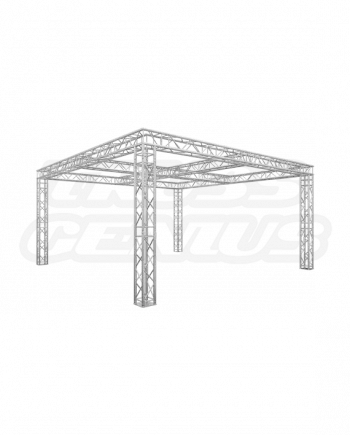

System Overview

A Professional 20x20 Exhibit with a Central Structural Focal Point.

The EVT290S-Calexo combines a compact 20x20 footprint, 3 m height, 290 mm square truss, and a cross-braced roof centered on a four-way block.

20x20 Exhibit Footprint

Creates a 19.68x19.68 ft island exhibit with approximately 400 sq ft of coverage.

Center Cross-Beam Roof

Creates added visual interest and central mounting opportunities for lighting, signage, or audio.

EVT290S Construction

Uses 290 mm square aluminum truss with 50 mm main chords and 20 mm braces.

Complete Modular System

Includes the required truss components and conical connecting hardware.

Common Applications

Designed for Branding, Lighting, and Product Presentation.

Trade Show Exhibits

Create a high-visibility 10x10 booth with overhead structure.

Product Displays

Frame products, demos, counters, shelving, and interactive displays.

Lighting Displays

Use the roof and center block for approved lighting positions.

Branded Activations

Support signage, graphics, banners, and promotional content.

Corporate Events

Create sponsor, hospitality, registration, or marketing spaces.

Who It’s For

Built for Teams That Need A Reusable Professional Booth.

Exhibit Builders

For repeatable 10x10 client installations.

Marketing Agencies

For branded launches, activations, and convention displays.

Rental Companies

For modular exhibit inventory that can be reused and expanded.

Event Producers

For sponsor booths, demos, and temporary branded spaces.

Retail Brands

For pop-ups, product showcases, and temporary retail environments.

In-House Exhibit Teams

For companies attending multiple shows with one reusable system.

System Features

Strong Visual Geometry. Professional Modular Construction.

Central Four-Way Block

Connects the roof crossover at the center of the booth.

Cross-Braced Roof

Adds visual structure and central mounting locations.

Standard 50 mm Chords

Accepts standard 50 mm / 2-inch clamps.

Conical Connections

Uses couplers, tapered pins, and R-clips for repeat assembly.

Brushed Aluminum Finish

Provides a clean professional appearance for trade-show environments.

Expandable EVT290S Platform

Additional EVT290S components can be added for custom layouts.

Included Components

Complete Island Booth Structure with Conical Hardware.

The system includes the truss sections, corners, center block, support components, and all couplers, tapered pins, and R-clips required for the shown configuration.

EVT290S Straight Sections

290 mm square truss components for the legs, perimeter, and crossover.

Corners and Junctions

Required geometry for the booth crown and vertical supports.

Four-Way Center Block

Central junction for the center cross-beam roof design.

Conical Hardware

All couplers, tapered pins, and R-clips are included.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290S-Calexo

SKUEVT290S-TSB-20x20-CALEXO

BrandEvolve Truss

System Type10x10 Square Aluminum Truss Booth

Dimensions and Weight

Overall Size

Booth Footprint19.68x19.68 ft / 6 x 6 m

Overall Width236.16 in

Overall Depth236.16 in

Overall Height9.84 ft / 3 m

System Weight832 lb / 377.38 kg

Truss Construction

EVT290S System

Truss Profile290 mm / 11.41 in Square

Main Tubing50 mm / 1.96 in OD, 2 mm Wall

Brace Tubing20 mm / 0.78 in, 2 mm Wall

MaterialEN AW-6082 T6 Aluminum

FinishBrushed Aluminum

Installation Planning

Assembly Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly ToolsSteel Hammer and M10 Hex Allen Wrench

Assembly Crew3 to 4 People and/or a Qualified Rigging Crew as Required

Access and Rigging EquipmentPersonnel Lifts and/or Rigging Equipment Appropriate for the Final Assembly Method

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The EVT290S-Calexo uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility

Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.

F34 Compatibility

Compatible with matching F34 290 mm square truss geometry and conical hardware.

Standard 290 mm Square Systems

Verify receiver spacing, connection geometry, and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown and Center Cross-Beam First. Then Add the Vertical Supports.

Assemble the perimeter crown, center block, and crossover sections at floor level before raising the structure and installing the vertical supports.

01 — Organize Components

Lay out straight sections, corners, center block, bases, couplers, pins, and R-clips.

02 — Build the Perimeter Crown

Connect the four upper sides into the square roof perimeter.

03 — Install the Center Cross-Beam

Connect the crossover sections to the center four-way block and roof corners.

04 — Position Base Components

Place and secure the bases according to the approved layout.

05 — Add Vertical Supports

Raise the crown in a controlled sequence and connect the legs.

06 — Final Inspection

Verify every coupler, tapered pin, R-clip, base, ballast point, and attachment.

Safety and Engineering

Booth Loads and Overhead Attachments Must Be Evaluated as One System.

Final capacity depends on the booth configuration, lighting, signs, audio, monitors, graphics, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290S-compatible components and connection hardware.

Do not place loads directly at truss connections unless permitted by the applicable engineering data.

Evaluate all lighting, signs, audio equipment, monitors, graphics, and suspended elements before installation.

Provide ballast or engineered anchorage suitable for the actual booth configuration, loads, and venue conditions.

Use approved secondary retention for suspended fixtures and accessories where required.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

What is the benefit of the center cross-beam design?

The central cross-braced roof uses a four-way center block, creating a strong visual focal point and useful central mounting positions for approved lighting, signage, or audio equipment.

What is the booth footprint?

The structural footprint is 19.68x19.68 ft, or 6 x 6 m, providing approximately 400 sq ft of coverage.

What clamps fit the truss?

Standard 50 mm / 2-inch clamps fit the main chords.

What hardware is included?

All conical couplers, tapered pins, and R-clips required for the shown configuration are included.

Can the system be expanded?

Yes. It can be expanded with additional EVT290S and compatible standard 290 mm square truss components.

Are CAD files available?

STEP and DWG files are available upon request.

Need a complete 20x20 center cross-beam exhibit?

Contact us for booth layout support, lighting and signage planning, additional EVT290S components, CAD files, engineering coordination, and quantity pricing.
