EVT290S Dual-Tier Circular Booth System Knowledge Center

Make the Center of the Show Floor Impossible to Miss.
A 14.23-Foot Dual-Tier Circular Truss Structure Built for a Major 20x20 Presence.

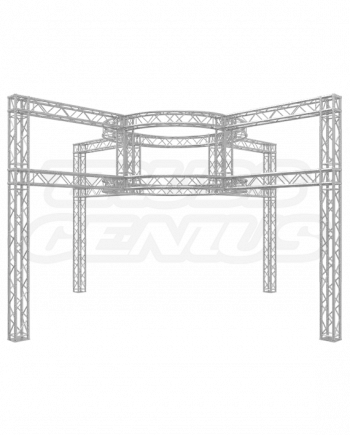

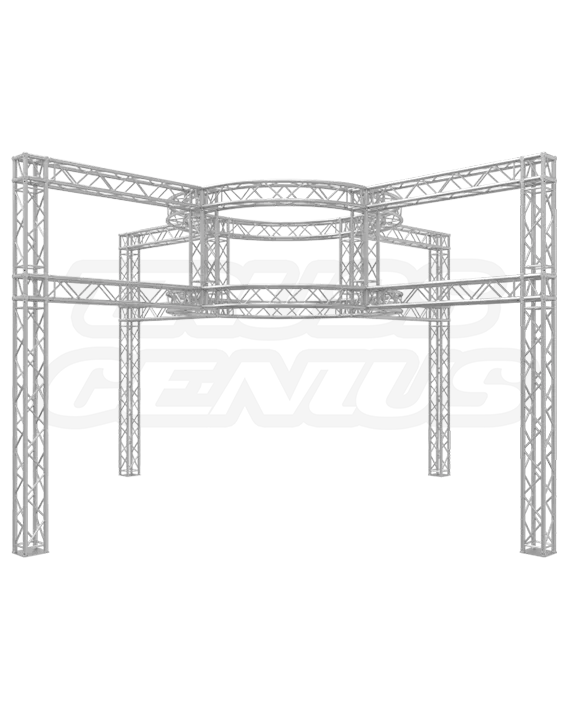

The EVT290S-Clovis is a medium-duty 20x20 square aluminum truss booth built around a dual-tier circular overhead design. Fabricated from EVT290S 290 mm truss, the system provides approximately 400 sq ft of coverage and may be used as an island or inline exhibit.

System Facts

ModelEVT290S-Clovis

SKUEVT290S-TSB-20x20-CLOVIS

System Dimensions19.68x19.68 ft

Overall Height14.23 ft / 4.33 m

DesignDual-Tier Circular

System Weight1120 lb / 508 kg

20x20 ftBooth Class

14.23 ftOverall Height

400 sq ftApprox. Coverage

3–4Typical Crew

Dual TierCircular Design

System Overview

Circular Geometry Above. A Full 20x20 Exhibit Below.

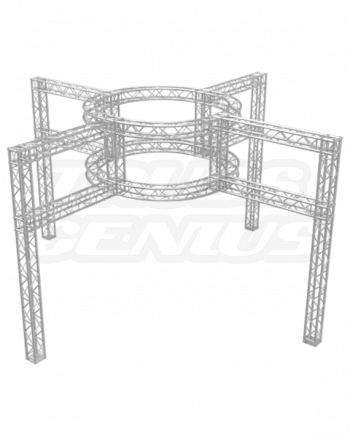

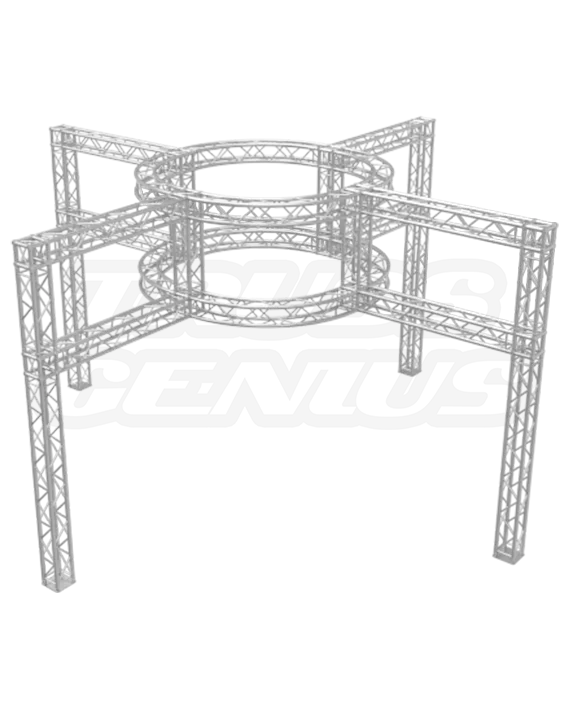

The EVT290S-Clovis combines a 19.68x19.68 ft footprint with a 14.23 ft overall height and approximately 400 sq ft of coverage. Its dual-tier circular structure creates a strong overhead focal point while preserving usable exhibit space and visitor circulation below.

Dual-Tier Circular Design

Layered circular truss creates a bold architectural centerpiece above the exhibit.

14.23-Foot Height

The elevated profile supports stronger long-distance visibility for signage, lighting, and branding.

Approximately 400 sq ft

The full-size footprint provides room for displays, demonstrations, lighting, and visitor circulation.

Island or Inline Use

The system may be used as an island or inline booth when the final installation follows venue requirements.

Common Applications

Designed for Trade Shows and Branded Environments.

Trade Show Exhibits

Create a branded overhead structure for 10x20 exhibit spaces.

Product Displays

Frame product demonstrations, shelving, graphics, and display counters.

Branded Activations

Support banners, signage, lighting, and branded visual elements.

Temporary Retail

Build pop-up and promotional environments with reusable truss components.

Corporate Events

Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x20 Display System.

Exhibit Builders

For modular client booths and repeat trade-show installations.

Marketing Agencies

For branded activations, launches, and promotional environments.

Event Production Companies

For corporate displays, sponsor areas, and temporary event structures.

Rental Companies

For repeat-use 10x20 booth inventory that can be deployed across multiple events.

Retail Brands

For pop-up shops, product showcases, and temporary branded spaces.

In-House Exhibit Teams

For companies attending multiple events with reusable components.

System Design

One Complete Clovis Structure. Built Around Its Documented Dual-Tier Circular Layout.

The supplied EVT290S-Clovis component set is intended to assemble as the documented dual-tier circular booth. Larger dimensions or alternate layouts require additional EVT290S components, a revised technical drawing, and licensed engineering review.

Specified 20x20 Layout

The included component set builds the complete Clovis booth shown for the system.

Dual Circular Tiers

Two circular overhead levels create a more dimensional and visible exhibit profile.

Included Technical Drawing

A detailed 3D drawing with dimensions and labeled parts is included for assembly reference.

Optional Expansion

Additional EVT290S components may be selected separately for a larger engineered structure.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290S-Clovis

SKUEVT290S-TSB-20x20-CLOVIS

BrandEvolve Truss

System Type20x20 Medium-Duty Square Aluminum Truss Booth - Dual-Tier Circular

Dimensions and Weight

Overall Size

Booth Footprint19.68x19.68 ft / 6x6 m

DesignDual-Tier Circular

CoverageApproximately 400 sq ft

Structure4-Column Island with 20x20 Dual-Tier Circular Structure

Overall Width19.68 ft / 6 m

Overall Depth19.68 ft / 6 m

Overall Height14.23 ft / 4.33 m

System Weight1120 lb / 508 kg

Truss Construction

EVT290S System

Truss ProfileEVT290S 290 mm / 11.41 in Square

Main Chords50 mm / 1.96 in OD, 2 mm Wall

Brace Tubing20 mm / 0.78 in Diagonal, 2 mm Wall

MaterialEN AW-6082 T6 Aluminum

FinishBrushed Aluminum

CertificationTUV Specifications

Installation Planning

Assembly Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips

Assembly ToolsSteel Hammer and M10 Hex Allen Wrench

Assembly Crew3 to 4 People and/or a Qualified Rigging Crew as Required

Access and Rigging EquipmentPersonnel Lifts and/or Rigging Equipment Appropriate for the Final Assembly Method

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The EVT290S-Clovis uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility

Integrates with compatible EVT290S straight sections, circular sections, junctions, and expansion components.

F34 Compatibility

Compatible with matching F34 290 mm square truss geometry and conical hardware.

Standard 290 mm Square Systems

Verify receiver spacing, connection geometry, and engineering data before combining systems.

50 mm Clamp Compatibility

Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components

Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.

02 — Build the Overhead Crown

Assemble the upper 10x20 rectangular structure at floor level.

03 — Install Base Components

Position and secure the bases according to the specified 10x20 booth layout.

04 — Add Vertical Sections

Raise the crown in a controlled sequence and install the vertical supports.

05 — Lock Every Connection

Verify all couplers, tapered pins, and R-clips are fully seated.

06 — Final Inspection

Confirm plumb, level, ballast, clearances, and attachment security before use.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290S-compatible components and connection hardware.

Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.

Do not apply loads directly at truss connections unless specifically allowed by the engineering data.

Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.

Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.

Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be configured in different layouts?

No. The EVT290S-Clovis is designed to assemble in one specified 10x20 booth configuration.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT290S main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x20 truss exhibit?

Contact us for assembly support, graphics and lighting planning, additional EVT290S components, engineering, CAD files, and quantity pricing.
