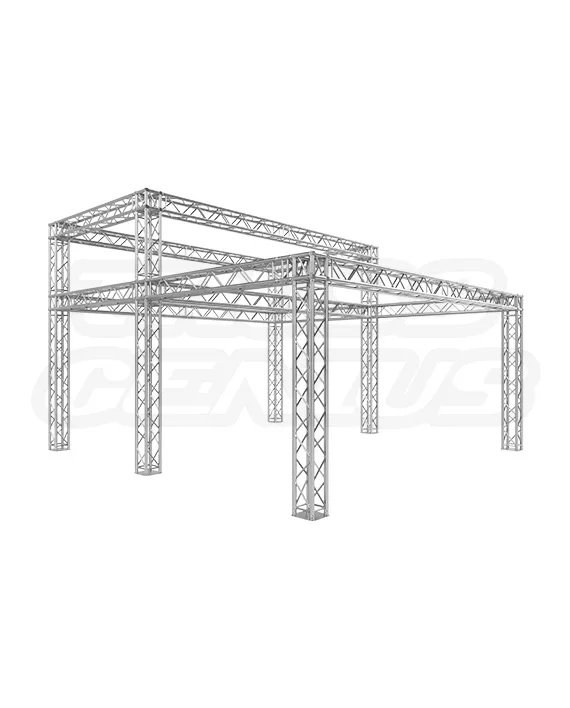

20x20 Trade Show Exhibit Display Booth EVT290S-Coulter, side view of robust aluminum truss structure for exhibitions
20x20 Trade Show Exhibit Display Booth EVT290S-Coulter - Front View, showcasing a robust aluminum truss structure ideal for trade shows and exhibitions.
20x20 Trade Show Exhibit Display Booth EVT290S-Coulter, side view of robust aluminum truss structure for exhibitions
20x20 Trade Show Exhibit Display Booth EVT290S-Coulter - Front View, showcasing a robust aluminum truss structure ideal for trade shows and exhibitions.

20x20 Trade Show Exhibit Display Booth | EVT290S-Coulter

Original price was: $42,540.00.Current price is: $21,270.00.

Medium-Duty Square Aluminum Truss Booth – Double Tier

Truss System Dimensions
Overall Truss System Height: 13.38 ft (4 m)
Overall Truss System Width: 19.94 ft (6 m)
Overall Truss System Length: 19.94 ft (6 m)
Approximate Coverage: 400 sq ft

Truss Dimensions
Overall Truss Width: 11.41 in (290 mm)
Main Tubing: 1.96 in (50 mm) Outer Diameter Tubing
0.078 in (2 mm) Wall Thickness
Brace Tubing: 0.78 in (20 mm) Diagonal Bracing
0.078 in (2 mm) Wall Thickness

Construction & Features
Material Type: Aluminum Alloy EN AW-6082 T6
Surface: Aluminum Brush Finish
Certification: TUV certified
Included: Connecting hardware
Weight: 1104 lb (500 kg)

In stock

SKU: EVT290S-TSB-20x20-COULTER Category:

EVT290S Double-Tier Booth System Knowledge Center

Extend the Exhibit Vertically and Horizontally.
A Towering 20x20 Double-Tier Truss Structure Built for Maximum Visibility.

The EVT290S-Coulter is a medium-duty 20x20 square aluminum truss booth with a double-tier structure that expands the display both vertically and horizontally. Built from EVT290S 290 mm truss, it provides approximately 400 sq ft of exhibit coverage for trade shows, exhibitions, lighting, signage, branded environments, and other professional event applications.

System Facts

ModelEVT290S-Coulter
SKUEVT290S-TSB-20x20-COULTER
System Dimensions19.94x19.94 ft
Overall Height13.38 ft / 4 m
DesignDouble Tier
System Weight1104 lb / 500 kg
20x20 ftBooth Class
13.38 ftOverall Height
400 sq ftApprox. Coverage
1104 lbSystem Weight
Double TierStructural Design

System Overview

A Full 20x20 Footprint. Layered into a Double-Tier Exhibit Structure.

The EVT290S-Coulter combines a 19.94x19.94 ft footprint with a 13.38 ft overall height and approximately 400 sq ft of coverage. Its double-tier configuration increases visual impact above and across the exhibit space.

Double-Tier Design
The layered truss arrangement extends the display vertically and horizontally for a stronger event presence.
13.38-Foot Height
The taller profile creates additional space for signage, lighting, graphics, and branded features.
Approximately 400 sq ft
The 20x20 footprint provides room for exhibits, demonstrations, lighting, and visitor circulation.
EVT290S Square Truss
Uses medium-duty 290 mm square truss with 50 mm main chords and 20 mm diagonal bracing.

Common Applications

Designed for Trade Shows and Branded Environments.

01
Trade Show Exhibits
Create a branded overhead structure for 10x20 exhibit spaces.
02
Product Displays
Frame product demonstrations, shelving, graphics, and display counters.
03
Branded Activations
Support banners, signage, lighting, and branded visual elements.
04
Temporary Retail
Build pop-up and promotional environments with reusable truss components.
05
Corporate Events
Create registration, sponsor, demonstration, or hospitality structures.

Who It’s For

Built for Teams That Need A Reusable 10x20 Display System.

Exhibit Builders
For modular client booths and repeat trade-show installations.
Marketing Agencies
For branded activations, launches, and promotional environments.
Event Production Companies
For corporate displays, sponsor areas, and temporary event structures.
Rental Companies
For repeat-use 10x20 booth inventory that can be deployed across multiple events.
Retail Brands
For pop-up shops, product showcases, and temporary branded spaces.
In-House Exhibit Teams
For companies attending multiple events with reusable components.

System Design

One Complete Coulter Structure. Built Around Its Documented Double-Tier Layout.

The supplied EVT290S-Coulter component set is intended to assemble as the documented 20x20 double-tier booth. Larger dimensions or alternate layouts require additional EVT290S components, a revised technical drawing, and licensed engineering review.

Specified 20x20 Layout
The included component set builds the complete Coulter booth shown for the system.
Double-Tier Framework
The upper and lower structural levels create a more commanding exhibit profile.
Included Technical Drawing
A detailed 3D drawing with dimensions and labeled parts is included for assembly reference.
Optional Expansion
Larger systems require additional EVT290S pieces and a new engineering review.

Technical Reference

Complete System Specifications

Identification

System Details

ModelEVT290S-Coulter
SKUEVT290S-TSB-20x20-COULTER
BrandEvolve Truss
System Type20x20 Medium-Duty Square Aluminum Truss Booth - Double Tier

Dimensions and Weight

Overall Size

Booth Footprint19.94x19.94 ft / 6x6 m
DesignDouble Tier
CoverageApproximately 400 sq ft
Structure4-Column Island with 20x20 Double-Tier Structure
CoverageApproximately 200 sq ft
Overall Width19.94 ft / 6 m
Overall Depth19.94 ft / 6 m
Overall Height13.38 ft / 4 m
System Weight1104 lb / 500 kg

Truss Construction

EVT290S System

Truss ProfileEVT290S 290 mm / 11.41 in Square
Main Chords50 mm / 1.96 in OD, 2 mm Wall
Brace Tubing20 mm / 0.78 in Diagonal, 2 mm Wall
MaterialEN AW-6082 T6 Aluminum
FinishBrushed Aluminum
CertificationTUV Specifications

Installation Planning

Assembly Requirements

Connection TypeConical Couplers, Tapered Pins and R-Clips
Assembly ToolsSteel Hammer and M10 Hex Allen Wrench
Assembly Crew3 to 4 People and/or a Qualified Rigging Crew as Required
Access and Rigging EquipmentPersonnel Lifts and/or Rigging Equipment Appropriate for the Final Assembly Method

System Compatibility

EVT290S, F34, and Standard 290 mm Square Truss Systems.

The EVT290S-Coulter uses 290 mm square truss geometry, 50 mm main chords, and a matching conical connection system. Compatibility requires matching receiver spacing, coupler dimensions, and engineering data.

EVT290S Compatibility
Integrates with compatible EVT290S straight sections, corners, junctions, and expansion components.
F34 Compatibility
Compatible with matching F34 290 mm square truss geometry and conical hardware.
Standard 290 mm Square Systems
Verify receiver spacing, connection geometry, and engineering data before combining systems.
50 mm Clamp Compatibility
Main chords accept properly rated standard 50 mm / 2 in clamps.

Assembly Overview

Build the Crown First. Then Add the Vertical Supports.

The system is typically assembled by three to four people using a steel hammer for the tapered-pin conical connections.

01 — Organize Components
Lay out straight sections, corners, bases, couplers, pins, and R-clips by position.
02 — Build the Overhead Crown
Assemble the upper 10x20 rectangular structure at floor level.
03 — Install Base Components
Position and secure the bases according to the specified 10x20 booth layout.
04 — Add Vertical Sections
Raise the crown in a controlled sequence and install the vertical supports.
05 — Lock Every Connection
Verify all couplers, tapered pins, and R-clips are fully seated.
06 — Final Inspection
Confirm plumb, level, ballast, clearances, and attachment security before use.

Safety and Engineering

Exhibit Loads, Ballast, and Overhead Elements Must Be Evaluated as One System.

Final capacity depends on the booth configuration, attached signs, lighting, graphics, monitors, rigging points, ballast, floor conditions, and venue requirements.

Use only complete, undamaged EVT290S-compatible components and connection hardware.
Use 35 mm clamps only; standard 50 mm clamps will not fit the main chords.
Do not apply loads directly at truss connections unless specifically allowed by the engineering data.
Evaluate all graphics, monitors, lighting, shelving, and suspended elements before installation.
Provide ballast or anchoring suitable for the actual booth configuration and venue conditions.
Assembly should be performed by trained personnel following an approved installation plan.

System Questions

Frequently Asked Questions

How many people are needed for assembly?

The listed assembly crew is three to four people.

What tool is required?

A steel hammer is used to seat and remove the tapered pins in the conical connection system.

Can the booth be configured in different layouts?

No. The EVT290S-Coulter is designed to assemble in one specified 10x20 booth configuration.

What clamps fit this truss?

Use 35 mm clamps only. Standard 50 mm clamps will not fit the EVT290S main chords.

Are CAD files available?

STEP and DWG files are available upon request.

Is engineering available?

An engineering report is available as a separate service and should be requested during purchase.

Need a reusable 10x20 truss exhibit?

Contact us for assembly support, graphics and lighting planning, additional EVT290S components, engineering, CAD files, and quantity pricing.

Contact Us Request a Quote
